Wallmount touch screen kit for PiZero

hwhardsoft
hwhardsoft
5 May 2020

I want to introduce my new touch screen kit for the PiZero. There are already many touchscreen extensions for the Raspberry Pi and Pi Zero, but often without an elegant housing for wall mounting and usually with larger screen diagonals and therefore not in the compact size of a light switch or thermostat. This makes the AZ-Touch Pi0 particularly suitable for small applications in the field of home automation, metering, monitoring, control and other typical IoT applications.

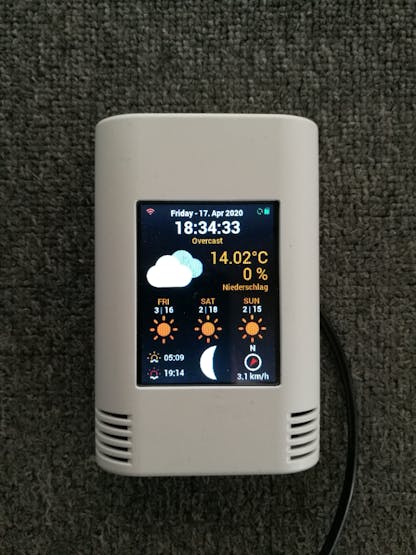

AZ-Touch Pi0 running weather stationAZ-Touch Pi0 running weather station

AZ-Touch Pi0 running keypad example



Features:

● top wall mounting enclosure

● 2,8 inch (7,11 cm) tft screen with 320 x 240 pixel resolution

● SPI display controller ILI9341

● Resitive touch with SPI touch controller XPT2046

● Integrated 5V/1.7A voltage regulator (Vin 9...35V DC)

● Integrated prototyping area

● 6-pin removable terminal block for prototyping area & power supply

● Marked and connected GPIO & power pins beside the proto area

● Integrated piezo beeper

● Plug-in positions for Raspberry Pi Zero

● Vented cover to allow through air flow



Code Excamples:

  • Weather station in Python3
  • Codelock / keypad in C
  • Sign in to reply

Top Comments

  • clem57
    clem57 over 3 years ago +1
    Nice product. What would this be in dollars and shipping to Texas, US?
  • hwhardsoft
    hwhardsoft over 2 years ago +1
    Hi, I've finished a tutorial how to run Xserver on AZ-Touch Pi:
  • dubbie
    dubbie over 2 years ago +1
    Harmut, A nicely packaged product. Dubbie
  • dubbie
    dubbie over 2 years ago

    Harmut,



    A nicely packaged product.



    Dubbie

    • Cancel
    • Vote Up +1 Vote Down
    • Sign in to reply
    • More
    • Cancel
  • hwhardsoft
    hwhardsoft over 2 years ago

    Hi, I've finished a tutorial how to run Xserver on AZ-Touch Pi:




    • Cancel
    • Vote Up +1 Vote Down
    • Sign in to reply
    • More
    • Cancel
  • DAB
    DAB over 3 years ago

    Looks nice.



    DAB

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • More
    • Cancel
  • hwhardsoft
    hwhardsoft over 3 years ago in reply to clem57

    The kit itself 44,99€. But because of several restrictions by DHL the transport from Germany to Texas is very expensive (44 € for a 5kg premium parcel) at the moment. If you can you should wait some weeks, the ususal shipping cost (outside Corona outbreak) is/was only 8,90€

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • More
    • Cancel
  • clem57
    clem57 over 3 years ago

    Nice product. What would this be in dollars and shipping to Texas, US?
