Agilent U1620A review

Former Member
Former Member over 13 years ago

Hi all,



I'll start my review as usual with the basic hands on and package content with some photos included, I will continue later on with more usage details etc.

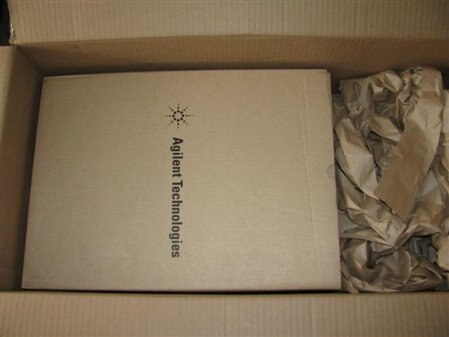

Here is the first view of the nicely packed box after it arrived.




I do always prefer to have the contents padded on each side but the package was marked fragile so it should be safe.






Next box image

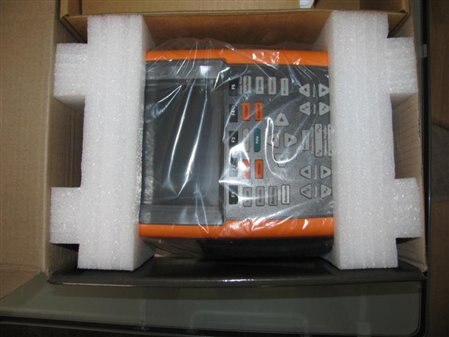

Product box itself opened, neatly packed and the meter is very well cushioned.

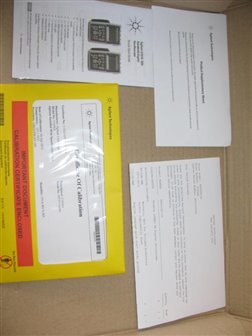

The paperwork, calibration certificate is included.

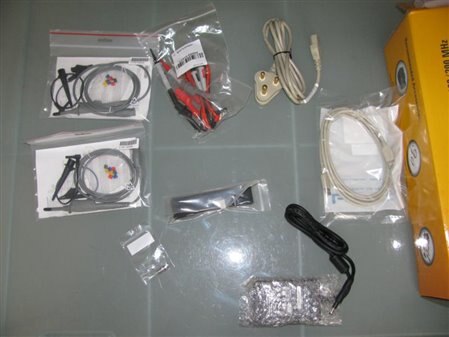

Overview of the rest of the box contents. The powercable is old UK/South Africa style if I'm not mistaken and not very usable here, but as it is a standard 3-prong cable that is not a problem.

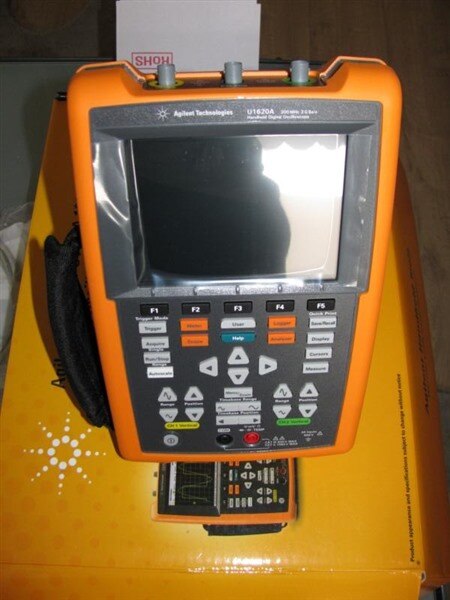

The heart of the box itself in it's comfortable cradle... First impression: It's bigger than I expected image

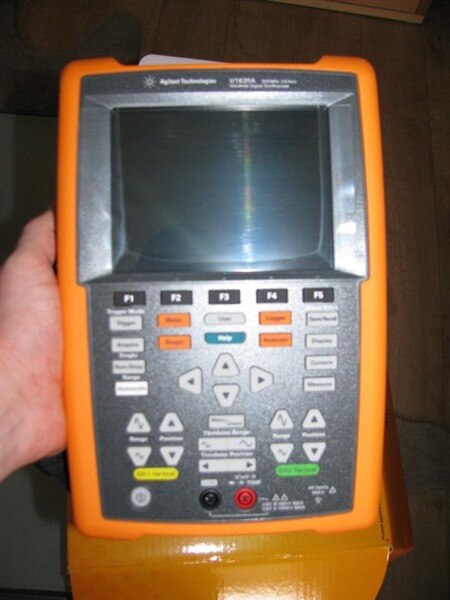

The meter on hand, the strap is quite comfortable.

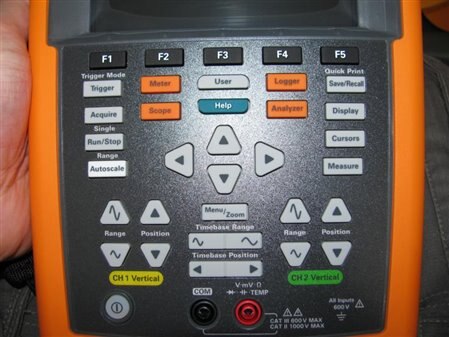

Look of the buttons, nicely placed, not too crowded. The buttons feel good, they can be pressed from any angle and work fine. Plus they make a comforting "click"-sound when pressed so you really feel that the button was actually pressed image

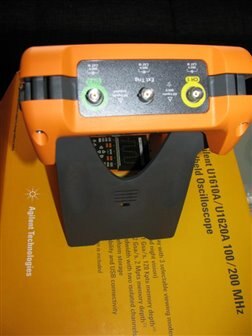

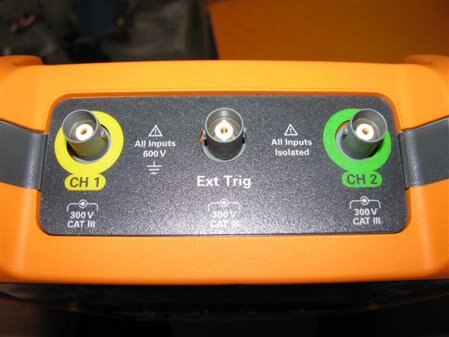

View of the top connectors, the trigger input is also used for calibrating the probes.

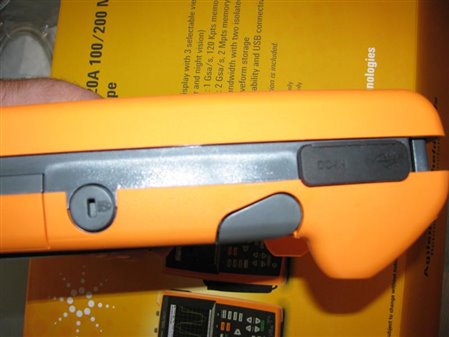

Side port cover and locking cable hole.

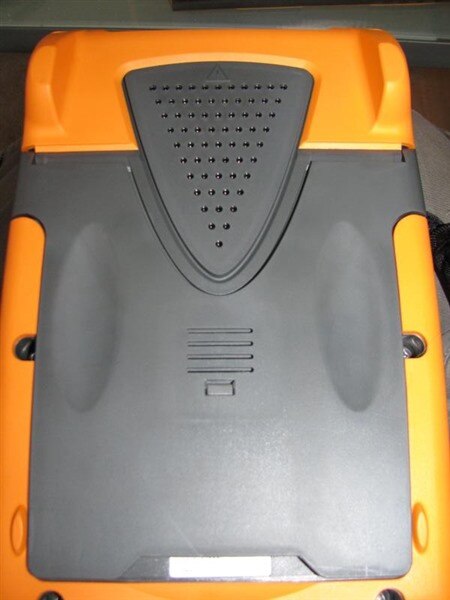

Rear of the meter

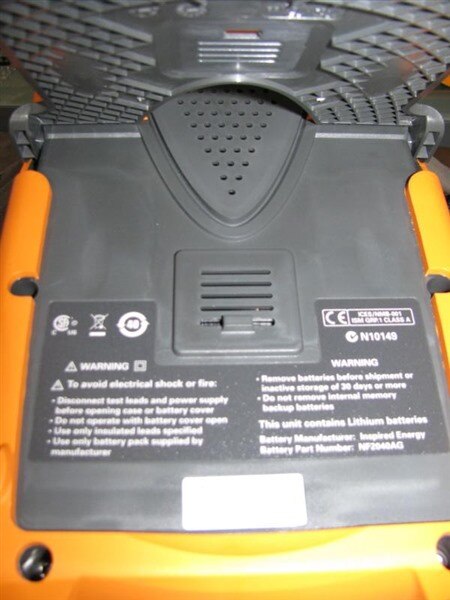

The rear of the meter with the stand "leg" out. The latch that holds the leg is quite stiff, the leg bent quite a lot until it lets go properly. Probably it will get looser in use.




The meter with the stand open. Sits in a good comfortable angle.




The view with the stand open.

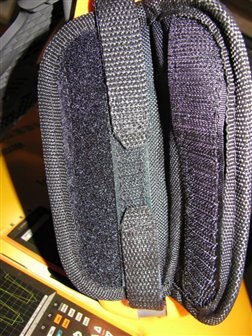

The hand-strap tightening system, easy to use for sure and well adjustable.

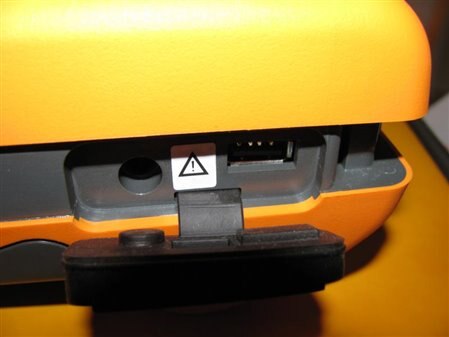

The side USB and power connectors under the cover, well protected by the thick rubber.

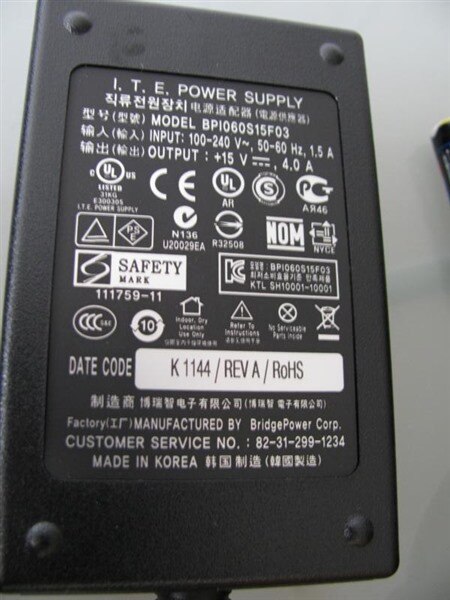

The power supply, hefty piece.

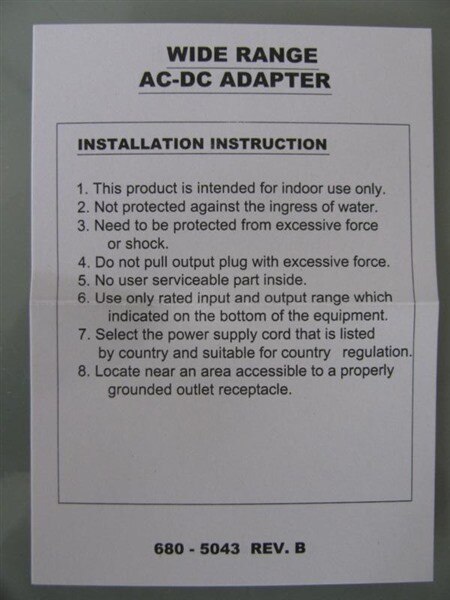

Instructions for the power supply image

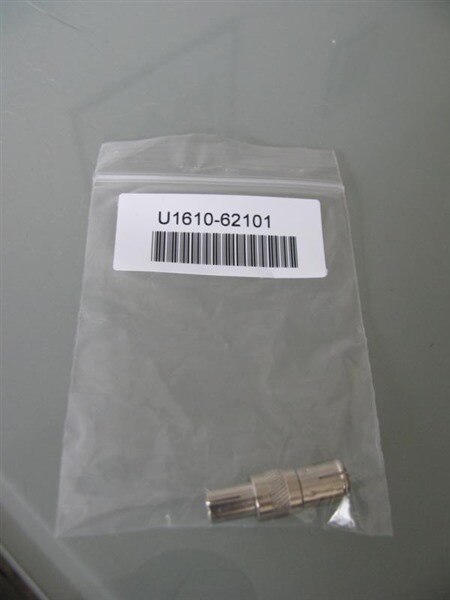

BNC to probe adapter for adjusting the probes.The thickness of the ground side is a bit too much for the ground alligator-clips of the probes so it easily slips off.

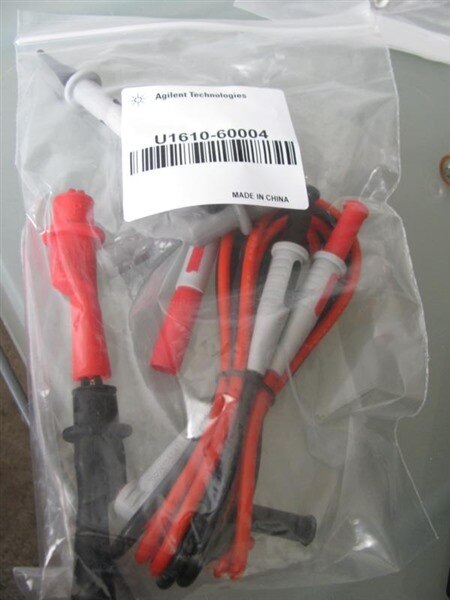

DMM side test leads

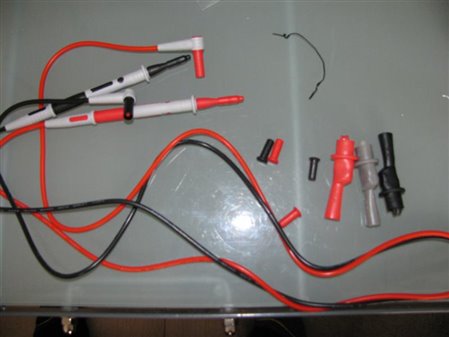

Package opened. Everything is plugged with good quality banana connectors and the wires are nice and flexible, good quality stuff.

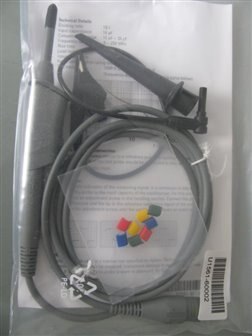

Two packs of 1:10 probes wer included.




Package opened, again very good quality.

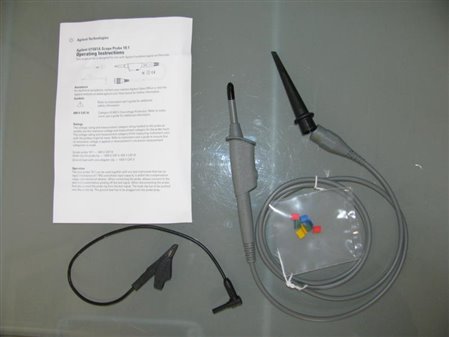

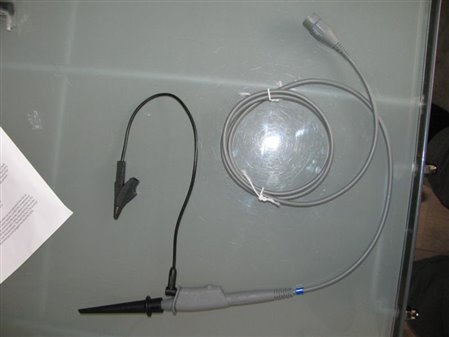

And parts put together.

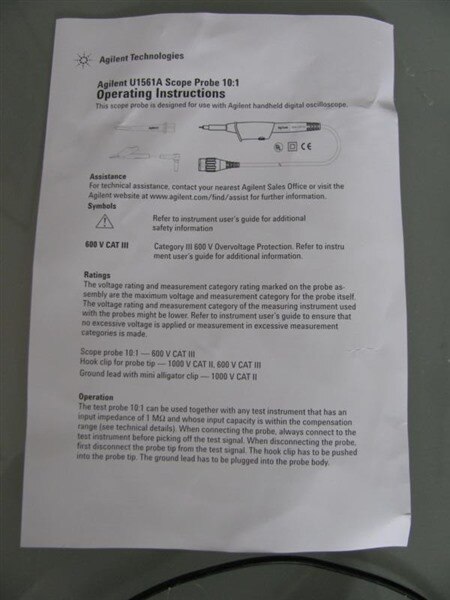

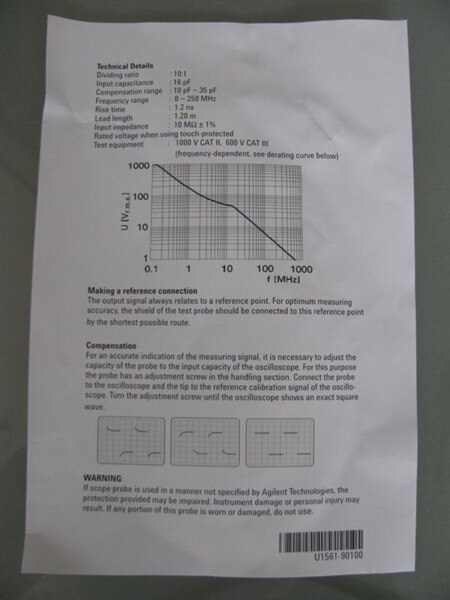

And paperwork of the probes, first side.




Second side.








Clip from the manual (http://cp.literature.agilent.com/litweb/pdf/U1610-90040.pdf):



Before using the handheld scope for the first time, fully charge the

battery for at least 5 hours, with the handheld scope turned off, using

the AC/DC adapter provided.

The power key will turn constant yellow when the battery is fully

charged.

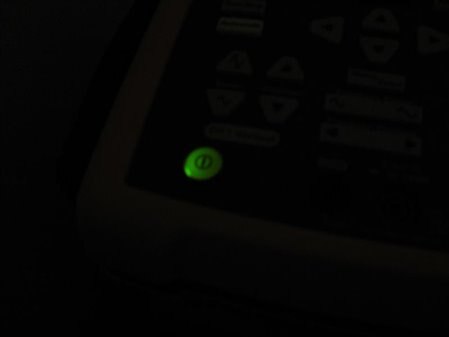

Looks quite green to me.










Ok that's the first part, more to follow of course with the actual usage part of the review.







Elias
