I just ordered a PICKIT 3. I now need help.

supper_slash
supper_slash over 9 years ago

I just ordered a pickit 3 and a chip designer board.

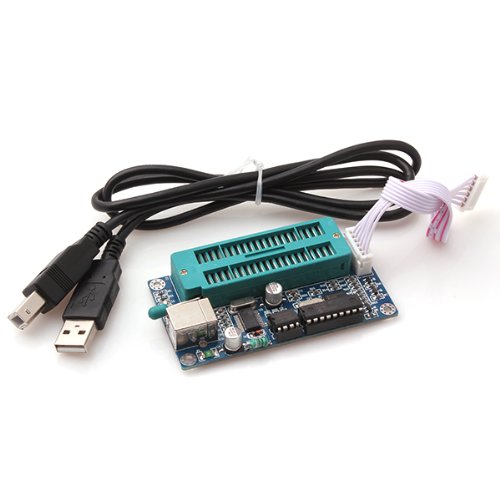

My designer board.PICKIT 3



Now what I decided to do is get things ready.  First, What software do I need to download?

I thinkI need the "PMLAB XC" software, but I am not sure. I am using WIN 10.



CHIPS.

Oh man.image



I have no idea what chips I need to order. Iknow I will want 16+ pins, but I do not wish to order anything that is not programmable with the PK3.

How can I figure out what I need to get? I am looking to something very versatile to learn with.

The DEV board can handle up to 40 pin (I think), And I am not opposed to ordering some, but again, I have no clue as to where to look to.

But I wanted to order something so when I get the PK3 I won't need to wait.



Lastly, I need advice on any books or sites to get/look at for a very new PK3 User.





REVIEW:

  1. What chips would you recommend me starting off with? (16or more pins to have plenty of options please, (I can go to a smaller more production chip later))
  2. What programs do I need to install, as far as anything free?
  3. What references would you recommend? (books, etc)

Thank you in advance.

  • Sign in to reply
  • Cancel

Top Replies

  • MicrochipRTCfr
    MicrochipRTCfr over 9 years ago +1 verified
    Hi, What you ordered is a copy of the original Pickit3...Hopefully it works. You can download MPLABX here : http://www.microchip.com/mplab You can download Microchip free compilers here : http://www.microchip…
  • MicrochipRTCfr
    0 MicrochipRTCfr over 9 years ago

    Hi,



    What you ordered is a copy of the original Pickit3...Hopefully it works.

    You can download MPLABX here : http://www.microchip.com/mplab

    You can download Microchip free compilers here : http://www.microchip.com/compilers

    To get started, I recommend you use Microchip Developer Help website which has tutorials, on-line trainings, live-online trainings : Training - Developer Help

    In some countries there are also training centers and regularly scheduled trainings : http://www.microchip.com/RTC



    Regards

    • Cancel
    • Vote Up +1 Vote Down
    • Sign in to reply
    • Reject Answer
    • Cancel
  • supper_slash
    0 supper_slash over 9 years ago in reply to MicrochipRTCfr

    Thank you.

    I was wondering how you know that the pickit 3 is a knock off?

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Verify Answer
    • Cancel
  • jc2048
    0 jc2048 over 9 years ago in reply to supper_slash

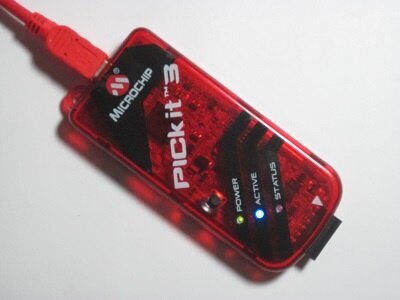

    This is what mine looks like. You can probably spot the differences with the one you show.
