Tech First Kit-OLIMEX-TMS320-P28016-MCU-Dev Kit

  • Overview
  • Kit Contents
  • Key Features
  • Ordering Information
  • Documents







Overview





TMS320F28016 is known to be the world's lowest cost 32-bit Real Time Microcontroller (DSP) with build in CAN and cost only US $3.60 / 1000 pcs quantity. This is very good bargain for 32-bit core running at 60 Mhz, delivering 60 MMACS, 32KB Flash, 12 KB RAM, 8 channel PWM 6 of them with enhanced resolution of 150 ps(!), 2 x 8 channels 3.75 MPSP 12-bit ADCs, CAN, RS232, SPI, I2C.



Kit Contents





  • TMS320F28016 development board
  • TMS320F28016 microcontroller



    Key FeaturesBack to Top





    • MCU: TMS320F28016 32KB Flash, 12 KB RAM, 3.75 MPSP 2 x 8 channel ADCs, 8 PWM, CAN, SPI, RS232, I2C
    • JTAG connector
    • USB-to-RS232 convertor allow easy to power board and to connect to notebooks and decent computers without RS232 port
    • CAN driver and connector
    • UEXT connector with SPI, RS232, I2C for connection to other Olimex modules as MOD-NRF24Lx, MOD-MP3, etc
    • MOTOR control connector (for add on modules with ADC, PWM, Interrupt signals available)
    • User button
    • Trimmer potentiometer connected to Analog input
    • Power supply LED
    • User status LED
    • RST button
    • External power supply jack for AC or DC power supply
    • Voltage regulator + power supply filtering capacitor
    • Extension headers for each uC pin
    • Prototype area with 0.1" step, Vcc + GND bus
    • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
    • Dimensions: 100x80 mm (3.9x3.15")



          Ordering InformationBack to Top



          Products



          Supplier
          Part Number

          OLIMEX

          TMS320-P28016TMS320-P28016



          Associated Products



          Supplier
          Description
          Part Number

          Texas Instruments

          DSP, C2000, 16K X 16 FLASH, LQFP100

          TMS320F28016PZQTMS320F28016PZQ

          ROTH

          SMT Device Adapter. SMD, FR4, 24-144PIN

          RE471RE471



          Similar Products



          SupplierDescriptionSupport DevicePart Number

          Texas Instruments

          KIT, STARTER, EZ-DSP, F2812

          TMS320F28016

          TMDSEZD2812TMDSEZD2812



          Document ListBack to Top



          Datasheet



          Part Number
          Description
          Size

          TMS320-P28016

          TMS320-P28016 users manual

          910KB



          Application Notes



          File Name
          Size

          Code Composer Studio tutorial how to use TMS320-P28016 board

          153KB

          Flash programming on TMS320-P28016

          574KB

          Running an Application from Internal Flash Memory on the TMS320F28xx DSP (Rev. H)

          153KB

          Spread-Frequency Shift Keying Power Line Modem Software Architecture

          122KB

          Using Enhanced Pulse Width Modulator (ePWM) Module for 0-100% Duty Cycle Control

          71.3KB

          Flash Programming Solutions for the TMS320F28xxx DSCs

          1.5MB

          Optimizing Digital Motor Control Libraries

          72.9KB

          Configuring the TMS320F280x DSP as an I2C Processor

          375KB

          Interfacing SD/MMC Cards With TMS320F28xxx DSCs

          256KB



          Hardware & Software



          File Name
          Size

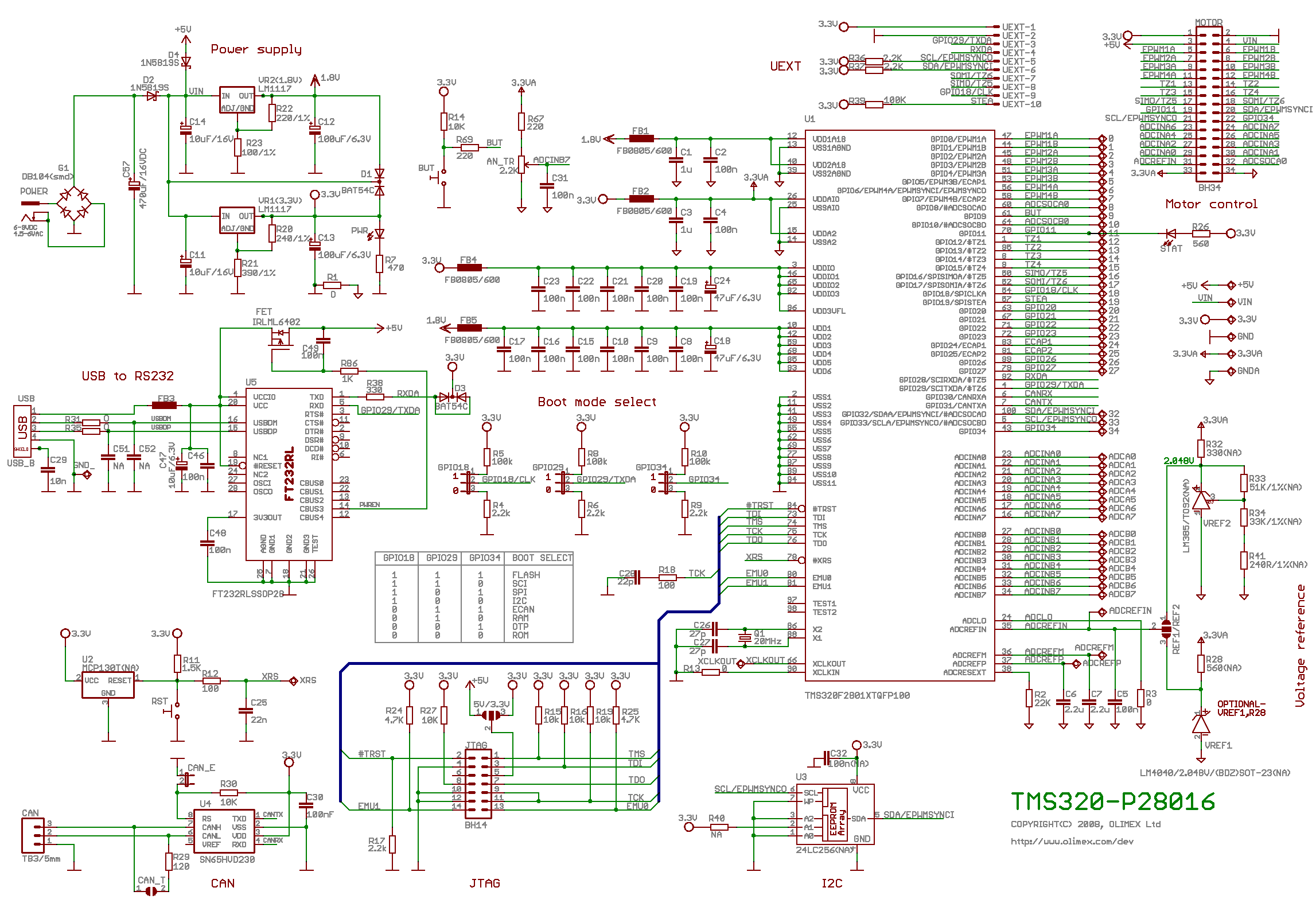

          TMS320-P28016 Rev. A schematic

          64KB

          Blink LED C Source and CCS project files

          63.7KB

          RS232 echo back C Source and CCS project files

          153KB

          ADC read C source and CCS project files

          122KB

          Flash programming blink LED

          71.3KB
