Question

Hi,

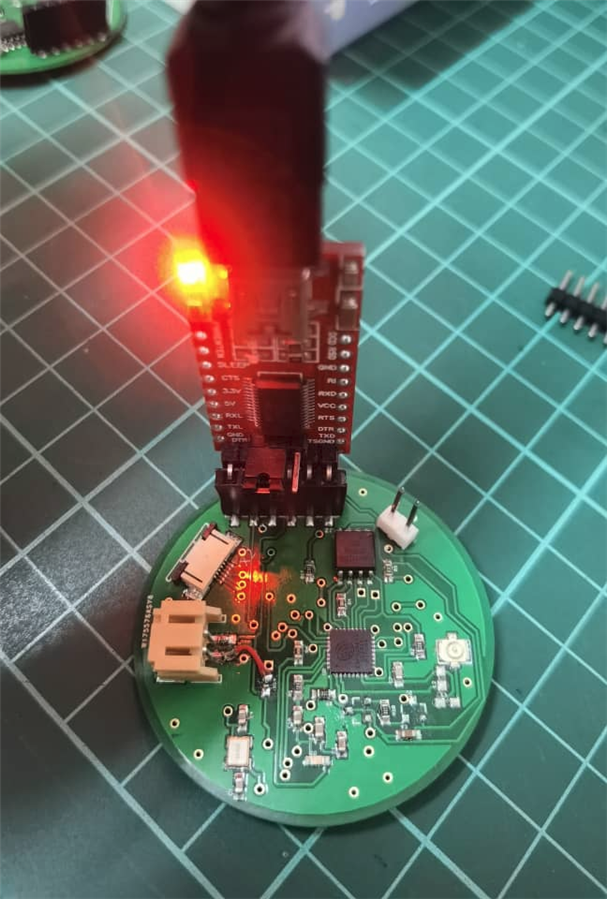

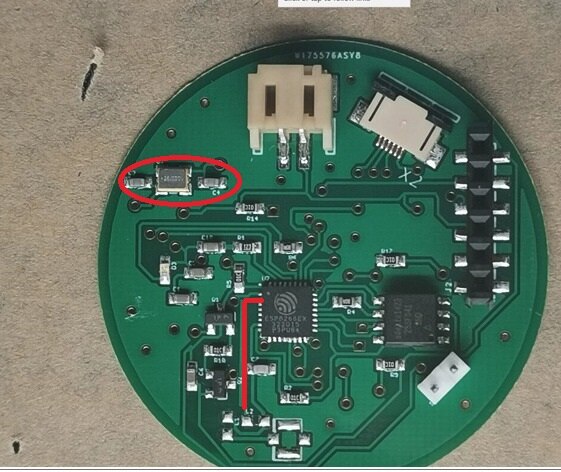

Recently I have designed an ESP8266 board for a project. The PCB material is the roger board. Currently, i am facing difficulties to detect the board. For the communication, i am using the FTDI. The picture below is the PCB board. Appreciate the help from the members to help solve the issue.

Thank you.

dougw · Answer

Have you verified that all signals are connected to the correct pins with a continuity check?

Have you looked at and traced the serial signals from source to receiver with a scope?

Do you have test software/firmware that continuously tries to send signals both ways so you can see valid signal data on all connections and pins?
