Bluetooth Stereo Module Audio Transceiver

I've got this module :

http://www.eachbuyer.com/bluetooth-blk-md-spk-b-stereo-module-audio-transceiver-p37913.html?currency=EUR&utm_source=google&utm_medium=CSE&utm_content=[Elettronica+di+consumo]&utm_campaign=[PLA]Italy%28IT%29&gclid=CI-n2ZPKmMACFcISwwodrIQAbg

googling I have found many schematics each with a different pin denomination/description. Since I want to make a breakout board with all the buttons, leds and other stuff I need help in finding the correct schematics and deciding which components (resistors capacitors etc) are to be bought and where those are to be soldered.

Can anyone please help me ?

Thanks

0 vsluiter over 11 years ago

To be honest: you bought a module without datasheet, which is something you should avoid. Your vendor should provide you with the right connection details, ask your vendor first.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Former Member over 11 years ago in reply to vsluiter

didn't knew that it would come without a datasheet and I asked (no reply). I thought you might help me .
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 mudz over 11 years ago

Greetings,
Here you go: ElecFreaks - Wiki
You will find everything about that module there.

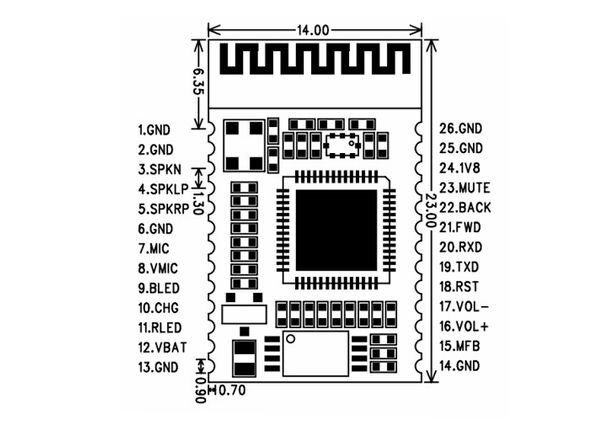

Here is the image provided on the same link page:
Hope this helps!!

Good Luck
