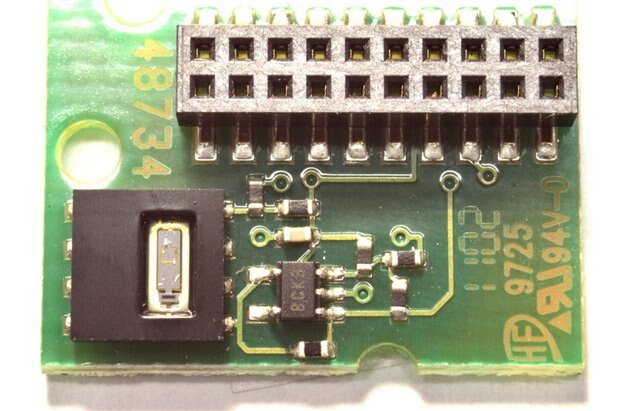

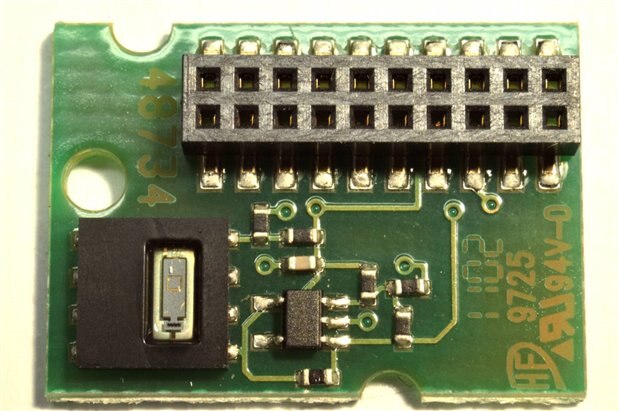

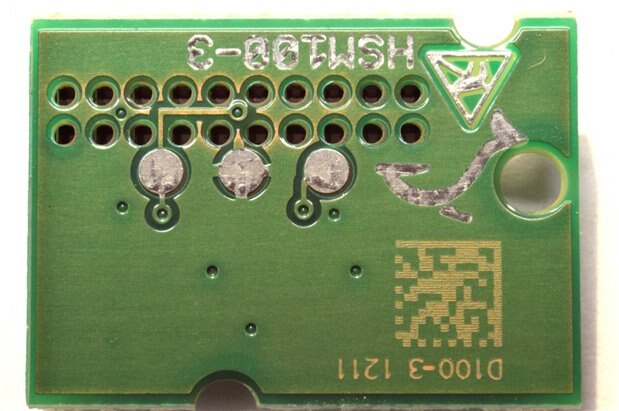

Do any one have HSM100 humidity sensor schematic...? I need it for understand how my other analog sensor will talk with STM330 temperature sensor. I have tried to find it on enocean website but no luck... I have tried to get rough idea about hsm100 schematic using pics...but all pics available on internet is with bottom side..but no image from top..
Note: I do not require HSM100 for my project but I just need Schematic of HSM100 to build my custom analog sensor...

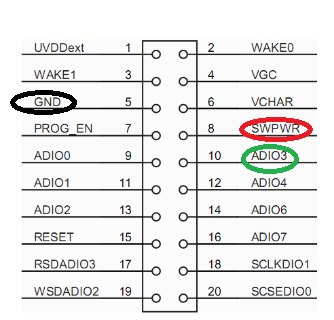

What I know from STM330 user manual is..
SWPWR is VCC and only available when module not in deep sleep
GND is ground for HSM100
ADIO3 is Analog input from HSM100
Other pins ---I have no idea
may bebryan.edelman@enocean.com can you please help me in this matter...?
