AirMobile - 21 - The board

amgalbu

26 Jan 2015

Finally I (almost) completed the AirMobile sensor board

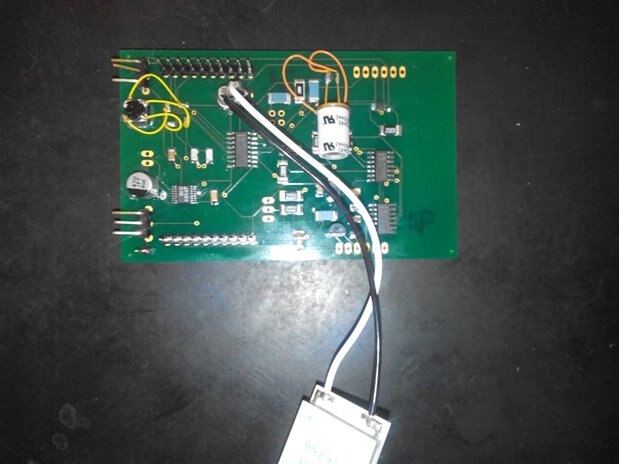

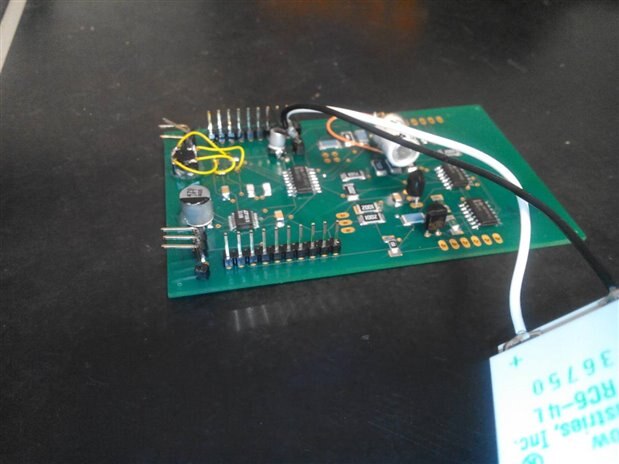

Here it is

If you think it's awful, I agree with you... I made too many mistakes, but component's bottom views always confuse me.

Anyway, to complete the board I have to

mount the MiCS2710 sensor
mount the Bluetooth module

The next step is to test the power supply section...
