Dust, Temperature and Humidity Monitor Chapter 7

16 Dec 2014

(Best view 1920 x 1200)

This chapter only discuss about PCB design and PCB prototype. Sorry guys have a bad cough and fever this weeks.

Get an 4 days MC.

PCB:

Look like I need to have 2 design PCB for this project for now. Fan have a big internal cutout that may disturb the routing.

This issue can easily fix if I just use one sensor for each hardware. For now still plan for two.

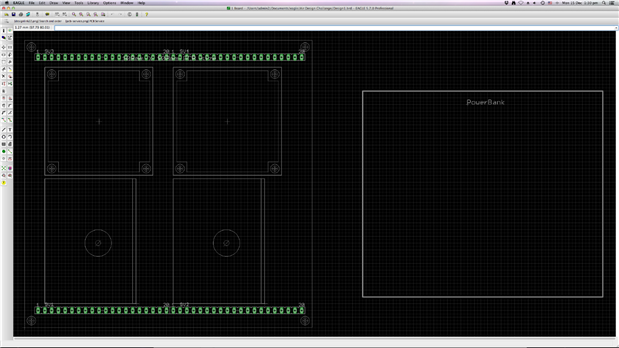

Attached picture show the fan and dust sensor design PCB.

PCB Prototype:

For PCB prototype, I have make an example PCB to make sure the fan and dust sensor design is correct.

I maybe will just use the prototype PCB for fan and dust sensor PCB and same go to power bank PCB because there is not much design involve

Just create some video clip to share with other on how the PCB prototype making. https://www.youtube.com/watch?v=QU7ednCkkf8

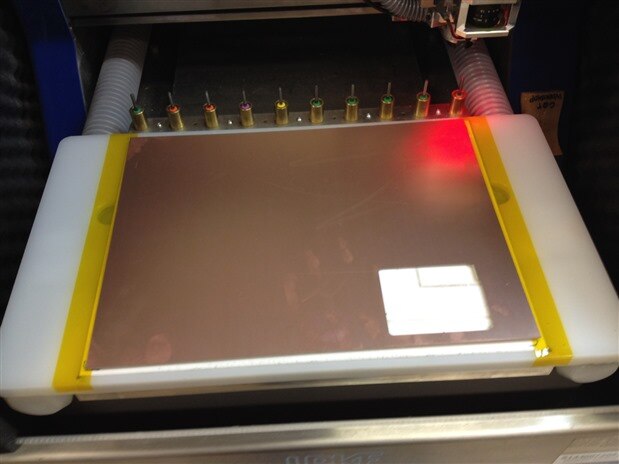

Attached picture show the prototype PCB preparation

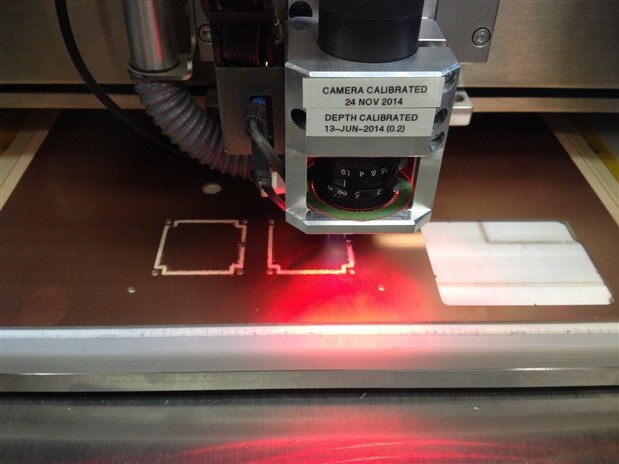

Attached picture show the prototype PCB cutting process

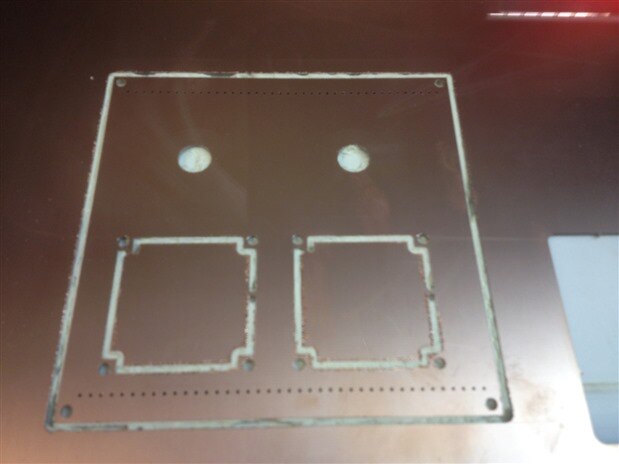

Attached picture show the prototype PCB end process

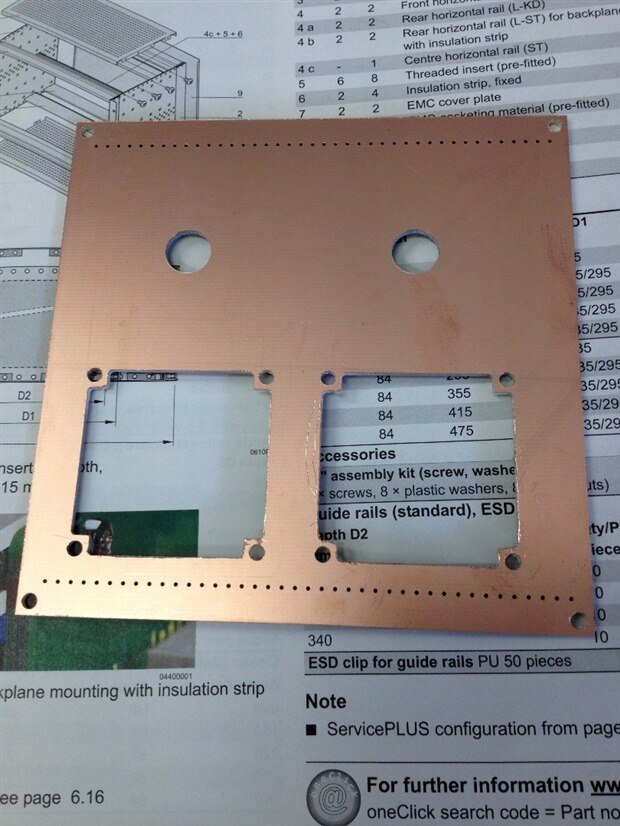

Attached picture show the finishing prototype PCB

Power bank:

Getting some power bank for this project. The power bank is use to power up the BBB or CC3200 and other component in the device.

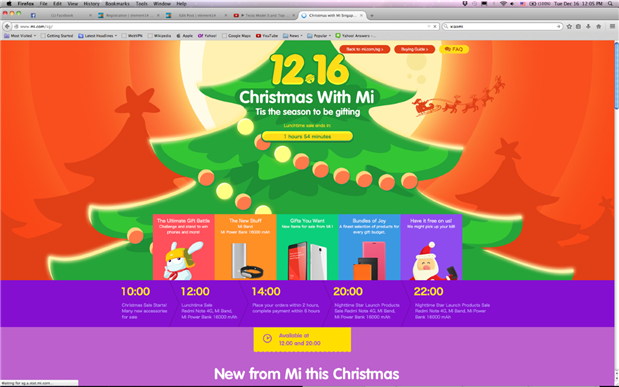

Today joint the Christmas sale to get the power bank

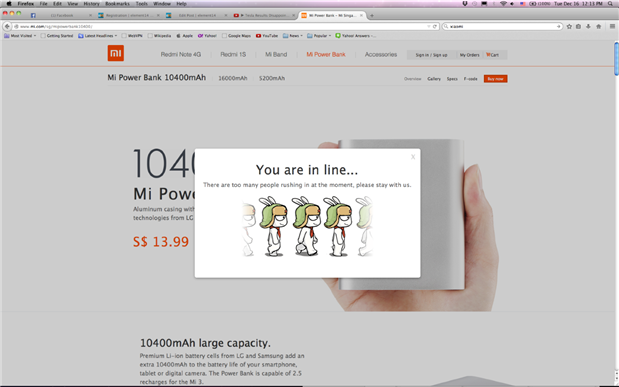

In the Q for few minute thinking that not going to make it

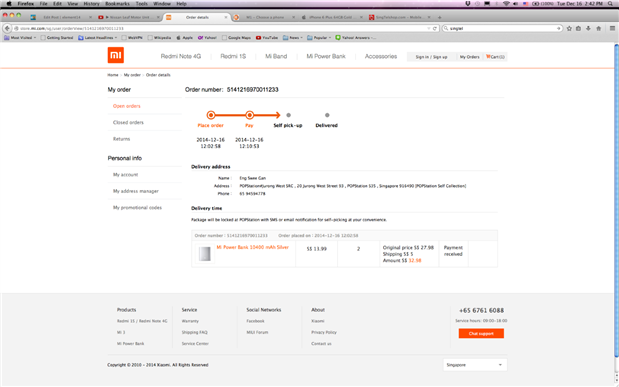

But today quite lucky, fast enough to order 2pc xiaomi power bank for this project

Sharing:

Just share some informative video about Nissan leaf battery.

Coming soon
