很高興這禮拜終於收到了參賽套件。下面是開箱圖與零件介紹
外箱
BeagleBone Black Rev 3*BeagleBone Black Rev 3*
Adafruit Proto CapeAdafruit Proto Cape

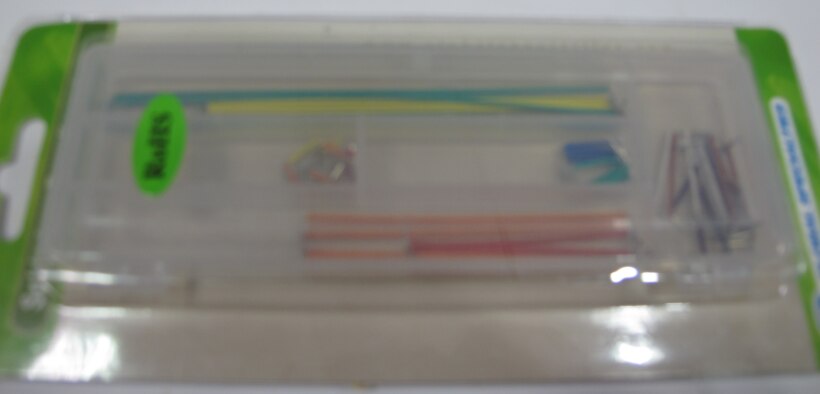

GLOBAL SPECIALTIES WK-3 70 JUMPER ASSORTMENT KITGLOBAL SPECIALTIES WK-3 70 JUMPER ASSORTMENT KIT

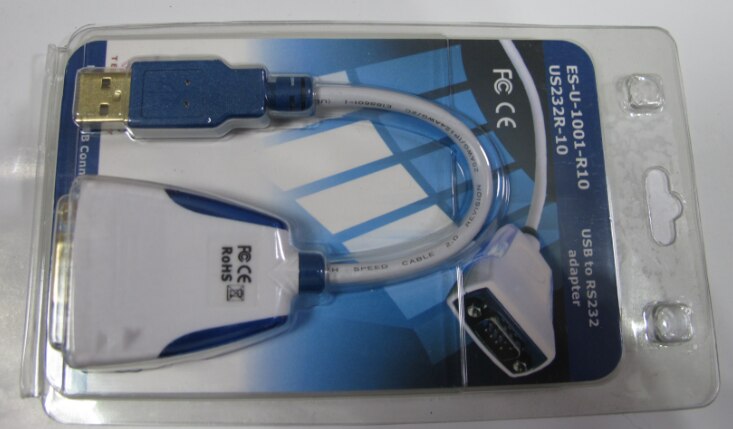

FTDI; US232R-10-BST; CABLE ASSEMBLY, USB TO SERIAL, 10CMFTDI; US232R-10-BST; CABLE ASSEMBLY, USB TO SERIAL, 10CM

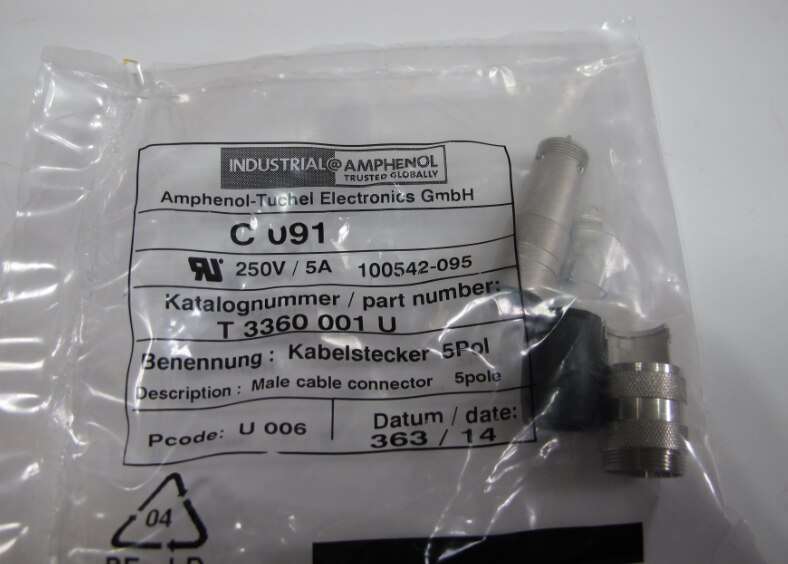

T3360-001 Circular ConnectorT3360-001 Circular Connector
大袋裝裡面有

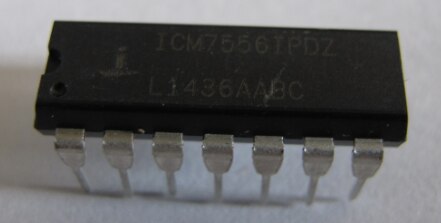

INTERSIL ICM7556IPDZ IC, TIMER DUAL CMOS, 7556, DIP14INTERSIL ICM7556IPDZ IC, TIMER DUAL CMOS, 7556, DIP14

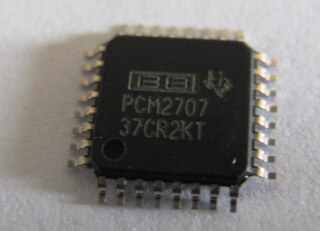

TEXAS INSTRUMENTS PCM2707PJT Digital to Analogue Converter, 16 bit, 48 kSPS, Serial, -300mV to 6.5V, TQFP, 32TEXAS INSTRUMENTS PCM2707PJT Digital to Analogue Converter, 16 bit, 48 kSPS, Serial, -300mV to 6.5V, TQFP, 32
MAXIM INTEGRATED PRODUCTS ICM7555ISA+T TIMER, 500KHZ, 18V, NSOIC-8MAXIM INTEGRATED PRODUCTS ICM7555ISA+T TIMER, 500KHZ, 18V, NSOIC-8
AD5440YRUZAD5440YRUZ

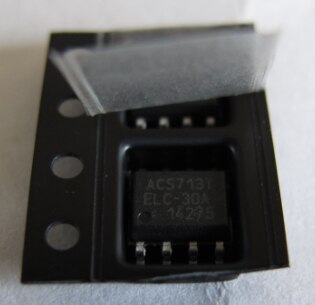

ACS713ELCTR-30A-TACS713ELCTR-30A-T

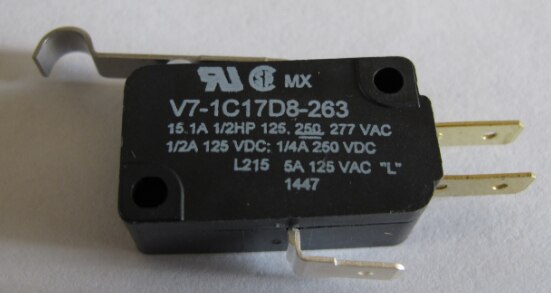

V7-1C17D8-263 MicroswitchV7-1C17D8-263 Microswitch
Piezo transducer 看不出來哪一家

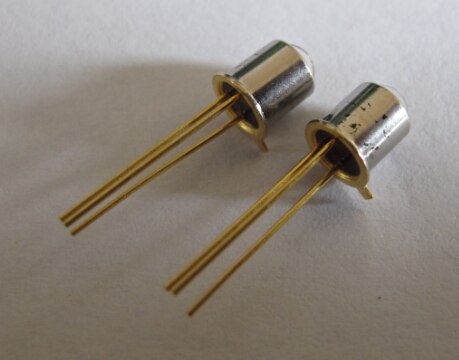

OPL810 PHOTODIODEOPL810 PHOTODIODE
可惜對照KIT list缺少了
- 1 Year License of ECAD-MCAD Design Suite: Autodesk Fusion 360, ,
- TI Inductance sensor Eval board
- ADC Board
- Speaker 50 ohms
