Homemade Electric Guitar

dwinhold
dwinhold
6 May 2018

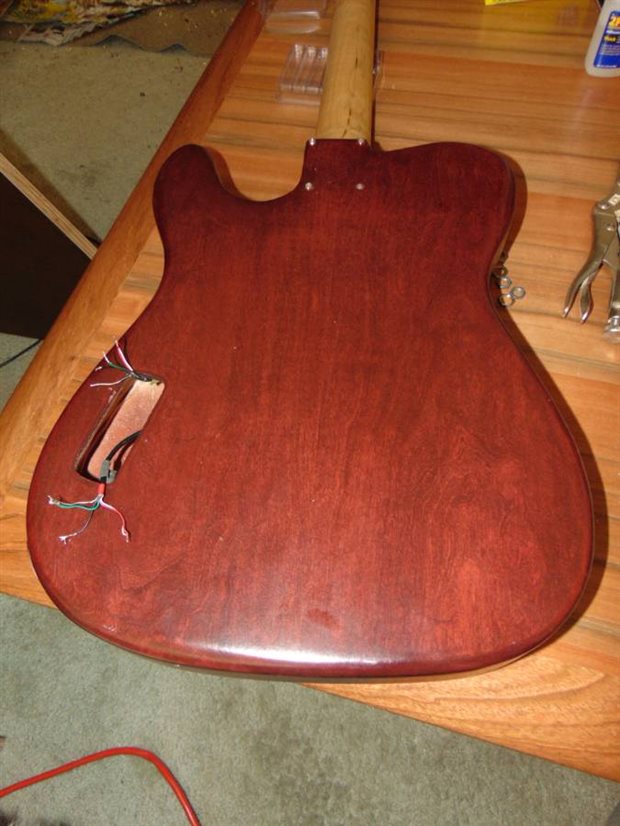

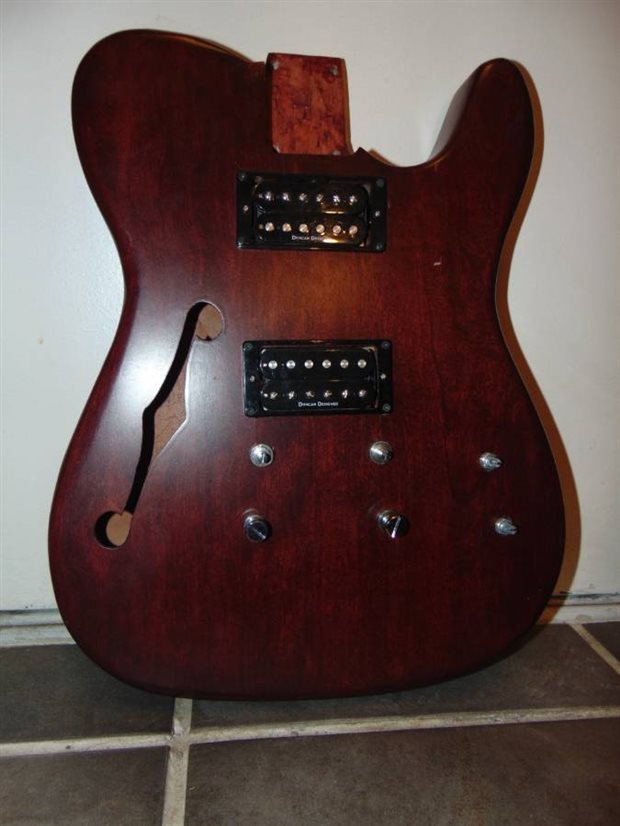

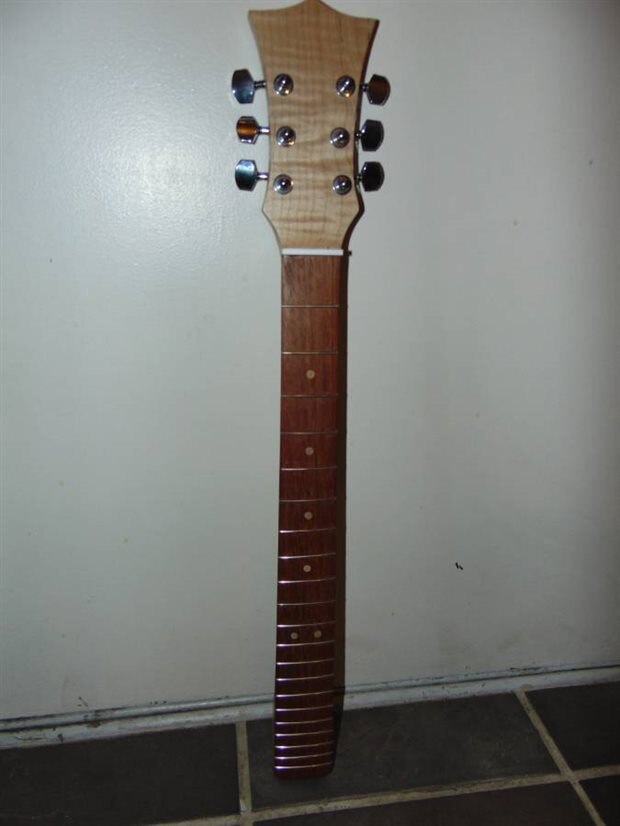

When this Project14 challenge came up I knew exactly what I would submit. I have been working on this electric guitar for a few months now and just finished it up. I made everything except for the pickups, that is my next step in my instrument making. I always do my own wiring for the guitars. The guitar body, neck and fret board was all hand built by myself. I created this semi-hollow body guitar from solid figured cherry and figured maple. The maple is the neck and the cherry is the body. I did the staining and finishing as well. The electronics themselves as you can see is fairly easy but has great results!!

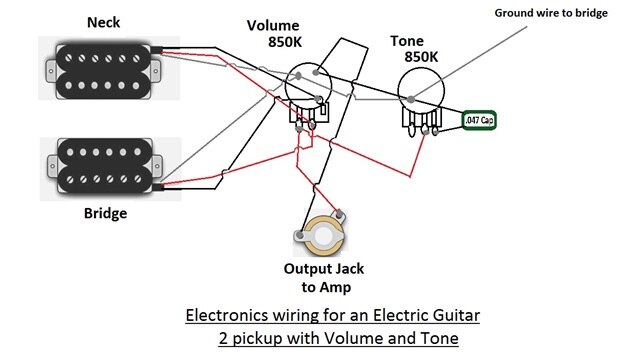

Electronic Schematic:

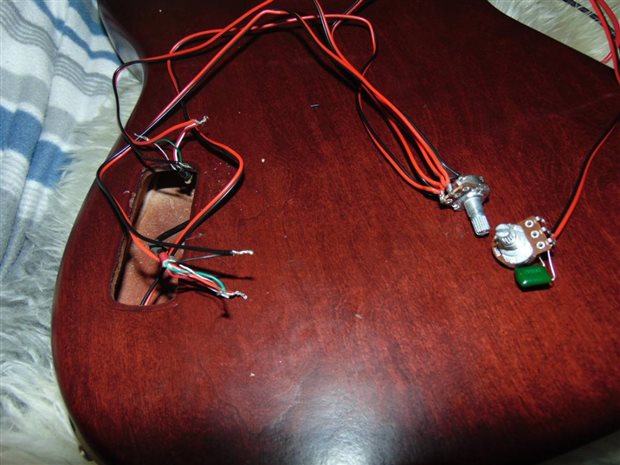

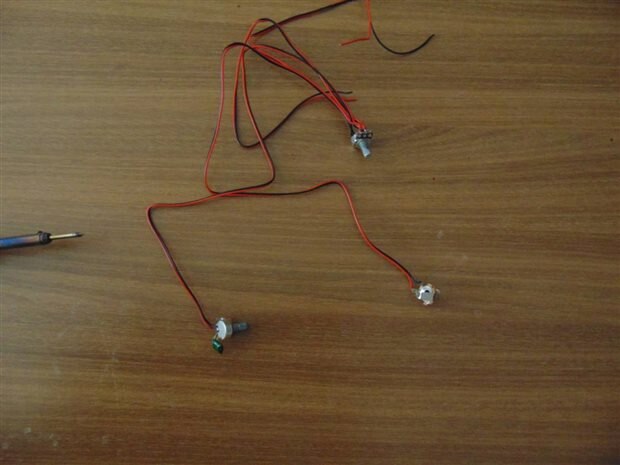

Making of the electronics:




















And finally the end result, the working guitar. (Sorry for it being dark as well not knowing how to play the guitar)



You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview



Hope you enjoyed!!



Any questions please ask.



Dale Winhold
