XRF16 Gen2 SOM

Welcome to XRF16 Gen2 SOM

The Avnet XRF16

RFSoC System-on-Module features the AMD Xilinx Zynq

UltraScale+

RFSoC Gen2, and is designed for integration into RF systems demanding small footprint, low power, and real-time processing. Proof-of-concept and application development can be jumpstarted with the XRF16 Carrier Card and Avalon

software suite.

Support Forum

Technical Specification

The Avnet XRF16 RFSoC System-on-Module is designed for integration into deployed RF systems demanding small footprint, low power, and real-time processing. The XRF16 features the AMD Xilinx Zynq UltraScale+ RFSoC Gen2, with 16 RF-ADC, 16 RF-DAC channels, and 5GHz RF bandwidth.

Combine the production-ready XRF16 module with the XRF16 Carrier Card and Avalon software suite to jumpstart proof-of-concept and application development. Then deploy your system with the same XRF16 module used for proof-of-concept. Example code and tutorials demonstrate AMD Xilinx RFSoC multi-tile sync (multi-converter sync) and multi-board synchronized analog capture. Product Brief (Datasheet)

Click on the images to enlarge

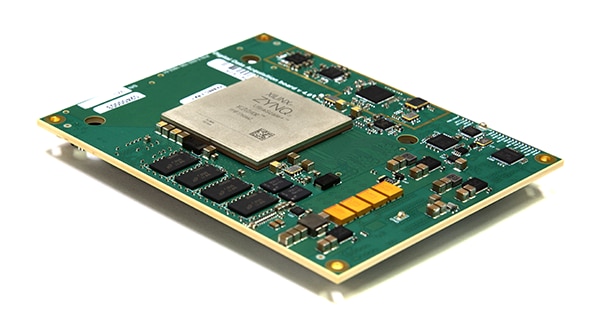

SOM Side View

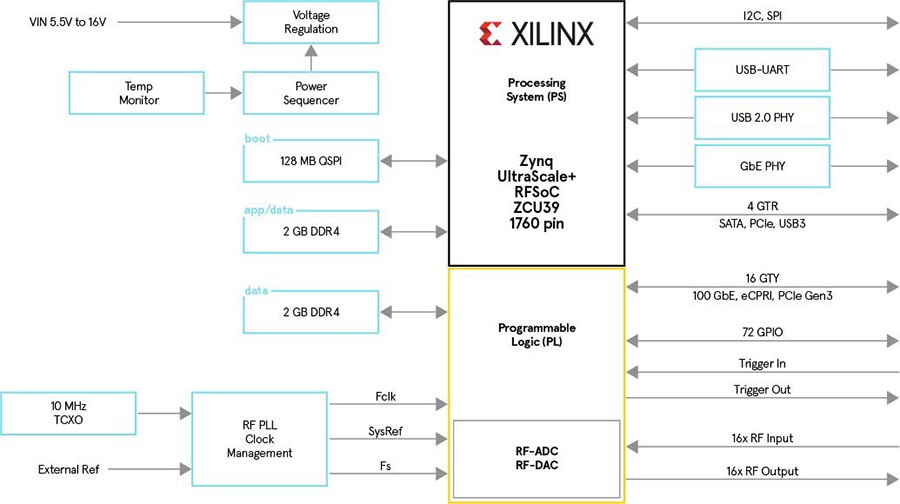

SOM Block Diagram

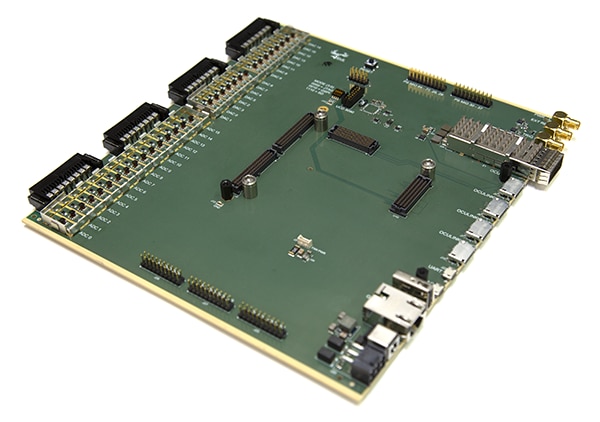

Carrier Card

Carrier Block Diagram

Target Applications

Phased Array Radar
5G Massive MIMO
Hybrid Beamforming
Signal Detection & Jamming
Medical Imaging
Multi-Channel RF Instrumentation

Kit Includes

XRF16 System-on-Module
Avalon software

Hardware Specification

Specification	Description
AMD Xilinx Zynq UltraScale+ Gen2 ZU39DR RFSoC	16x ADCs, 12-bit up to 2.220 GSPS 16x DACs, 14-bit up to 6.554 GSPS Quad-core Arm Cortex-A53 processing subsystem 1 GbE, PCIe Gen1/2, SATA, USB2/3 UltraScale+ programmable logic
High-Speed Data Transfer	16x ultra-fast AMD Xilinx GTY serial transceivers Quad Mesh firmware combines AMD Xilinx Aurora protocol with GTY transceivers to
Memory	4GB DDR4 @ Programmable Logic 4GB DDR4 @ Processor Subsystem 32GB eMMC persistent storage 128MB QSPI boot storage
Stream data with four peers, facilitating tiling in high performance real-time systems
Clocks & Synchronization	Ultra-low jitter programmable sampling clocks External or onboard 10 MHz reference clock Phase coherent synchronous sampling across all converters & multiple boards
System	4'' x 5'' footprint 5.5V to 16V input Temperature monitor Industrial temperature rated Air and conduction cooling options
