We designed embedded boards: the EagleSoC Development Board and the EagleSoC Mini Board. Both of them are based on the Cypress 32-bit ARM Cortex-M3 PSoC 5LP chip. We also created an EagleSoC Programmer, which is a low-cost solution for programming and debugging PSoC 5LP boards.Our plan is to start a KickStarter campaign and we wanted to hear your feedback.

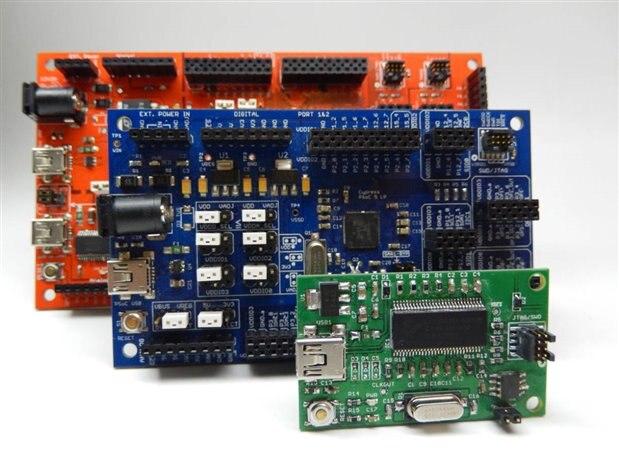

Here you can see technical details of the EagleSoC board and a picture of all three boards together. If you are interested, please feel free to check out www.ezpsoc.com and www.robotsoc.net for more information.
Technical Details for EagleSoC Development Board
- Processor: Cypress PSoC 5LP (32-bit ARM
Cortex
-M3) up to 80MHz - Mixed-Signal Designs: Analog and digital pins are separated into different sections
- Supported Voltages: 5.5V, 3.3V and adjustable voltage for VDD, VDDD, VDDA, and VDDIO0~3
- Maximum Current: Supports up to 3A in 3.3V and 5V
- FTDI USB-to-Serial Interface: Supports 3.3V and 5V I/O
- Program Debugging: SWD and TRACE ports
- External Crystal Oscillators: 24MHz, 32.768KHz, and 1 slot for user-defined oscillator
- LCD Display Connector: Supports 3.3V and 5V LCD display module
- LCD Backlight: Controlled by P6[7] or hardware jumper
- Layout Organization: Grouped OpAmp, SIO, and I2C Connections
- Dimensions: 75mm×135mm
