Introduction

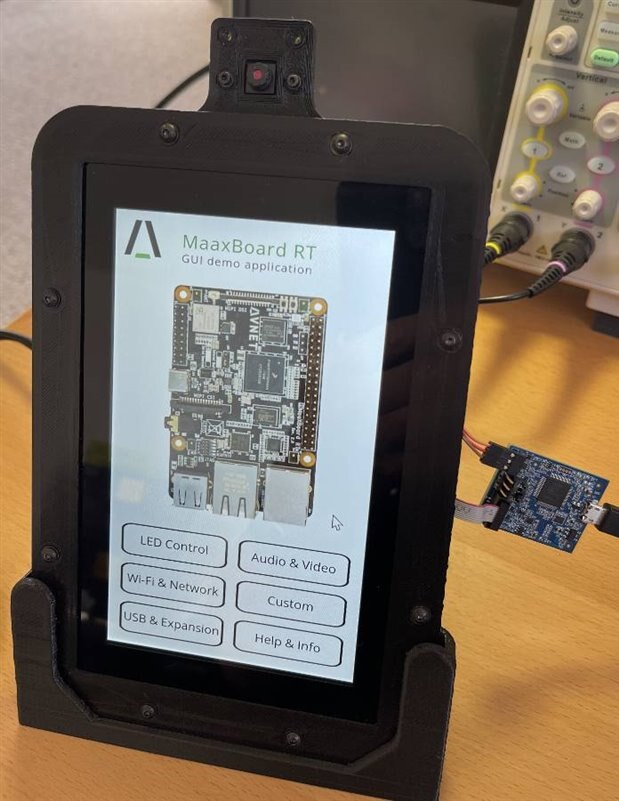

I recently designed a frame and stand for the Avnet MaaXBoard MIPI LCD touch display

There were 3 main design goals . . .

1. Provide some level of protection for the LCD display
   1. Frame can lay with the screen down and screen will not touch surface
2. Provide stands for both portrait and landscape modes
   1. Frame can be lifted from stand
3. Provide optional MaaXBoard MIPI CSI Camera mounts (one for each orientation)

If your are not already familiar with MaaXBoard RT, this is the latest member in the series of Raspberry Pi form-factor NXP i.MX based “MaaXBoard” Single Board Computer (SBC) boards from Avnet. The NXP RT1176 crossover device on this unique board includes 1GHz Arm Cortex-M7 and 400 MHz Cortex M4 cores with 2MB of high-speed on-chip memory, which together enable extremely low-latency, real time operation. Seen as a crossover device, it also features application processor-type functionality with features such as 2D GPU and graphics accelerator, support for MIPI CSI camera and MIPI DSI display, multiple Ethernet interfaces, advanced audio processing enablement, etc.

Links

• LCD Display buy link
• Camera buy link
• Thingaverse.com link to the *.stl files

For more information on MaaXBoard RT, please visit the following pages:

• MaaXBoard RT Intro Webinar (Link to view the on-demand recording)
• MaaXBoard RT Intro Webinar Slides

MaaXBoard RT Product Page

• https://avnet.me/maaxboard-rt

MaaXBoard RT Purchase Page

• https://avnet.me/maaxboard-rt-buy

Parts to Print

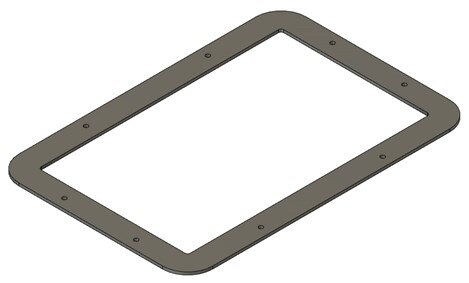

• Front Bezel (Required for all assemblies)

• • Use M3 screws and nuts to capture display between front and back bezels

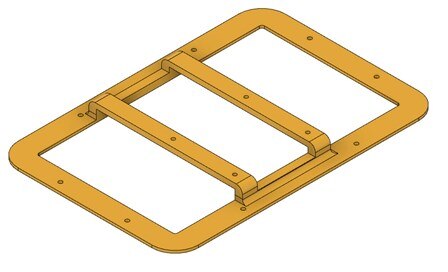

• Back Bezel Board Mount (option 1 of 2)
  • Includes a mount for the MaaXBoard
  • Insert low profile M3 screws from the LCD side of the MaaXBoard mount and use nuts to hold the MaaXBoard to the mount
  • When printing use supports under mounting frames

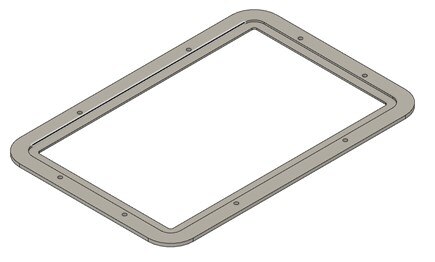

• Back Bezel (Option 2 of 2)
  • Does not include a mount for the MaaXBoard

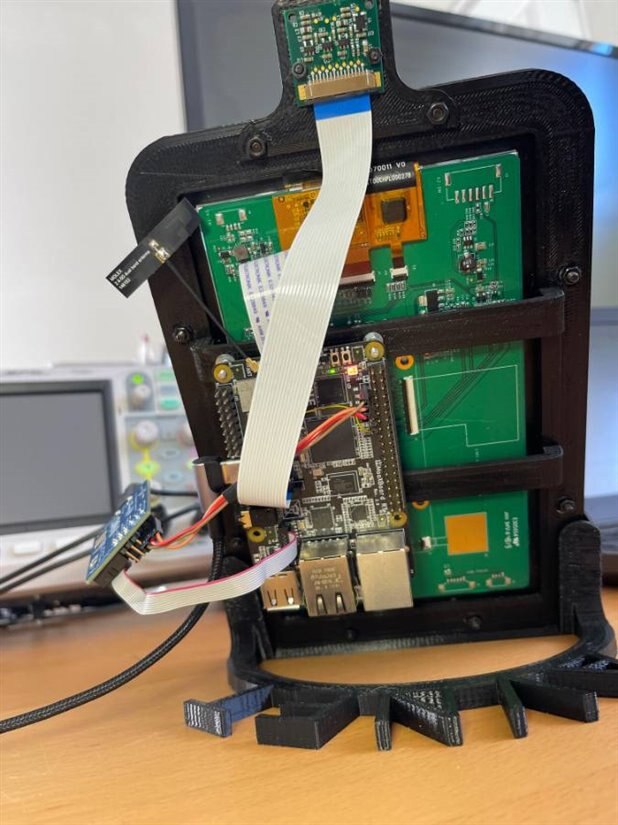

• Camera Mount Landscape (optional)
  • Uses screw holes from bezels to mount
  • Mount camera from behind mount
  • Use 1-72 NF screws and nuts to mount camera module to mount
  • Can mount to either side of the frame

• Camera Mount Portrait (optional)
  • Uses screw holes from bezels to mount
  • Mount camera from behind mount
  • Use 1-72 NF screws and nuts to mount camera module to mount
  • Can mount to either side of the frame

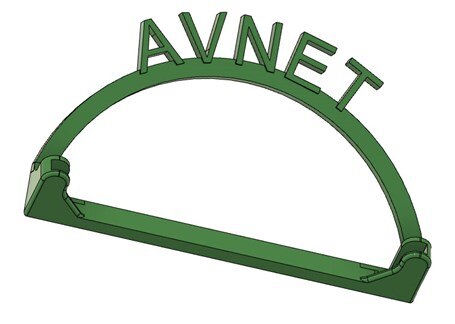

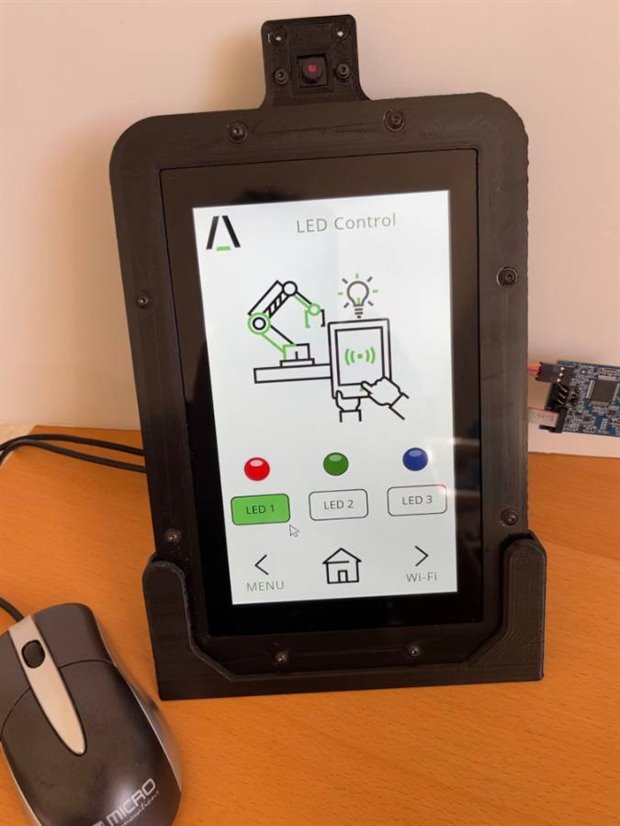

• Stand Portrait (optional)
  • Print with Avnet text on print bed
  • No supports required

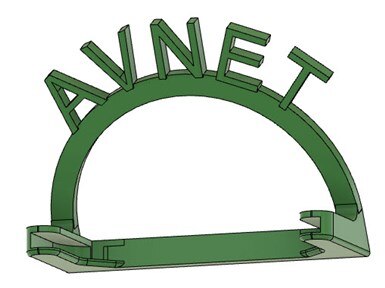

• Stand Landscape (optional)
  • Print with Avnet text on print bed
  • No supports required

Enjoy!
