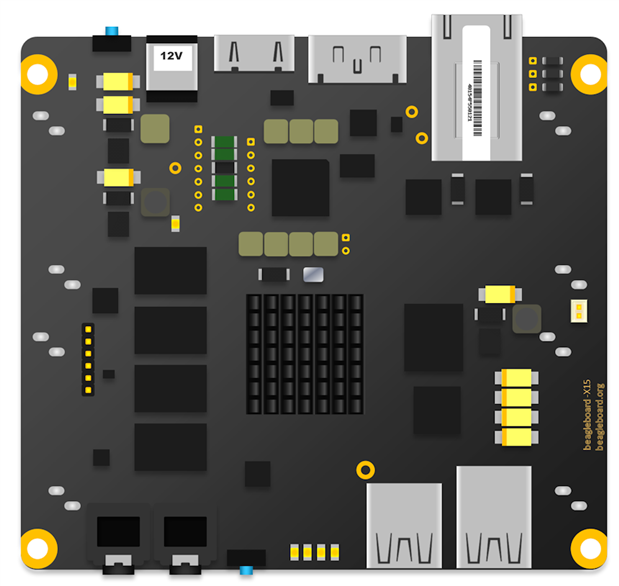

These are some graphic representations of the new BeagleBoard-X15 single board computer(SBC
They are hopefully suitable for documenting projects created with the BeagleBoard-X15 The representations were created based on the current photos on the elinux website.
Please check if you need to rely on these graphic representations, in case I've missed anything - and let me know if they need correcting.
If the graphics need correcting, an update will be posted here so if needed, please click on the bookmark button to the right to be alerted.
The attached zip file below, contains high, medium and low-resolution versions, all with black, white and transparent backgrounds (all are .png format).

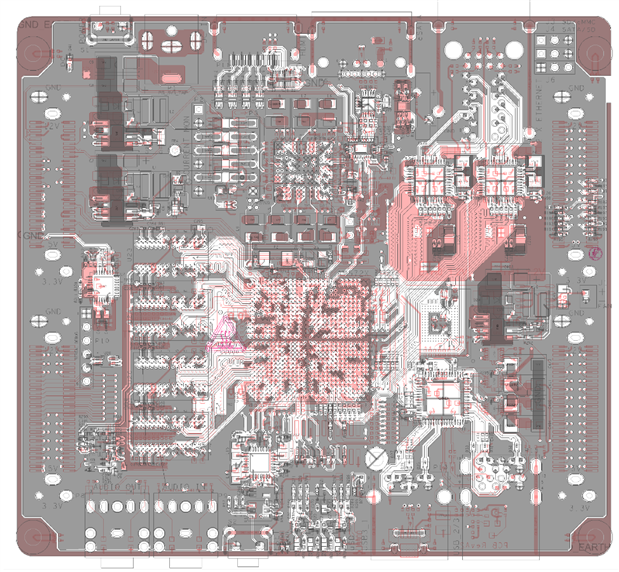

Gerber renders of the top (component) side, with the bottom copper shown in red (no internal layers are shown).
Gerber renders of the reverse (solder) side will be created later.
