Overview

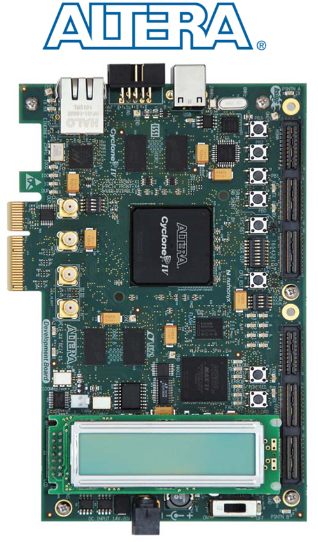

The Altera's DK-DEV-4CGX150NDK-DEV-4CGX150N Cyclone IV GX FPGA Development Kit provides a comprehensive, best-in-class design environment to quickly begin developing low-cost and low-power FPGA system-level designs. The PCI-SIG-compliant board, high-speed mezzanine card (HSMC), and the license-free Quartus II Web Edition software provide everything you need to begin developing custom Cyclone IV GX FPGA designs. This kit helps to shorten your product’s development cycle so that you can meet your product’s time to market and production milestones.
The following list describes what you can accomplish with the kit:
Key Applications: Broadcast, Consumer, Consumer, Industrial, Wireless, Wireline. | ||||||||||||
|
Development Tools
Software Development Tools:
Tool Type | Supplier | Supported Family | MPN | Description |
---|---|---|---|---|
IDE | Altera | ALL Altera Devices | Altera Quartus II | It's the industry's number one software in performance and productivity for CPLD, FPGA, and HardCopy ASIC designs. The Altera Quartus II software, the industry's number one software in performance and productivity for CPLD, FPGA, and HardCopy ASIC designs. Learn More |
Hardware Development Tools:
Tool Type | Supplier | Support?ed Family | MPN | Description |
---|---|---|---|---|
Download Cable | Altera | ALL Altera Devices | PL-BYTEBLASTER2NPL-BYTEBLASTER2N | The ByteBlaster II enables a PC to configure or program Altera devices. The download cable drives configuration or programming data using a standard parallel printer port from the PC. |
Download Cable | Altera | ALL Altera Devices | PL-USB-BLASTER-RCNPL-USB-BLASTER-RCN | The USB-Blaster drives configuration or programming data from the PC to configure or program Altera devices. The download cable interfaces to a standard USB PC port. |
Download Cable | Altera | ALL Altera Devices | PL-ETH2-BLASTERPL-ETH2-BLASTER | The EthernetBlaster can receive configuration or programming data from the Ethernet network to remotely configure or program Altera devices. The communications cable connects to a standard Ethernet network port with an RJ-45 connector. |
Technical Documents
Learning Center
Design Elements
Type | Description |
---|---|
Schematics | |
Layout | Altera: Layout File for DK-DEV-4CGX150N Dev Kit |
BOM | Altera: BOM File for DK-DEV-4CGX150N Dev Kit |
Application Library | Altera: Software Code for DK-DEV-4CGX150N Dev Kit |
Video
Kit Features

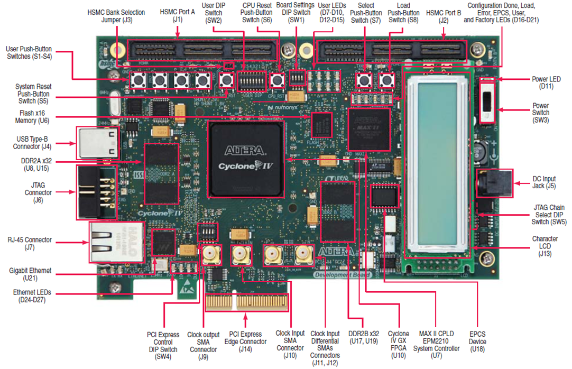

The board features the following major component blocks:
- Cyclone IV GX EP4CGX150DF31 FPGA in the 896-pin FineLine BGA (FBGA) package
- 1.2-V core power
- MAX IIEPM2210GF256EPM2210GF256 CPLD in the 256-pin FBGA package
- 1.8-V core power
- FPGA configuration circuitry
- MAX II CPLD EPM2210 EPM2210 System Controller and flash fast passive parallel (FPP) configuration
- Active serial configuration
- On-board USB-BlasterTM for use with the Quartus II Programmer
- JTAG header for external USB-Blaster with the Quartus II Programmer
- On-Board ports
- Embedded USB-Blaster
- One gigabit Ethernet port
- Communication ports
- PCI Express (PCIe) edge connector
- 10/100/1000BASE-T Ethernet PHY with RJ-45 connector
- Two High-Speed Mezzanine Card (HSMC) interfaces
- On-Board memory
- 4-MB (x16) Synchronous Static Random Access Memory (SSRAM)
- Two 32-MB (x32) DDR2 SDRAM
- 64-MB flash
- On-Board clocking circuitry
- 50.000-MHz oscillator
- 125.000-MHz oscillator
- SMA clock input
- SMA clock output
- Programmable oscillator (default: 100.000-MHz)
- General user I/O
- LEDs and display
- Eight FPGA user LEDs
- One configuration done LED
- One error LED
- Five Ethernet status LEDs
- One USB status LED
- One power status LED
- Five configuration LEDs
- A two-line 16-character LCD display
- Push-Button switches
- One CPU reset push-button switch
- One MAX II configuration reset push-button switch
- One program-load push-button switch—configure the FPGA from flash memory
- One program-select push-button switch—select image to load from flash memory or serial configuration (EPCS) device
- Four general user push-button switches
- DIP switches
- Board settings DIP switch
- JTAG chain select DIP switch
- PCIe control DIP switch
- Configuration settings DIP switch
- User DIP switch
- LEDs and display
- Power supply
- 16-V DC input
- 2.5-mm barrel jack for DC power input
- On/Off slide power switch
- On-Board power measurement circuitry
- 20-W per HSMC interface
- Mechanical
- PCIe small form factor board
- Bench-top operation
Kit Contents
The Cyclone IV GX FPGA Development Kit includes:
Hardware:
- Cyclone IV GX FPGA development board—A development platform that allows you to develop and prototype hardware designs running on the Cyclone IV GX EP4CGX150DF31 FPGA.
- HSMC loopback board—A daughtercard that allows for loopback testing all signals on the HSMC interface using the Board Test System.
- HSMC debug breakout board—A daughtercard that routes 40 CMOS signals to a 0.1" header and adds 20 LEDs to the remaining 40 CMOS signals.
- Power supply and cables—The kit includes the following items:
- Power supply and AC adapters for North America/Japan, Europe, and the United Kingdom
- USB cable
- Ethernet cable
Software:
- Quartus II Web Edition Software
- Cyclone IV GX FPGA Development Kit Installer
Back to top |
