The ADSP-21375 EZ-KIT LiteADSP-21375 EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the ADSP-2137x SHARC
The EZ-KIT Lite includes an ADSP-21375ADSP-21375 SHARC Processor desktop evaluation board along with an evaluation suite of the VisualDSP++ development and debugging environment, including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only.
The ADSP-21375 EZ-KITADSP-21375 EZ-KIT contains an ADSP-21375ADSP-21375 SHARC
Key Applications: Automotive Audio, Professional Audio, Industrial and Instrumentation, Consumer AVR | |||||||||||
|
Development Tools
Software Development Tools:
Tool Type | Supplier | MPN | Supported Family | Description |
---|---|---|---|---|
IDE | Analog Devices | VisualDSP++ | Blackfin / SHARC / TigerSHARC / ADSP-21xx | VisualDSP++ |
Hardware Development Tools:
Tool Type | Supplier | MPN | Supported Family | Description |
---|---|---|---|---|
Emulator | Analog Devices | ADZS-HPUSB-ICEADZS-HPUSB-ICE | Blackfin / SHARC / TigerSHARC / ADSP-21xx | High Performance USB-Based Emulator for all ADI JTAG processors and DSPs |
Emulator | Analog Devices | ADZS-USB-ICEADZS-USB-ICE | Blackfin / SHARC / TigerSHARC / ADSP-21xx | USB-Based Emulator for all ADI JTAG processors and DSPs |
Technical Documents
Learning Center
Design Elements
Type | Description |
---|---|
Schematics | ADI: ADSP-21375 EZ-KIT Lite Schematics |
Layout | |
Simulation Model | ADI: ADSP-21375 SHARC Processor BSDL File 208 Pin MQFP Package |
Simulation Model | ADI: ADSP-21375 SHARC IBIS Datafile MQFP Package |
Video

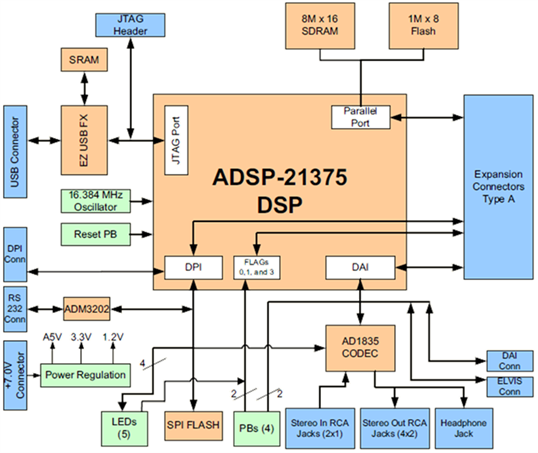

Kit Features
- Analog Devices ADSP-21375ADSP-21375 processor
- 208-pin MQFP package
- 266 MHz core clock speed
- Synchronous dynamic random access memory (SDRAM)
- 2M x 16-bit x 4 banks
- Flash memory
- 1M x 8-bit
- Serial peripheral interface (SPI) flash memory
- 2 Mbit
- Analog audio interface
- Analog Devices AD1835A audio codec
- 4 x 2 RCA phono jack for four channels of stereo output
- 2 x 1 RCA phono jack for one channel of stereo input
- 3.5 mm headphone jack for one channel stereo output
- Universal asynchronous receiver/transmitter (UART)
- National Instruments Educational Laboratory Virtual Instrumentation Suite (ELVIS) Interface
- LabVIEW
-based virtual instruments
- Multifunction data acquisition device
- Bench-top workstation and prototype board
- LabVIEW
- LEDs
- 11 LEDs: 1 power (green), 1 board reset (red), 1 USB monitor (amber), and 8 general purpose (amber)
- Push buttons
- 5 push buttons: 1 reset, 2 connected to DAI, 2 connected to the FLAG pins of the processor
- Expansion interface (Type A)
- Parallel port, FLAG pins, DPI, DAI
- Other features
- JTAG ICE 14-pin header
- Test points for processor current measurement
- DPI header
- DAI header
Kit Contents
- ADSP-21375 EZ-KIT LiteADSP-21375 EZ-KIT Lite board
- VisualDSP++ Installation Quick Reference Card
- CD containing:
- VisualDSP++ software
- ADSP-21375 EZ-KIT LiteADSP-21375 EZ-KIT Lite debug software
- USB driver files
- Example programs
- ADSP-21375 EZ-KIT LiteADSP-21375 EZ-KIT Lite Evaluation System Manual (this document)
- Universal 7V DC power supply
- USB 2.0 cable
- 3.5 mm stereo headphones
- 6-foot RCA audio cable
- 6-foot 3.5 mm/RCA x 2 Y-cable
