| Kit Overview

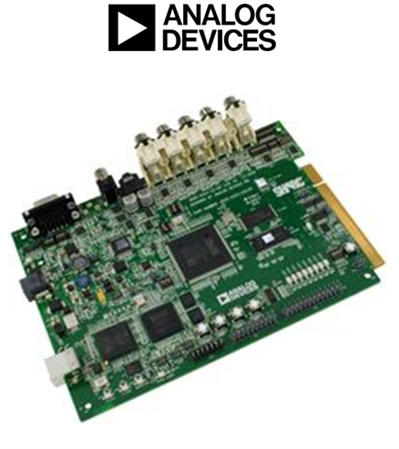

The ADSP-21371 EZ-KIT LiteADSP-21371 EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the ADSP-2137x SHARC Processors via a USB-based, PC-hosted tool set. With this EZ-KIT Lite, users can learn more about the Analog Devices (ADI) ADSP-2137x hardware and software development tools, and quickly prototype a wide range of applications. The ADSP-21371ADSP-21371 offers a high performance at a very low cost 266 MHz/1596 MFLOPs -- within the third generation SHARC Processor family. The ADSP-21371ADSP-21371 offers increased performance, audio and application-focused peripherals, and memory configurations capable of supporting surround-sound decoder algorithms.
The EZ-KIT Lite includes an ADSP-21371 SHARC Processor desktop evaluation board along with an evaluation suite of the VisualDSP++ development and debugging environment, including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only. The development environment aides advanced application code development and debug. Access to the ADSP-21371ADSP-21371 processor from a personal computer (PC) is achieved through a USB port or an external JTAG emulator. The USB interface provides unrestricted access to the ADSP-21371ADSP-21371 processor and evaluation board peripherals.
The EZ-KIT Lite board provides access to all of the processor’s peripheral ports. Access is provided in the form of a three-connector expansion interface. Additionally, the ADSP-21371 EZ-KIT LiteADSP-21371 EZ-KIT Lite contains the National Instruments Educational Laboratory Virtual Instrumentation Suite (ELVIS) interface. This interface will allow using the DC voltage and current measurement modules, oscilloscope and bode analyzer modules, function generator, arbitrary waveform generator and digital I/O.
Key Applications: Automotive Audio, Professional Audio, Industrial and Instrumentation, Consumer AVR. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Analog Devices | VisualDSP++ | Blackfin / SHARC / TigerSHARC / ADSP-21xx | VisualDSP++ is an easy-to-use integrated software development and debugging environment (IDDE). Efficiently manage projects from start to finish from within a single interface. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator | Analog Devices | ADZS-HPUSB-ICEADZS-HPUSB-ICE | Blackfin / SHARC / TigerSHARC / ADSP-21xx | High Performance USB-Based Emulator for all ADI JTAG processors and DSPs |
| Emulator | Analog Devices | ADZS-USB-ICEADZS-USB-ICE | Blackfin / SHARC / TigerSHARC / ADSP-21xx | USB-Based Emulator for all ADI JTAG processors and DSPs |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Simulation Model | ADI: ADSP-21371 SHARC Processor BSDL File 208 Pin MQFP Package |
| Simulation Model | ADI: ADSP-21371 SHARC IBIS Datafile MQFP Package |
Video

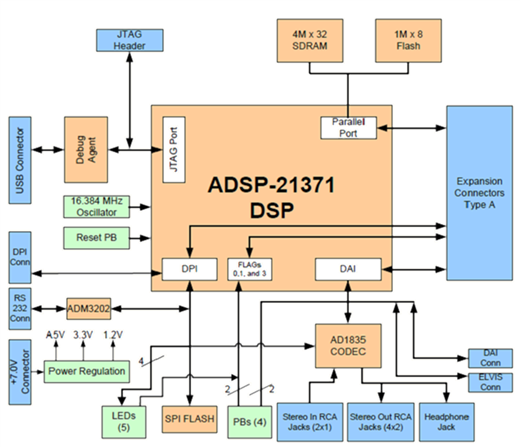

Kit Features
- Analog Devices ADSP-21371ADSP-21371 processor
- 208-pin MQFP package
- 266 MHz core clock speed
- Synchronous dynamic random access memory (SDRAM)
- 1M x 32-bit x 4 banks
- Flash memory
- 1M x 8-bit
- Serial peripheral interface (SPI) flash memory
- 2 Mbit
- Analog audio interface
- Analog Devices AD1835A audio codec
- 4 x 2 RCA phono jack for four channels of stereo output
- 2 x 1 RCA phono jack for one channel of stereo input
- 3.5 mm headphone jack for one channel stereo output
- Universal asynchronous receiver/transmitter (UART)
- National Instruments Educational Laboratory Virtual Instrumentation
- Suite (ELVIS) Interface
- LabVIEW
-based virtual instruments - Multifunction data acquisition device
- Bench-top workstation and prototype board
- LabVIEW
- LEDs
- Eleven LEDs: one power (green), one board reset (red),one USB monitor (amber), and eight general-purpose(amber)
- Push buttons
- Five push buttons: one reset, two connected to DAI, and two connected to the FLAG pins of the processor
- Expansion interface (type A)
- Parallel port, FLAG pins, DPI, DAI
- Other features
- JTAG ICE 14-pin header
- Test points for processor current measurement
- DPI header
- DAI header
Kit Contents
- ADSP-21371 EZ-KIT LiteADSP-21371 EZ-KIT Lite board
- VisualDSP++ Installation Quick Reference Card
- CD containing:
- VisualDSP++ software
- ADSP-21371 EZ-KIT LiteADSP-21371 EZ-KIT Lite debug software
- USB driver files
- Example programs
- ADSP-21371 EZ-KIT LiteADSP-21371 EZ-KIT Lite Evaluation System Manual (this document)
- Universal 7V DC power supply
- USB 2.0 cable
- 3.5 mm stereo headphones
- 6-foot RCA audio cable
- 6-foot 3.5 mm/RCA x 2 Y-cable
