| Kit Overview

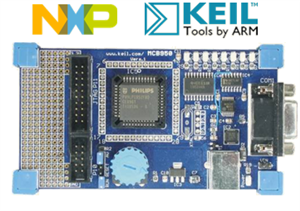

The Keil MCB950MCB950 Evaluation Board is a versatile, flexible prototype board for the NXP P89LPC952P89LPC952 microcontroller family. It includes the Keil µVision LPC Development Studio which allows you to create and debug programs that you can program into the on-chip Flash ROM using FlashMagic. With this hands-on process, you can determine the hardware and software requirements for current and future product development.
The MCB950MCB950 Evaluation Board ships with a NXP P89LPC952P89LPC952 microcontroller. The P89LPC952 is an 8051-based microcontroller with 2 clock highspeed core, 8K Bytes ISP/IAP Flash, 256 Bytes RAM, 256 Bytes AUX RAM, Dual DPTR, 40 I/O Lines, 2 Timers/Counters, UART, I2C, SPI, 2 Analog Comparators, WDT, RTC. The board contains all hardware components required in a single-chip system. The MCB950 evaluation board is very flexible and configures easily to suit your needs. Configuration jumpers control the built-in features such as debug interfaces, and Analog Input Voltages.
The MCB950MCB950 Evaluation Board also includes prototyping area, which provides blocks for connecting the address and data lines, and ports P0, P1, and P2. The MCB950 board comes with the Keil Development Tools CD-ROM that contains an Evaluation Version of the PK51 Professional Developer's Kit. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil C51 | All 8051 | Keil C51 is the industry-standard toolchain for all 8051-compatible devices, it supports classic 8051, Dallas 390, NXP MX, extended 8051 variants, and C251 devices. The µVision IDE/Debugger integrates complete device simulation, interfaces to many target debug adapters, and provides various monitor debug solutions. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | 8051 | ULINK2 Debug Adapter |
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | ARM: MCB950 Evaluation Board User's Guide |
| User Manual | NXP: P89LPC952/954 User Manual |
| Datasheet | NXP: P89LPC952/954 Datasheet |
| Application Note | ARM: Application Note 104 - Relocating 8051 Programs |
| Application Note | ARM: Application Note 105 - 8051 Timer Interrupts |
| Application Note | ARM: Application Note 129 - Function Pointers in C51 |

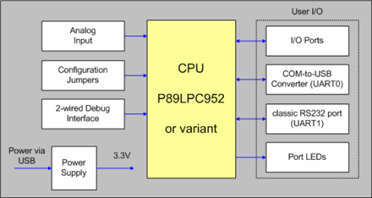

Design Elements
Video
Kit Features
- NXP P89LPC952P89LPC952 microcontroller
- USB-powered
- USB Interface for power and emulating a COM interface for UART0
- One POWER LED indicates that the power supply is connected to the board
- 8 LEDs displays program status while testing applications
- The JTAG Interface for debugging and emulator
- Configuration jumpers control the built-in features such as debug interfaces, and Analog Input Voltages
Kit Contents
- The MCB950MCB950 Evaluation Board.
- A CD-ROM that includes:
- An evaluation version of the Keil C51 Development Tools.
- An evaluation version of the Keil µVision LPC Development Studio.
- Philips FlashMagic (in the Utilities folder) to program the on-chip Flash ROM using the USB COM port.
- Example programs for the MCB950 Evaluation Board.
- Example Programs for the MCB950MCB950 Evaluation board.
