Texas Instruments: EV2200 PC Interface Board for Gas Gauge Evaluation

Technical Documents Video Features Kit Contents


Kit Overview

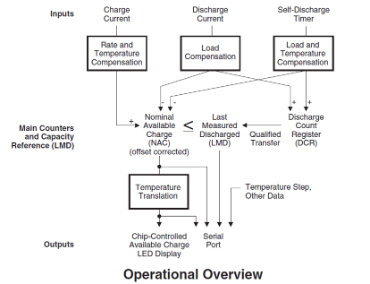

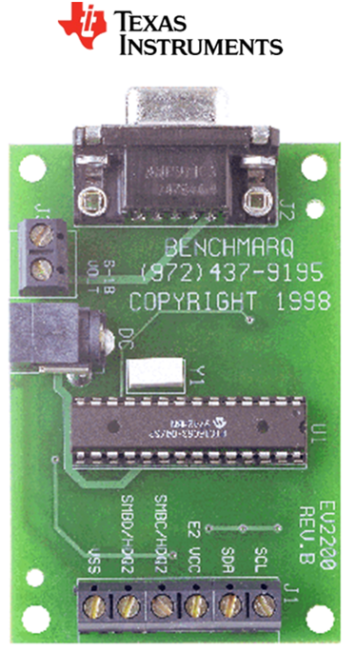

The Texas Instruments EV2200 provides a development and evaluation environment for HDQ based and SMBus based gas gauge ICs. The EV2200. provides connections for the communication lines of an intelligent battery with a serial interface port of a Windows-based PC. With the EV2200, the user can read/write the gas gauge registers of each IC and monitor the battery's status. In the SBS SMBus environment, the interface board and software allow the battery pack designer to evaluate the function of the ICs, calibrate the intelligent battery circuit for current, temperature, and voltage measurements, and program the external EEPROM.



Development system for HDQ (bq2013H, BQ2014HSN, bq2018, bq2019, bq2050H and bq2052) and SMBus (bq2040 and bq2060) gas gauge ICs:



  • The bq2013H Gas Gauge IC is intended for battery-pack installation to maintain an accurate record of a battery’s available charge. The IC monitors a voltage drop across a sense resistor connected in series between the negative battery terminal and ground to determine charge and discharge activity of the battery. The bq2013H is designed for high cpaacity battery packs used in high-discharge rate systems.
  • The bq2014H/bq2040 Gas Gauge IC is intended for batterypack or in-system installation to maintain an accurate record of available battery capacity. The IC monitors a voltage drop across a sense resistor connected in series between the negative battery terminal and ground to determine charge and discharge activity of the battery.The BQ2040EVM-001 directly supports capacity monitoring for NiCd, NiMH, and Li-Ion battery chemistries.
  • The bq2018 is a low-cost charge/discharge counter peripheral packaged in an 8-pin TSSOP or SOIC. It works with an intelligent host controller, providing state-of-charge information for rechargeable batteries.
  • The bq2019 advanced battery-monitoring IC accurately measures the charge and discharge currents in a rechargeable battery pack. In pack integration, the bq2019 is the basis of a comprehensive battery-capacity management system in portable applications such as cellular phones, PDAs, or other portable products.
  • The bq2050H Lithium Ion Power GaugeTm IC is intended for battery pack or in-system installation to maintain an accurate record of available battery capacity. The IC monitors a voltage drop across a sense resistor connected in series between the negative battery terminal and ground to determine charge and discharge activity of the battery.
  • The bq2052 Lithium Primary Gas Gauge IC is intended for battery-pack or in system installation to maintain an accurate record of available battery capacity. The IC monitors a voltage drop across a sense resistor connected in series with the cells to determine discharge activity of the battery. The bq2052 applies compensations for battery temperature and discharge rate to the available charge counter to provide available capacity information across a wide range of operating conditions.
  • The bq2060 SBS-compliant gas gauge IC for battery pack or in-system installation maintains an accurate record of available charge in rechargeable batteries. The BQ2060AEVM-001 monitors capacity and other critical battery parameters for NiCd, NiMH, Li-ion, and lead-acid chemistries.



Key Applications: Power-Assist Applications, Lithium Primary Cells

More Development Kits and Tools
image Texas Instruments Analog Development Kits image Texas Instruments Embedded Development Kits
image Development Platforms & Kits image element14 Knode



Technical Documents


Learning Center



Type Description
User Guide TI: User Guide for EV2200 - PC Interface Board for Gas Gauge Evaluation
User Guide TI: User Guide for EV2200-18 Evaluation System
User Guide TI: User Guide for EV2200–40 Evaluation System
User Guide TI: User Guide for EV2200-50H Evaluation System
Datasheet TI: Data Sheet for bq2050H - Low-Cost Lithium Ion Power Gauge IC
Datasheet TI: Data Sheet for bq2019 - Advanced Battery Monitor IC
Datasheet TI: Data Sheet for bq2060 - SBS V1.1-COMPLIANT GAS GAUGE IC
Datasheet TI: Data Sheet for bq2013H - Gas Gauge IC for Power Assist Applications



Design Elements



Type Description
Application Library TI: EV2200 Software for bqQ2018
Application Library TI: EV2200 Software for bq2060
CAD Model TI: CAD Model for BQ2018SN-E1



Back to top



Back to top



Kit Features





Key Features for EV2200 PC Interface Board:

  • Development system for HDQ (bq2013H, BQ2014HSN, bq2018, bq2019, bq2050H and bq2052) and SMBus (bq2040 and bq2060) gas gauge ICs
  • Provides interface between intelligent battery and Windows-based PC
  • Connects to the serial communications port of a PC
  • On screen display and programming of gas gauge register functions
  • Programs EEPROM and calibrates current, temperature, and voltage measurements in BQ2040EVM-001 and bq2060 based packs





































Back to top

Kit Contents




The  Texas Instruments EV2200 PC Interface Board for Gas Gauge Evaluation is supplied with below contents:

  • The interface board
  • DC power supply
  • PC software.



Please specify the desired software to be included with the EV2200 evaluation board as shown below:



Gas Gauge IC Part Number
bq2013H EV2200-13H
bq2018 EV2200-18
BQ2040EVM-001 EV2200-40
bq2050H EV2200-50H
BQ2060AEVM-001 EV2200-60
bq2092 EV2200-92
bq2945 EV2200-45
