Texas Instruments: DEM-OPA-SO-1A Unpopulated PCB Compatible w/High Speed Wide Bandwidth Op Amps in 8-lead SOIC (D) Pkg

BUY NOWBUY NOWTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

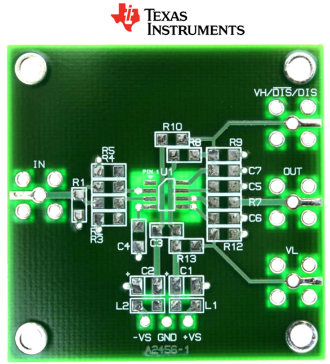

The Texas Instruments DEM-OPA-SO-1ADEM-OPA-SO-1A demonstration fixture helps designers evaluate the operation and performance of TI's High Speed, Wide Bandwidth Operational Amplifiers. This unpopulated PC board is compatible with products offered in the 8-lead SOIC (D) package.



The DEM-OPA-SO-1ADEM-OPA-SO-1A demonstration fixture is a generic, unpopulated printed circuit board (PCB) for single operational amplifiers in SO-8 packages.



  • This demonstration fixture is a two-layer PCB. It uses a ground plane on the bottom, and signal and power traces on the top.
  • The ground plane has been opened up around op amp pins sensitive to capacitive loading. Power-supply traces are laid out to keep current loop areas to a minimum.
  • The SMA (or SMB) connectors may be mounted either vertically or horizontally.
  • The location and type of capacitors used for power-supply bypassing are crucial to high-frequency amplifiers. The tantalum capacitors, C1 and C2, do not need to be as close to pins 7 and 4 on your PCB, and may be shared with other amplifiers.



Key Applications: Demonstration Fixture for  8-lead SOIC (D) package Operational Amplifiers
