Kit Overview   The CC1101EMKCC1101EMK evaluation kit in combination with a CC1101CC1101 development kit is designed to help the user to achieve his/her objectives as quickly as possible:   Evaluate the SmartRF04 products. Right out of the box, the user can do range testing (PER testing) and transfer data from one PC to another using the SmartRF04DK. This enables the user to quickly find out how well the SmartRF04 products fit the intended application. A number of demonstration applications serve to highlight the innovative features of the SmartRF04 ICs. Perform RF measurements. Using SmartRF Studio, the user can configure the radio ICs with parameters that suit the intended application and easily measure sensitivity, output power and other RF parameters. Develop a prototype. The SmartRF04DK includes a Silicon Labs 8051-core MCU with 16 kB of program memory and 1 kB of data memory. By programming this MCU and utilizing the various peripherals included on the Evaluation Board, the user can easily make a prototype of the intended application. All signals are brought out on 0.1" pin-row connectors so easy connection of other required circuitry is possible. These connectors are also compatible with Agilent logic analyser probes for easy debugging. It is also possible to disconnect the Silicon Labs MCU from the EVM board, and connect a MCU selected by the user to the I/O connectors.   Key Applications: Ultra-Low-Power Wireless Applications ISM/SRD Bands, Remote Keyless Entry Systems, Passive Entry/Passive Start Systems, Vehicle Service Links, Garage Door Opener, TPMS Systems

More Development Kits and Tools Texas Instruments Analog Development Kits Texas Instruments Embedded Development Kits Development Platforms & Kits element14 Knode

Development Tools

Software Development Tools:

SmartRF Studio

SmartRF Studio is a Windows application that can be used to evaluate and configure Low Power RF-ICs from Texas Instruments. The application will help designers of RF systems to easily evaluate the RF-ICs at an early stage in the design process. It is especially useful for generation of configuration register values, for practical testing of the RF system and for finding optimized external component values. SmartRF Studio can be used both as a standalone application or together with applicable evaluation boards that are shipped in the RF-IC development kits.

Hardware Development Tools:

The CC1101EMKCC1101EMK require two SmartRF04DKs (included in multiProductLinkCC1101DK) for evaluation and development.

The CC1101EMKCC1101EMK can also be used with two MSP-EXP430FG4618MSP-EXP430FG4618/MSP-EXP430F2013 Experimenter Boards for software development, prototyping and testing using the multiProductLinkMSP430.

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

Texas Instruments: CC1101EMK868-915 - CC1101 Evaluation Module 868-915MHz

Poster

Upload Preview

Ok

Cancel

Back to top

Kit Features

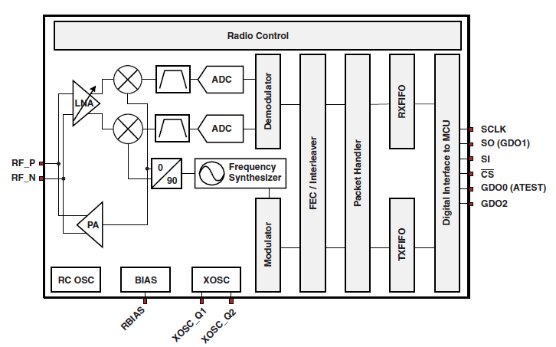

CC1101CC1101 Features:

• Qualification in Accordance With AEC-Q100 Grade 1
• Extended Temperature Range Up To 125°C
• Frequency Range   : Sub1-GHz
• Frequency (Min)  : 00MHz, 391MHz, 782MHz
• Frequency (Max)  : 348MHz, 464MHz, 928MHz
• Programmable Output Power up to +10 dBm for All Supported Frequencies
• Excellent Receiver Selectivity and Blocking Performance
• Programmable Data Rate From 1.2 kBaud to 250 kBaud
• Analog Features
  • 2-FSK, GFSK, and MSK Supported, as Well as OOK and  Flexible ASK Shaping
  • Suitable for Frequency-Hopping Systems Due to a Fast Settling  Frequency Synthesizer: 90-µs Settling Time
  • Automatic Frequency Compensation (AFC) Can Align Frequency Synthesizer to Received Center Frequency
  • Integrated Analog Temperature Sensor
• Digital Features
  • Flexible Support for Packet-Oriented Systems: On-Chip Support for Sync Word Detection, Address Check, Flexible Packet Length, and Automatic CRC Handling
  • Efficient SPI Interface: All Registers Can Be Programmed With One Burst Transfer
  • Digital RSSI Output
  • Programmable Channel Filter Bandwidth
  • Programmable Carrier Sense (CS) Indicator
  • Programmable Preamble Quality Indicator (PQI) for Improved Protection Against False Sync Word Detection in Random Noise
  • Support for Automatic Clear Channel Assessment (CCA) Before Transmitting (for Listen-Before-Talk Systems)
  • Support for Per-Package Link Quality Indication (LQI)
  • Optional Automatic Whitening and Dewhitening of Data
• Low-Power Features
  • Fast Startup Time: 240 µs From Sleep to Receive (RX) or Transmit (TX) Mode
  • Wake-On-Radio Functionality for Automatic Low-Power RX Polling
  • Separate 64-Byte RX and TX Data FIFOs (Enables Burst Mode Data Transmission)
• General
  • Few External Components: Completely On-Chip Frequency Synthesizer, No External Filters or RF Switch Needed
  • Green Package: RoHS Compliant and No Antimony or Bromine
  • Small Size QFN 5-mm×5-mm 32-Pin Package
  • Suited for Systems Compliant With EN 300 220 (Europe) and FCC CFR Part 15 (US)
  • Support for Asynchronous and Synchronous Serial Receive/Transmit Mode for Backward Compatibility With Existing Radio Communication Protocols
  • Designed for Automotive Applications

Back to top

Kit Contents

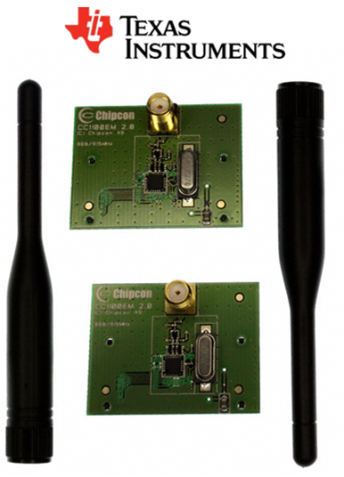

The Texas Instrument's CC1101EMK868-915CC1101EMK868-915 Supplied with below contents:

• 2 multiProductLinkCC1101 868/915 MHz evaluation modules which contain:
  • CC1101CC1101 chip
  • Required external components
• 2 Antennas (868/915 MHz)
