Texas Instruments: THS4509EVM Evaluation Module

BUY NOWBUY NOW

Kit Overview

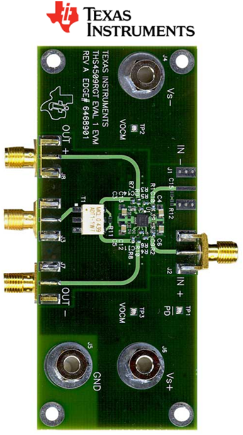

The Texas Instruments THS4509RGT Eval 1 EVMTHS4509RGT Eval 1 EVM (THS4509EVM) is an evaluation Module for the RGT (16 pin leadless QFN) package. The THS4509RGT Eval 1 EVM is designed to demonstrate the functionality and versatility of the device. The EVM is ready for power, signal source, and test instruments. The EVM is configured for a gain of 10dB and 50 ohm input and output termination for connection to common lab test equipment.

The THS4509THS4509 Wideband Operational Amplifier:

The THS4509 is a wideband, fully-differential op amp designed for 5-V data acquisition systems. It has a low noise at 1.9 nV/√Hz, and low harmonic distortion of –75 dBc HD2 and –80 dBc HD3 at 100 MHz with 2 VPP, G = 10 dB, and 1 k load. Slew rate is high at 6600 V/µs, and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 6 dB, but is optimized for gains of 10 dB.
To allow for dc coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 3-mV offset (typ) from the set voltage, when set within 0.5-V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source.
The input and output are optimized for best performance with the common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for high-performance, single-supply 5-V data acquisition systems. The combined performance of the THS4509THS4509 in a gain of 10 dB driving the ADS5500 ADC, sampling at 125 MSPS, is 81-dBc SFDR and 69.1-dBc SNR with a –1 dBFS signal at 70 MHz.
The THS4509 is offered in a quad, leadless QFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from –40°C to +85°C.

Key Applications: 5-V Data Acquisition Systems High Linearity ADC Amplifiers, Wireless Communication, Medical Imaging, Test and Measurement

More Development Kits and Tools
	Texas Instruments Analog Development Kits		Texas Instruments Embedded Development Kits
	Development Platforms & Kits		element14 Knode

Technical Documents

Learning Center

Type	Description
User Guide	TI: User Guide for THS4509EVM Evaluation Module
Selection Guide	TI: Selection Guide for High-Speed Amplifiers trifold brochure (Rev. A)
Application Note	TI: Application Note for Fully-Differential Amplifiers (Rev. D)
Application Note	TI: Application Note for Driving High-Speed ADCs: Circuit Topologies and System-Level Parameter (Rev. A)
Application Note	TI: Application Note for Designing Wideband Differential Transimpedance DAC Output

Design Elements

Type	Description
Reference Design	TI: Reference Design for THS4509 TINA-TI (Rev. B)
Simulation Model	TI: SPICE Model for THS4509 (Rev. C)
Simulation Model	TI: SPICE Model for THS4509 TINA-TI (Rev. A)
CAD Model	TI: CAD Model for THS4509RGTRG4
CAD Model	TI: CAD Model for THS4509RGTTG4

Video

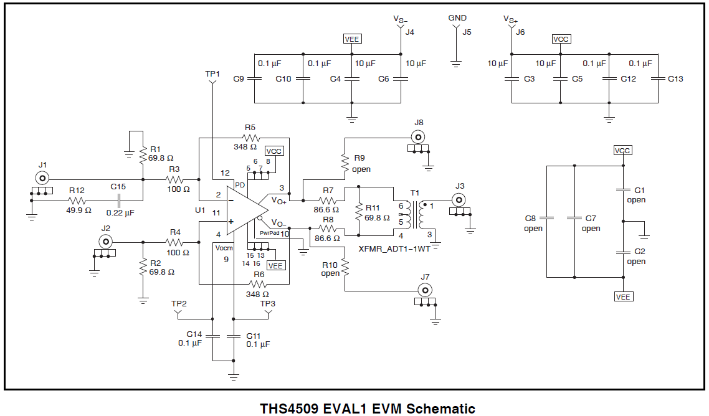

Kit Features

Key Features for THS4509EVMTHS4509EVM Evaluation Module:

Configured with 50 ohms input/output impedance.
1:1 Transformer on output
Power Supply: 3V (+/-1.5V) to 5V (+/-2.5V)
Decoupling capacitors
Connectors: Vs+, GND, Vs-, In+, J3 (V OUT), and test points.
Input and Output signals are via SMA connectors.
Power connectors are via banana jack.

Key Features for THS4509THS4509 Wideband Operational Amplifier:

Fully-Differential Architecture
Centered Input Common-Mode Range
Output Common-Mode Control
Minimum Gain of 2 V/V (6 dB)
Bandwidth: 1900 MHz
Slew Rate: 6600 V/µs
1% Settling Time: 2 ns
HD2: –75 dBc at 100 MHz
HD3: –80 dBc at 100 MHz
OIP3: 37 dBm at 70 MHz
Input Voltage Noise: 1.9 nV/√Hz (f > 10 MHz)
Power-Supply Voltage: 3 V to 5 V
Power-Supply Current: 37.7 mA
Power-Down Current: 0.65 mA

Kit Contents

The Texas Instruments THS4509EVMTHS4509EVM Evaluation Module is supplied with below contents:

Evaluation Board
