Analog Devices: ADIS16445/PCBZ Evaluation Board for ADIS16445 Inertial Sensor

BUY NOWBUY NOWTechnical DocumentsVideoFeaturesKit Contents






Kit Overview

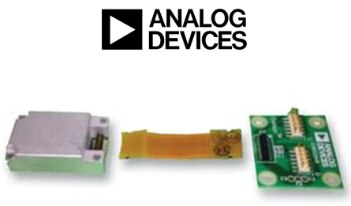

The ADIS16445/PCBZADIS16445/PCBZ is a breakout board which provides ADIS16445AMLZADIS16445AMLZ, flexible cable and interface PCB to simplify the process of developing a prototype connection with an existing embedded processor system. It is required for connecting the ADIS16445AMLZ directly to the EVAL-ADIS evaluation system as well. The ADIS16445AMLZ is a fully-calibrated, MEMS IMU, which provides a serial peripheral interface (SPI) for all digital communications. It provides a dual-row, 24-pin connector interface that minimizes board space but does not support standard ribbon cable connections.



The flexible cable and interface PCB provides access to the ADIS16445AMLZADIS16445AMLZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques. The flexible cable mates the ADIS16445AMLZ to any system that is currently using the ADIS1636x, ADIS16375ADIS16375, ADIS16385ADIS16385, ADIS1640x, or ADIS1648x IMU products, which use a 24-pin interface, rather than the 20-pin interface that the ADIS16445 uses. This combination of components enables quicker install-ation for prototype evaluation and algorithm development.



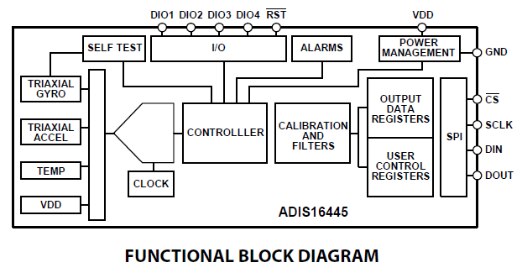

The ADIS16445ADIS16445 iSensorRegistered device is a complete inertial system that includes a triaxial gyroscope and a triaxial accelerometer. Each sensor in the ADIS16445 combines industry-leading iMEMSRegistered technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear accel-eration (gyroscope bias). As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements.



Key Applications: Platform stabilization and control, Navigation, Robotics.

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode

Technical Documents


Learning Center



TypeDescription
DatasheetADI: Datasheet for ADIS16445 Compact, Precision Six Degrees of Freedom Inertial Sensor Data Sheet (Rev 0)



Design Elements



TypeDescription
Application LibraryADI: Application Library for IMU Evaluation Software for the EVAL-ADIS System (Version 1.9.0)
CAD ModelADI: 3D CAD Model for ADIS16445



Back to top



Video




Video1Video2
You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview
You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview



Back to top



Kit Features




Features of ADIS16445ADIS16445 Inertial Sensor:



  • Triaxial digital gyroscope with digital range scaling
    • ±62°/sec, ±125°/sec, ±250°/sec settings
    • Axis-to-axis alignment, <0.05°
  • Triaxial digital accelerometer, ±5 g minimum
  • Autonomous operation and data collection
    • No external configuration commands required
    • 175 ms start-up time
  • Factory calibrated sensitivity, bias, and axial alignment
    • Calibration temperature range: −40°C to +70°C
  • SPI-compatible serial interface
  • Embedded temperature sensor
  • Programmable operation and control
    • Automatic and manual bias correction controls
    • Bartlett window FIR length, number of taps
    • Digital I/O: data ready, alarm indicator, general-purpose
    • Alarms for condition monitoring
    • Enable external sample clock input up to 1.1 kHz
    • Single command self test
  • Single-supply operation: 3.15 V to 3.45 V
  • 2000 g shock survivability
  • Operating temperature range: −40°C to +85°C
