Analog Devices: EVAL-AD9838SDZ Evaluation Board for the AD9838 Direct Digital Synthesis

BUY NOWBUY NOWDevelopment ToolsTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

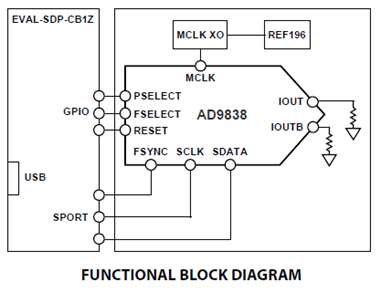

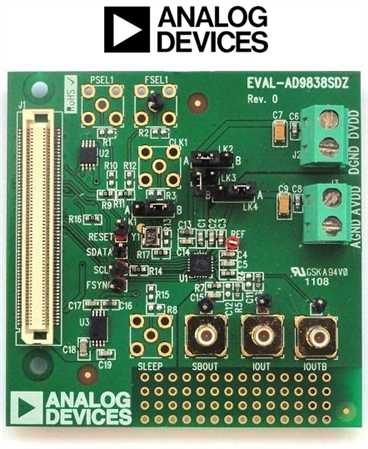

The EVAL-AD9838SDZEVAL-AD9838SDZ  Evaluation board is used in conjunction with a EVAL-SDP-CB1ZEVAL-SDP-CB1Z SDP-B System Development Platform board (sold separately) available from Analog Devices, Inc and software allowing the AD9838AD9838 to be controlled from a SDP-B board. The USB-to-SPI communication to the AD9838 is completed using this BlackfinRegistered-based development board. A high performance, on-board 16 MHz trimmed general oscillator is available to use as the master clock for the AD9838 system. Various links and SMB connectors are also available on the EVAL-AD9838SDZ board to maximize usability.



The AD9838AD9838 is a 16 MHz low power DDS device capable of producing high performance sine and triangular outputs. It also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 20 mW of power at 3 V makes the AD9838 an ideal candidate for power-sensitive applications.



The AD9838AD9838 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The AD9838 has a power-down pin (SLEEP) that allows external control of the power-down mode. Sections of the device that are not being used can be powered down to minimize current consumption. For example, the DAC can be powered down when a clock output is being generated.



Key Applications: Frequency stimulus/waveform generation, Frequency phase tuning and modulation, Low power RF/communications systems, Liquid and gas flow measurement, Sensory applications: proximity, motion, and defect detection, Test and medical equipment

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Development Tools




SDP-B System Development Platform EVAL-SDP-CB1ZEVAL-SDP-CB1Z Features:

  • Blackfin Processor ADSP-BF527
  • USB 2.0 Interface to PC
  • JTAG header footprint
  • 32MB SDRAM
  • 2 x Small Footprint 120 Pin Connectors
  • Configurable Peripheral Interfaces - SPI - SPORT - I2C - GPIOs - Parallel - Timers



Back to top



Technical Documents


Learning Center



TypeDescription
User GuideADI: User Guide (UG-268) for Evaluating the AD9838 11 mW Power, 2.3 V to 5.5 V, 75 MHz Complete DDS
DatasheetADI: Datasheet for AD9838 - 11 mW Power, 2.3 V to 5.5 V, Complete DDS (Rev A)
Application NoteADI: Application Note (AN-1044) for Programming the AD5932 for Frequency Sweep and Single Frequency Outputs
Application NoteADI: Application Note (AN-1070) for Programming the AD9833/AD9834



Design Elements



TypeDescription
CAD ModelADI: CAD Model for AD9838BCPZ-RL (BXL)
Reference DesignADI: Reference Design for AD9838 FMC-SDP Interposer and Evaluation Board / Xilinx KC705
Application LibraryADI: Application Library for BeMicro FPGA Project for AD9838 with Nios driver
Application LibraryADI: Software Code for AD9838 - Microcontroller No-OS Driver



Back to top



Video




You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview

Back to top



Kit Features




Features of EVAL-AD9838SDZEVAL-AD9838SDZ AD9838AD9838 Evaluation Board:



  • Full featured evaluation board for the AD9838AD9838 evaluation board
  • Graphical user interface software for board control and data analysis
  • Connector to EVAL-SDP-CB1ZEVAL-SDP-CB1Z system demonstration platform (SDP) board
  • Various power supply and reference link options



Features of AD9838AD9838 Direct Digital Synthesis:



  • 2.3 V to 5.5 V power supply
  • MCLK speed: 16 MHz (B grade), 5 MHz (A grade)
  • Output frequency up to 8 MHz
  • Sinusoidal and triangular outputs
  • On-board comparator
  • 3-wire SPI interface
  • Extended temperature range: −40°C to +125°C
  • Power-down option
  • 11 mW power consumption at 2.3 V
  • 20-lead LFCSP

Back to top

Kit Contents




The Analog Devices EVAL-AD9838SDZEVAL-AD9838SDZ supplied with below contents:



  • EVAL-AD9838SDZEVAL-AD9838SDZ AD9838AD9838 Evaluation Board
  • Software CD

Back to top
