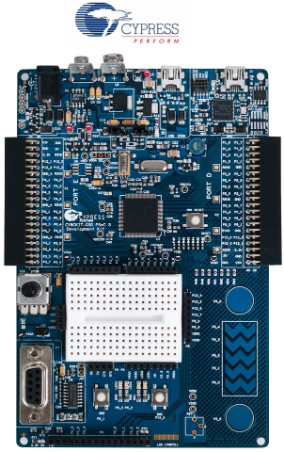

The CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit enables you to evaluate, develop and prototype high precision analog, low-power and low-voltage applications powered by Cypress’s CY8C38 high precision analog device family. Additionally, this kit supports the PSOC Expansion Board Kit ecosystem as a compatible host platform. This kit is for PSoC 3 development specifically.
This kit is specifically designed for analog performance. The noise floor on these kits is very low. Care has been taken to separate the analog and the digital domain, separate regulators are also available. Separate ground planes are provided. We have achieved ENOB very close to 20 bits on this kit. Provision has been provided to add an external precision voltage reference if needed.
Besides the analog, this kit is also meant to demonstrate the low power operation of PSoC3/PSoC5. PSoC3 chip is soldered to the board, this way the leakage currents are reduced significantly compared to the CY8CKIT-001. Special terminals are provided to enable the boost converter operation without much modifications. Jumpers have been provided to remove power to RS232 converter, Potentiometer and to have a single regulator for Analog and digital domain and evaluate the low power operation of PSoC3.
It has got an onboard programmer (Cypress USB chip based), which lets you program PSoC3/PSoC5 without connecting Miniprog3. Provision has been provided to program using Miniprog3 as well.
The CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit is based on the PSoC 3 family of devices. PSoC 3 is a Programmable System-on-Chip combination of peripherals and integrated proprietary IP to meet your application requirements.
Key Applications: Consumer, Industrial, and Medical applications | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Cypress | PSoC Createor | PSoC 3 / PSoC 4 / PSoC 5 / PSoC 5LP | PSoC |
| Programmer Software | Cypress | PSoC Programmer | All PSoC | The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer. |
| IDE | ARM | Keil C51 | All 8051 Core | The Keil C51 development tools for the 8051 Microcontroller Architecture support every level of software developer from the professional applications engineer to the student just learning about embedded software development. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | Cypress | CY8CKIT-002CY8CKIT-002 | PSoC 1 / PSoC 3 / PSoC 5 | MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures and debug tool for PSoC 3 and PSoC 5 architectures |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | All 8051 Core | ULINK2 Debug Adapter |
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | Cypress: Quick Start Guide for CY8CKIT-030 PSoC 3 Development Kit |
| User Guide | Cypress: User Guide for PSoC 3 Development Kit CY8CKIT-030 |
| Datasheet | Cypress: Datasheet for CY8C38 (PSoC 3) family |
| Product Brief | Cypress: Product brief for CY8CKIT-030 PSoC 3 Development Kit |
| Application Note | Cypress: AN54181 - Getting started with a PSoC 3 design project |
Design Elements
| Type | Description |
|---|---|
| BOM | Cypress: BOM for CY8CKIT-030 PSoC 3 Board Design Files |
| Layout | |
| Schematic | Cypress: Schematic for CY8CKIT-030 PSoC 3 Board Design Files |
| Application Library | Cypress: Software code for CY8CKIT-030 PSoC 3 Development Kit Setup |
| Application Library | Cypress: Sample Code for CY8CKIT-030 |
Video
| Video 1 | Video 2 |
|---|---|

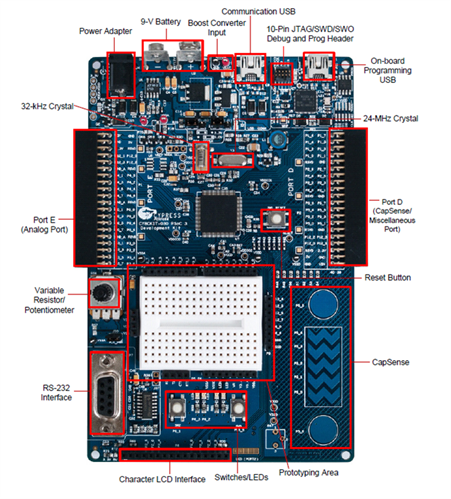

Kit Features
Key Features for the CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit:
- The power supply system on this board is versatile
- Programming Interface
- Using the on-board programming interface
- Using the JTAG/SWD programming interface with a MiniProg3
- USB Communication
- Boost Convertor
- 32-kHz and 24-MHz Crystal
- Protection Circuit
- PSoC 3 Development Kit Expansion Ports
- RS-232 Interface
- Prototyping Area
- Character LCD module
- CapSense Sensors
Key Features for PSoC 3 Family:
Single cycle 8051 CPU
Low voltage, ultra low-power
Versatile I/O system
Digital peripherals
Analog peripherals (1.71 V ≤ VDDA ≤ 5.5 V)
Programming, debug, and trace
Precision, programmable clocking
Kit Contents
The Cypress CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit is supplied with below contents:
- PSoC 3 Development Board
- LCD Character Display
- USB Cable
- Quick Start Guide
- Kit CD, which includes: PSoC Creator, PSoC Programmer, Projects and Documentation
