Cypress: CY3280-22x45 Universal CapSense Controller Board

BUY NOWBUY NOW

Overview

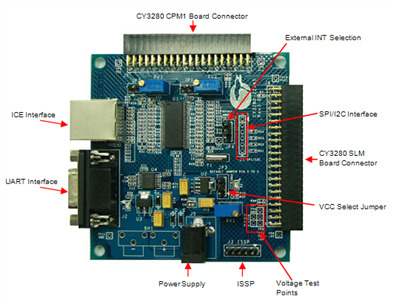

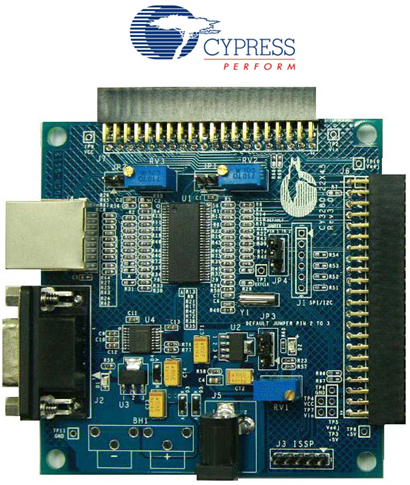

The CY3280-22x45CY3280-22x45 Universal CapSense Controller Board enables you to evaluate CapSense Plus capability of CY8C22x45 device family. This kit is equipped with an on-chip debugger device (OCD) that allows you to develop and debug the application as per your need. The Universal CapSense Controller Kit CY3280-22x45 will provide you with the hardware to evaluate Cypress’s best in class CapSense, communicate with other devices using UART or I2C and an additional connector that can be used to connect your custom hardware to interface sensors or output devices based on your requirements.

The CY3280-22x45CY3280-22x45 family of PSoC includes the following devices: CY8C21345-24SXICY8C21345-24SXI, CY8C22345-24SXICY8C22345-24SXI, and CY8C22545-24AXICY8C22545-24AXI. The 56-pin OCD part is assembled in the CY3280-22X45 Universal CapSense Controller Board. This part is used only for in-circuit debugging. The CapSense feature of CY8C22X45 can be implemented with the CY3280-SLMCY3280-SLM Universal CapSense Linear Slider Module. The two boards are connected by a 44-pin connector. The other features of CY3280-22X45 can be implemented with the CY3280-CPM1CY3280-CPM1 Universal CapSense Plus Controller Module. The two boards are connected by a 40-pin connector. The CY3280-SLM Universal CapSense Linear Slider Module and the CY3280-CPM1 Universal CapSense Plus Controller Module can be connected with the CY3280-22X45 Universal CapSense Controller Board simultaneously.

The PSoC CY8C22x45 family consists of many Mixed Signal Array with On-Chip Controller devices. These devices are designed to replace multiple traditional MCU-based system components with one low cost single-chip programmable device. PSoC devices include configurable blocks of analog and digital logic, and programmable interconnects. This architecture enables the user to create customized peripheral configurations that match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of convenient pinouts and packages.

Note:

If external OSC used, please power the power with external supply not MiniProg1 or I2CUSB Bridge.
OCD parts are not available for production.

Key Applications: Home appliances, Learning kits, Automation, Liquid level sensing, Dispenser machines, Medical instruments

More Development Kits and Tools
	More Cypress Development Kits		Cypress Overview
	Knode Development Kits & Platform Room		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Cypress	PSoC Designer	PSoC 1	PSoC Designer IDE accelerates system bring-up and time-to-market. Develop the applications using a library of pre-characterized analog and digital peripherals in a drag-and-drop design environment. Then, customize the design leveraging the dynamically generated API libraries of code. Finally, debug and test the designs with the integrated debug environment including in-circuit emulation and standard software debug features. PSoC Designer supports the entire library of PSoC 1 devices.
Programmer Software	Cypress	PSoC Programmer	All PSoC	The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer.

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger	Cypress	CY3215-DKCY3215-DK	PSoC 1	PSoC 1 In-Circuit Emulation Development Kit
Emulator / Debugger / Programmer	Cypress	CY8CKIT-002CY8CKIT-002	PSoC 1 / PSoC 3 / PSoC 5	MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures and debug tool for PSoC 3 and PSoC 5 architectures
Programmer	Cypress	CY3217CY3217	PSoC 1 (CY25/26xxx devices)	Miniprog1 programmer

Technical Documents

Learning Center

Type	Description
User Guide	Cypress: User Guide for CY3280-22x45 Universal CapSense Controller Board
User Guide	Cypress: Quick Start Guide for CY3280-22x45 Universal CapSense Controller Board
Design Techniques	Cypress: Design Techniques on Getting Started with CapSense
Application Note	Cypress: AN50475 - Application Note for Induction Cooker Design with CapSensese
Application Note	Cypress: AN56384 - Application Note for PSoC 1 Segment LCD Direct Drive
Application Note	Cypress: AN2096 - Application Note for Using the PSoC 1 ADCINC Analog to Digital Converter

Design Elements

Type	Description
Schematics	Cypress: Schematic File for CY3280-22x45 Universal CapSense Controller Board
BOM	Cypress: BOM File for CY3280-22x45 Universal CapSense Controller Board
Layout	Cypress: Layout File for CY3280-22x45 Universal CapSense Controller Board
