Cypress offers CY4607CY4607 HX2VL very low-power USB 2.0 compliant 4-Port hub development kit for developing a fixed-function, very low-power 4-port USB 2.0 hub that is production ready and USB-IF compliant.
HX2VL
The Cypress HX2VL uses 16 bytes of configuration settings, which define how the part interacts with the attached USB device(s) and the USB host. The HX2VL also uses a standard set of USB string descriptors to provide information about the product to the USB host. The HX2VL contains default configuration settings in its internal ROM. Circuit designs using the Cypress HX2VL may store the configuration settings and USB string descriptors externally on a I2C or SPI EEPROM.
The CY7C6563XCY7C6563X is a part of the HX2VL portfolio. This device option is for ultra low power but high performance applications that require up to four downstream ports. All downstream ports share a single transaction translator.
Key Applications: Docking stations, Standalone hubs, Monitor hubs, Multi-function printers, Digital televisions, Advanced port replicators, Keyboard hubs, Gaming consoles | |||||||||||
| ||||||||||||
Development Tools
Software tools:
Cypress HX2VL Configuration Utility Blaster:
The Cypress HX2VL uses 16 bytes of configuration settings, which define how the part interacts with the attached USB device(s) and the USB host. The HX2VL also uses a standard set of USB string descriptors to provide information about the product to the USB host. The HX2VL contains default configuration settings in its internal ROM. Circuit designs using the Cypress HX2VL may store the configuration settings and USB string descriptors externally on a I2C or SPI EEPROM.
HX2VL supports field-programming of the I2C EEPROM connected to it. The Cypress HX2VL Configuration Utility Blaster is used to edit the configuration settings and USB descriptors for the HX2VL stored in the I2C EEPROM. The configuration settings and USB string descriptors can be stored in a HX2VL config (.iic) file on the PC, or the utility can work directly with settings and descriptors from the I2C EEPROM of a USB-attached HX2VL-based hub.
The utility is intended to give developers an opportunity to develop an optimal set of HX2VL configuration settings and USB string descriptors by experimenting with those settings and descriptors on their product. Once an optimal configuration is developed, it can be used with the utility for mass production.
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | Cypress: Schematic File for CY4607 HX2VL Very Low-Power USB 2.0 Compliant 4-Port Hub Development Kit |
| Application Library | Cypress: Application Library for HX2VL Configuration Utility Blaster |
| Application Library | Cypress: Application Library for CY4607 Kit Setup |
| Simulation Model | Cypress: IBIS Model for CY7C65632/34/42 |
Video
Kit Features
Features of CY4607CY4607 HX2VL 4-Port Hub Development Kit:
- Features CY7C65632CY7C65632 HX2VL
Very Low Power USB 2.0 Hub Controller - Compliance with USB 2.0 specification
- 480/12/1.5-Mbps operation
- Very Low-power consumption
- Highly integrated solution for reduced BOM cost
- Supports Internal or External Voltage regulation
- Space Saving 7x7mm 48-pin TQFP package.
- Maximum configurability using EEPROM programming.
- Individual or ganged port power switching and over current detection.
Features of CY7C65632CY7C65632 HX2VL Very Low Power USB 2.0 Hub Controller:
- High performance, low-power USB 2.0 Hub, optimized for low cost designs with minimum Bill-of-material
- USB 2.0 hub controller
- Compliant with USB 2.0 specification
- Up to four downstream ports support
- Downstream ports are backward compatible with FS, LS
- Single transaction translator (TT) for low cost
- Very low power consumption
- Supports bus-powered and self-powered modes
- Auto switching between bus-powered and self-powered
- Single MCU with 2K ROM and 64 byte RAM
- Lowest power consumption
- Highly integrated solution for reduced BOM cost
- Internal regulator – single power supply 5 V required
- Provision of connecting 3.3 V with external regulator
- Integrated upstream pull-up resistor
- Integrated pull-down resistors for all downstream ports
- Integrated upstream/downstream termination resistors
- Integrated port status indicator control
- 12 MHz +/– 500 ppm external crystal with drive level 600 μW (integrated PLL) clock input with optional 27/48 MHz oscillator clock input
- Internal power failure detection for ESD recovery
- Downstream port management
- Support individual and ganged mode power management
- Overcurrent detection
- Two port status indicators per downstream port
- Slew rate control for EMI management
- Maximum configurability
- VID and PID are configurable through external EEPROM
- Number of ports, removable/non-removable ports are configurable through EEPROM and I/O pin configuration
- I/O pins can configure gang/individual mode power switching, reference clock source and polarity of power switch enable pin
- Configuration options also available through mask ROM
- Supports 0 °C to 70 °C temperature range
- Available in space saving 48-pin (7 × 7 mm) TQFP
Kit Contents
The Cypress CY4607CY4607 HX2VL 4-Port Hub Development Kit supplied with below contents:

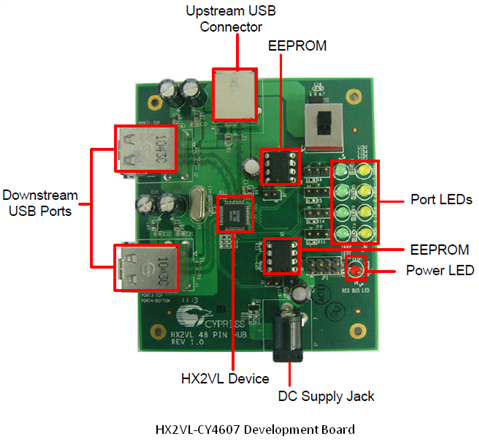

- CY7C65632CY7C65632-based USB 2.0 4-port Hub Board
- 5 VDC, 2.5A wall power supply
- USB cable (A-B)
- Quick Start Guide booklet.
