 | Kit Overview

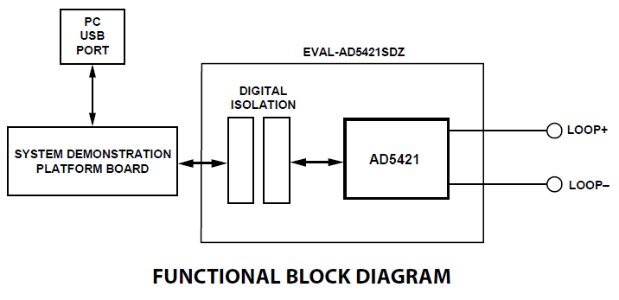

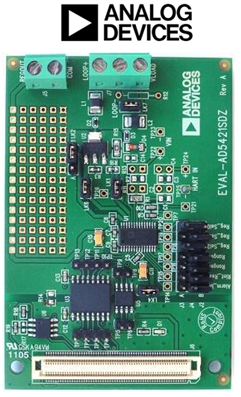

The EVAL-AD5421SDZEVAL-AD5421SDZ is a full-featured evaluation board, designed to allow the user to easily evaluate all features of the AD5421AD5421 loop-powered 4 mA to 20 mA DAC. The AD5421 pins are accessible at on-board connectors for external connection.
The AD5421AD5421 evaluation board is controlled via the PC’s USB port in conjunction with Analog Device’s system demonstration platform board. The SDP-B System Demonstration Platform (EVAL-SDP-CB1ZEVAL-SDP-CB1Z) should be purchased separately board allows the evaluation board to be controlled through the USB port of a Windows
The AD5421AD5421 is an integrated device designed for use in loop-powered 4 mA to 20 mA smart transmitter applications. The AD5421, in a single chip, provides a 16-bit DAC and current amplifier for digital control of the loop current, a voltage regulator to power the entire transmitter, a voltage reference, fault alert functions, flexible SPI-compatible serial interface, gain and offset adjust registers as well as other features and functions.
Key Applications: Industrial Process Control, 4mA to 20mA loop-powered transmitters, Smart transmitters, HART network connectivity. | |||||||||||
| ||||||||||||
Development Tools
SDP-B System Development Platform EVAL-SDP-CB1ZEVAL-SDP-CB1Z Features:
- Blackfin Processor ADSP-BF527
- USB 2.0 Interface to PC
- JTAG header footprint
- 32MB SDRAM
- 2 x Small Footprint 120 Pin Connectors
- Configurable Peripheral Interfaces - SPI - SPORT - I2C - GPIOs - Parallel - Timers
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | ADI: User Guide (UG-250) for AD5421 Evaluation Board |
| User Guide | |
| User Guide | |
| Datasheet | ADI: Datasheet for AD5421: 16-Bit, Serial Input, Loop-Powered, 4 mA to 20 mA DAC (Rev F) |
| Training Video | ADI: Training Video for AD5421 - 16-bit 4mA to 20mA DAC |
| Solution Guide | ADI: Solution Guide for Industrial ICs Bulletin |
| Solution Guide | ADI: Solution Guide for Digital to Analog Converters ICs |
Design Elements
| Type | Description |
|---|---|
| Application Library | ADI: Application Library for BeMicro FPGA Project for AD5421 with Nios driver |
| Application Library | ADI: Software Code for AD5421 Microcontroller No-OS Driver |
| Reference Design | ADI: Reference Design for AD5421 FMC-SDP Interposer and Evaluation Board / Xilinx KC705 |
| CAD Model | ADI: CAD Model for AD5421ACPZ-REEL7 |
| CAD Model | ADI: CAD Model for AD5421BREZ |
Video
| Video1 | Video2 |
|---|---|
Kit Features
Features of EVAL-AD5421SDZEVAL-AD5421SDZ Evaluation Board:
- Full-featured evaluation board for the AD5421AD5421 DAC
16-bit resolution and monotonicity
Pin selectable NAMUR-compliant ranges
4 mA to 20 mA
3.8 mA to 21 mA
3.2 mA to 24 mA
NAMUR-compliant alarm currents
Downscale alarm current = 3.2 mA
Upscale alarm current = 22.8 mA/24 mA
Total unadjusted error (TUE): 0.05% maximum
INL error: 0.0035% FSR maximum
Output TC: 3 ppm/°C typical
Quiescent current: 300 μA maximum
Flexible SPI-compatible serial digital interface with Schmitt triggered inputs
On-chip fault alerts via FAULT pin or alarm current
Automatic readback of fault register on each write cycle
Slew rate control function
Gain and offset adjust registers
On-chip reference TC: 4 ppm/°C maximum
Selectable regulated voltage output
Loop voltage range: 5.5 V to 52 V
- Link options
- PC control in conjunction with Analog Devices, Inc., system demonstration platform (SDP)
- PC software for control
Kit Contents
The Analog Devices EVAL-AD5421SDZEVAL-AD5421SDZ supplied with below contents:
- EVAL-AD5421SDZ Evaluation Board
