Analog Devices: CN0274 Reference Design for Ultralow Power Standalone Motion Switch

BUY NOWBUY NOWDevelopment ToolsTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

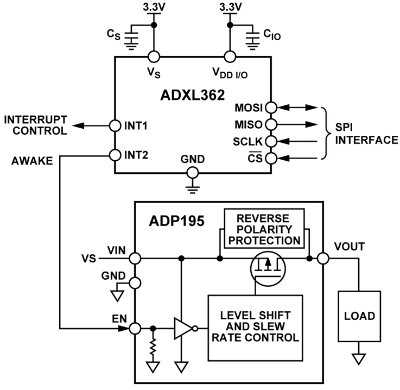

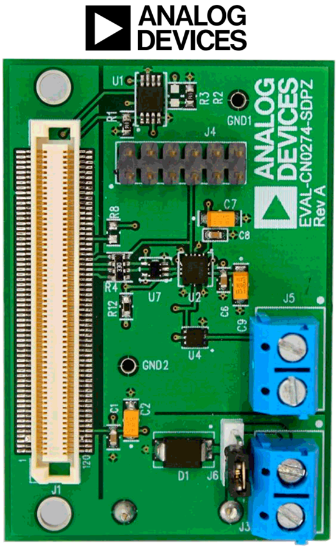

The Analog Devices EVAL-CN0274-SDPZEVAL-CN0274-SDPZ Evaluation Board Circuit provides an ultralow power, 3-axis, motion activated power switch solution capable of controlling up to 1.1 A of load current. The circuit is ideal for applications where extended battery life is critical. When the switch is off, the battery current is less than 300 nA, and when the switch is on, it draws less than 3 μA. The circuit provides an industry leading, low power motion sensing solution suitable for wireless sensors, metering devices, home healthcare, and other portable applications.



The ADXL362ADXL362 is an ultralow power, 3-axis accelerometer that consumes less than 100 nA in wake-up mode. Unlike accelerometers that use power duty cycling to achieve low power consumption, the ADXL362 does not alias input signals by under sampling; it samples continuously at all data rates. There is also an on-chip, 12-bit temperature sensor accurate to ±0.5°.



The ADXL362ADXL362 provides 12-bit output resolution and has three operating ranges, ±2 g, ±4 g, and ±8 g. It is specified over a minimum temperature range of −40°C to +85°C. For applications where a noise level less than 480 μg/√Hz is desired, either of its two lower noise modes (down to 120 μg/√Hz) can be selected at a minimal increase in supply current.



The ADP195 is a high-side load switch designed for operation between 1.1 V and 3.6 V and is protected against reverse current flow from output to input. The device contains a low on-resistance, P-channel MOSFET that supports over 1.1 A of continuous load current and minimizes power losses.



This circuit uses the EVAL-SDP-CS1ZEVAL-SDP-CS1Z (should be purchased seperately) System Demonstration Platform (SDP-S) evaluation board and the EVAL-CN0274-SDPZEVAL-CN0274-SDPZ circuit board. The two boards have 120-pin mating connectors, allowing for the quick setup and evaluation of the performance of the circuit.



The EVAL-CN0274-SDPZEVAL-CN0274-SDPZ contains the circuit to be evaluated and the EVAL-SDP-CS1ZEVAL-SDP-CS1Z is used with the CN0274 evaluation software to capture the data from the EVAL-CN0274-SDPZ. Because the ADXL362 requires a relatively small amount of power in both the asleep and awake states, it is possible to power the EVAL-CN0274-SDPZ from the digital data lines coming out of the EVAL-SDP-CS1ZEVAL-SDP-CS1Z.



Key Applications: Access Control, Asset Tracking, Home Healthcare, Patient Monitoring

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Development Tools




  • PC with a USB port and WindowsRegistered XP or Windows VistaRegistered (32-bit), or WindowsRegistered 7 (32-bit)
  • EVAL-CN0274-SDPZEVAL-CN0274-SDPZ circuit evaluation board
  • EVAL-SDP-CS1ZEVAL-SDP-CS1Zcontroller board
    • USB to Serial Engine
    • 1 xsmall footprint 120 Pin Connector
    • Configurable interface ( SPI, I2C, GPIO)
    • USB 2.0 interface to the PC
  • CN0274 evaluation software
  • A power supply: 3.0 V or 2 AAA batteries

Back to top



Technical Documents


Learning Center



TypeDescription
User ManualADI: User Manual for CN-0274 Ultralow Power, 3-Axis, Motion Activated Switch
User GuideADI: User Guide for EVAL-SDP-CB1Z
User GuideADI: Getting Started with SDP
DatasheetADI: Data Sheet for ADSP-BF527 - Blackfin Embedded Processor
DatasheetADI: Datasheet for ADXL362 - Micropower Three-Axis, 2g/4g/8g Digital-Output MEMS Accelerometer (Rev A)
DatasheetADI: Datasheet for ADP195 - Logic Controlled, High-Side Power Switch with Reverse Current Blocking (Rev C)



Design Elements



TypeDescription
SchematicsADI: Schematics for EVAL-CN0274-SDPZ Evaluation Board
BOMADI: Bill Of Material (BOM) for EVAL-CN0274-SDPZ Evaluation Board
LayoutADI: Layout for EVAL-CN0274-SDPZ
Application LibraryADI: Software Code for ADXL362 Generic Driver
Application LibraryADI: Software Code for ADXL362 PIC32 Driver
Application LibraryADI: Software Code for ADXL362 DSPIC33 Driver
Application LibraryADI: Software Code for ADXL362 chipKIT Driver



Back to top



Video


You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview





Back to top



Kit Features





Key Features for ADXL362ADXL362 are as below:

  • Ultralow power
  • Power can be derived from coin cell battery
    • 1.8 μA @ 100 Hz ODR, 2.0 V supply
    • 3.0 μA @ 400 Hz ODR, 2.0 V supply
  • 270 nA motion activated wake-up mode
  • 10 nA standby current
  • High resolution: 1 mg/LSB
  • Built-in features for system-level power savings:
    • Adjustable threshold sleep/wake modes for motion activation
    • Autonomous interrupt processing, without need for microcontroller intervention, to allow the rest of the system to be turned off completely
    • Deep embedded FIFO minimizes host processor load
    • Awake state output enables implementation of standalone, motion activated switch
  • Low noise down to 175 ƒÊg/�ãHz
  • Wide supply and I/O voltage ranges: 1.6 V to 3.5 V
    • Operates off 1.8 V to 3.3 V rails
  • Acceleration sample synchronization via external trigger
  • On-chip temperature sensor
  • SPI digital interface
  • Measurement ranges selectable via SPI command



Key Features for ADP195 are as below:

  • Ultralow on resistance (RDSON)
  • 50 mΩ @ 3.6 V, 55 mΩ @ 2.5 V, 65 mΩ @ 1.8 V, 100 mΩ @ 1.2 V
  • Input voltage range: 1.1 V to 3.6 V
  • 1.1 A maximum continuous operating current
  • Low enable control logic threshold can be operated from 1.2 V to 3.3 V
  • Low 1 μA (typical) ground current @ 1.8 V
  • Low 4 μA (maximum) reverse current @ 3.6 V
  • Ultralow shutdown current: 0.7 μA (typical) @ 1.8 V
  • Reverse current blocking





Back to top

Kit Contents




The Analog Devices EVAL-CN0274-SDPZEVAL-CN0274-SDPZ  kit is supplied with below contents:

  • Evaluation Board
