| Kit Overview

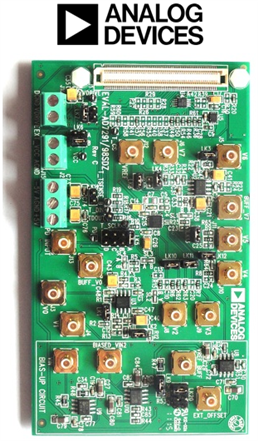

The EVAL-AD7291SDZEVAL-AD7291SDZ is a fully featured evaluation board for the AD7291AD7291. This board operates in stand alone mode or in conjunction with the SDP-B System Development Platform (EVAL-SDP-CB1ZEVAL-SDP-CB1Z) should be purchased separately. When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. When operated in standalone mode the ADZS-BRKOUT-EX3ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.

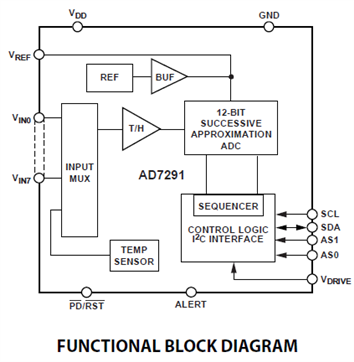

The AD7291AD7291 is a 12-bit, low power, 8-channel, successive approximation analog-to-digital converter (ADC) with an internal temperature sensor. The part operates from a single 3.3 V power supply and features an I2C-compatible interface. The part contains a 9-channel multiplexer and a track-and-hold amplifier than can handle frequencies up to 30 MHz. The device has an on-chip 2.5 V reference that can be disabled to allow the use of an external reference.
The AD7291AD7291 includes a high accuracy band gap temperature sensor, which is monitored and digitized by the 12-bit ADC to give a resolution of 0.25°C. The AD7291 offers a programmable sequencer, which enables the selection of a preprogrammable sequence of channels for conversion.
Key Applications: Data Conversion | |||||||||||
| ||||||||||||
Development Tools
SDP-B System Development Platform (EVAL-SDP-CB1ZEVAL-SDP-CB1Z) Features
- Blackfin Processor ADSP-BF527
- USB 2.0 Interface to PC
- JTAG header footprint
- 32MB SDRAM
- 2 x Small Footprint 120 Pin Connectors
- Configurable Peripheral Interfaces - SPI - SPORT - I2C - GPIOs - Parallel - Timers
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Application Library | ADI: Application Library for BeMicro FPGA Project for AD7291 with Nios driver |
| Application Library | ADI: Software Code for AD7291 - Microcontroller No-OS Driver |
| Reference Design | ADI: Reference Design for AD7291 FMC-SDP Interposer and Evaluation Board / Xilinx KC705 |
| CAD Model | ADI: CAD Model for AD7291BCPZ (BXL) |
Video
Kit Features
Features of EVAL-AD7291SDZEVAL-AD7291SDZ Evaluation Board:
- The EVAL-AD7291SDZEVAL-AD7291SDZ is a fully featured evaluation board for the AD7291AD7291 SAR ADC
- 12-bit SAR ADC
- 8 single-ended analog input channels
- Analog input range: 0 V to 2.5 V
- 12-bit temperature-to-digital converter
- Temperature sensor accuracy of ±1°C typical
- Channel sequencer operation
- Specified for VDD of 2.8 V to 3.6 V
- Logic voltage VDRIVE = 1.65 V to 3.6 V
- Internal 2.5 V reference
- I2C-compatible serial interface supports standard and fast speed modes
- Out of range indicator/alert function
- Autocycle mode
- Power-down current: 12 μA maximum
- 12-bit SAR ADC
- Board operates in stand alone mode or in conjunction with the System Development Platform EVAL-SDP-CB1ZEVAL-SDP-CB1Z
- When operated in standalone mode the ADZS-BRKOUT-EX3ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins
Kit Contents
The Analog Devices EVAL-AD7291SDZEVAL-AD7291SDZ supplied with below contents:
- EVAL-AD7291SDZEVAL-AD7291SDZ Evaluation Board
