Embest: SBC8140 Single Board Computer using Mini8510 Processor Card

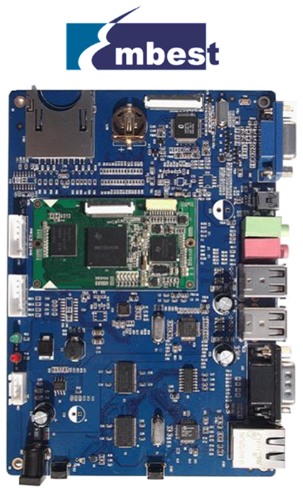

Overview   The SBC8140SBC8140 is a Single Board Computer designed by Embest using the Mini8510Mini8510 processor card as the CPU core board. The board is specially targeting those applications requiring high definition video or large-scale data processing such as 2D/3D game console products, portable devices, high-end industrial equipment, medical devices, and intelligent home systems.   TheMini8510Mini8510 core board has the DM3730CUSADM3730CUSA microcontroller, 256MByte DDR SDRAM, 512MByte NAND Flash, RTC, LEDs, and a Camera interface as well as a 10-pin JTAG interface on board. It is connected with the SBC8140SBC8140 expansion board through two 1.27mm space 2*45-pin dip connectors. The SBC8140 expansion board has exposed many of other features of the DM3730CUSADM3730CUSA through headers and connectors including serial ports, USB Host, OTG, Ethernet, Audio In/Out, Keyboard, LCD/Touch Screen interface, VGA, and SD card.   Embest offers a complete software development package to customers. The board supports both Linux 2.6.21 and WindowsCE 6.0 operating systems and is provided with complete basic drivers which enable a quick method to evaluate the TI DM3730CUSADM3730CUSA processor and customize application software.   Ordering Information: MPN Description SBC8140 with 4.3 inch LCDSBC8140 with 4.3 inch LCD Single Board Computer using Mini8510 processor card with 4.3 inch LCD SBC8140 with 7 inch LCDSBC8140 with 7 inch LCD Single Board Computer using Mini8510 processor card with 7 inch LCD Mini8510Mini8510 Processor Card  based on TI's DM3730CUSADM3730CUSA Key Applications: high definition video or large-scale data processing such as 2D/3D game console products, portable devices, high-end industrial equipment, medical devices, and intelligent home systems.

More Development Kits and Tools More Embest Development Kits Embest CooCox Development Tools Knode Development Kits & Platform Room element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes  compilers for each of TI's device families, a source code editor, project build environment, debugger, profiler, simulators, a real-time operating system and many other features. Learn More
IDE	ARM	DS-5	ARM Cortex-A  / Cortex-R / ARM9 / ARM11	The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	ARM	DSTRM-KT-0181ADSTRM-KT-0181A	ARM7 / ARM9 / ARM11 / Cortex-A / Cortex-R / Cortex-M	DSTREAM Debug and Trace Unit
Debuggers, Emulators & JTAG Tools	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Design Elements

Video

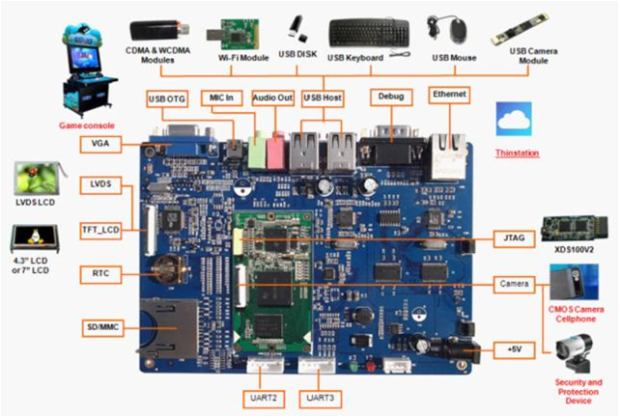

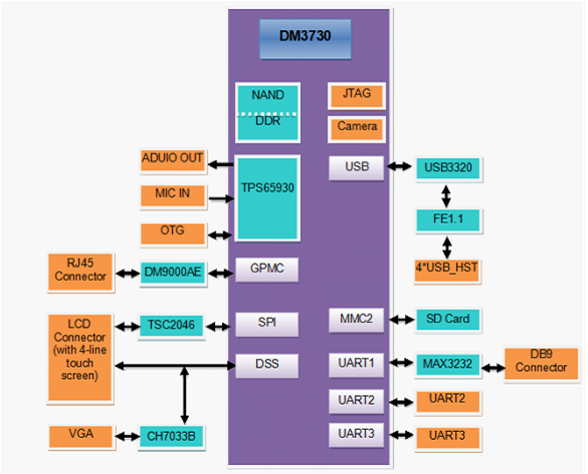

Kit Features

Hardware Features:

  Mechanical Parameters

• Dimensions: 67 mm x 37 mm
• Power Consumption: 1A @ 3.3V
• Temperature Range: 0 ~ 70 Celsius
• Temperature Range: 20% ~ 90%

  Processor

• TI DM3730CUSADM3730CUSA DaVinci Digital Media Processor, 1GHz ARM Cortex-A8 Core, 800-MHz TMS320C64x+ DSP Core (pin-to-pin compatible with TI AM3715)

Memory

• 256MByte DDR SDRAM, 166MHz
• 512MByte NAND Flash, 16bit

  Input Interface

• 12-bit Camera interface (30-pin FPC connector, support CCD or CMOS camera)
• 1-channel 4-wire JTAG interface (10-pin 1.0mm pitch connector)
• 6 LEDs (programmable status LEDs)
• 2-channel SPI
• GPMC bus (16-bit data bus, 10-bit address bus, 4 chip-selection signals and several control signals)
• 3-channel 5-wire UARTs
• 1-channel ULPI (USB1 HS)
• Audio in/out
• 1-channel I2C
• 2-channel McBSP (McBSP1 and McBSP3, McBSP3 is multiplex with UART2)
• 2-channel SD/MMC: MMC1 (8-wire), MMC2 (4-wire)
• 24-bit DSS interface

Mechanical Parameters

• Dimensions: 165.00 mm x 115.00 mm
• Input Voltage: +5V
• Temperature Range: 0 ~ 70 °C
• Humidity Range: 20% ~ 90%

  Audio/Video Interfaces

• Audio input interface
• A two-channel Audio output interface
• A TFT LCD interface, resolution supporting up to 2048*2048
• 4 line Touch Screen
• Standard VGA interface, resolution supporting up to 1024*768

  Data Transfer Interface

• Serial port:
  • 5 line Debug serial port, RS232 voltage (UART1, via DB9 connector)
  • 3 line serial port, TTL voltage (UART2, via 6-pin connector)
  • 5 line serial port, RS232 voltage (UART3, via 6-pin connector)
• USB port:
  • USB2.0 OTG, High-speed, 480Mbps (Mini-USB connector)
  • Four USB2.0 Hosts, High-speed, 480Mbps (USB A Type)
• SD card slot
• Ethernet: 10/100Mbps, RJ45 connector

  Input Interface

• BOOT button
• RESET button
• Two USER buttons
• Power indicator

Software

The SBC8140SBC8140 Single Board Computer is provided with Windows CE 6.0.net BSP and Linux 2.6.32 BSP with steady-going drivers, many of which are all in source code. Please refer to below table.

Kit Contents

The Embest SBC8140SBC8140 single board computer is supplied with below contents:

• SBC8140 Single Board Computer
• Serial cable (DB9-to-DB9)
• 5V@2A Power adapter
• 10-pin JTAG cable
• JTAG board(convert 10Pin to 14 pin JTAG interface)
• Optional TFT LCD Display Module
  • 4.3 inch TFT LCD (With Touch panel)
  • 7 inch TFT LCD (With Touch panel)

Add-on Modules

* = Provided with Source Code

# = Not Provided with Source Code
