Overview

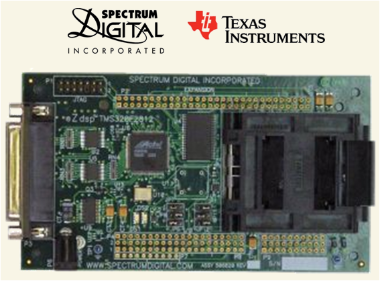

The eZdspTM F2812eZdspTM F2812 is a stand-alone card allowing evaluators to examine the Texas Instruments TMS320F2812TMS320F2812 digital signal processor (DSP) to determine if it meets their application requirements. Furthermore, the module is an excellent platform to develop and run software for the TMS320F2812TMS320F2812 processor.The eZdsp F2812 is a 5.25 x 3.0 inch, multi-layered printed circuit board, powered by an external 5-Volt only power supply.
The eZdsp kit provides a complete development environment, and includes the DSP board, power supply for the board, on-board JTAG compliant emulator, and an eZdsp specific version of the Code Composer Studio integrated development environment (full featured, including debugger IDE, and ANSI C and C++ compliant compiler). The DSP board itself has nearly all peripheral signals available on the board headers, making it easy to interface the board with other system hardware. The major interfaces of the eZdsp are the JTAG interface, and expansion interface.

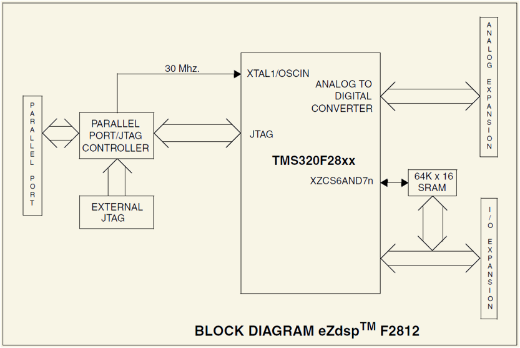

The eZdsp F2812eZdsp F2812 is shipped with a TMS320F2812TMS320F2812 DSP. The eZdsp F2812 allows full speed verification of F2812 code. Two expansion connectors are provided for any necessary evaluation circuitry not provided on the as shipped configuration. The eZdsp F2812 consists of four major blocks of logic Analog Interface Connector, I/O Interface Connector, JTAG Interface, Parallel Port JTAG Controller Interface.
Key Applications: Motor Control, Motion Control, Algorithm Development, Microcontroller Replacement.
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Texas Instruments | Code Composer Studio (CCStudio) | TI ARM MCUs | CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, real-time operating system and many other features. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Texas Instruments | XDS100V2 JTAGXDS100V2 JTAG | C2000 / C5000 / C6000 | JTAG Emulator |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematic | SPECTRUM DIGITAL: eZdspF2812 development board Schematics(Rev. C) |
| Application Library | SPECTRUM DIGITAL: JTAG Algos For F2812/F2811/F2810 family -Rev C (V4.1) |
| Application Library | SPECTRUM DIGITAL: Alpha Flash Programming Utilities For TMX320F2810/F2812 Family |
Video
Kit Features
- TMS320F2812TMS320F2812 Digital Signal Processor
- 150 MIPS operating speed
- 18K words on-chip RAM
- 128K words on-chip Flash memory
- 64K words off-chip SRAM memory
- 30 MHz. clock
- 2 Expansion Connectors (analog, I/O)
- Onboard IEEE 1149.1 JTAG Controller
- 5-volt only operation with supplied AC adapter
- TI F28xx Code Composer Studio tools driver
- On board IEEE 1149.1 JTAG emulation connector
Kit Contents
- eZdsp F2812eZdsp F2812 with DSP in socket
- Power Supply
- Parallel port cable
- CD-ROM with eZdsp specific Code Composer for C2xxx
- CD-ROM with sample code, manual and schematics
 |  |  |
