Another question...
I am done with my schematics and have run the CAM processor.
Afterwards, I decided to view my gerber files on a viewer before sending these out to the fab house but
I noticed that there is not board outline in the gerber viewer.
When I did the wire (0 0)(100 0)(100 80)(0 80)(0 0); to find how much room that I had,
I then moved this so it was smaller and deleted the board outline that was smaller.

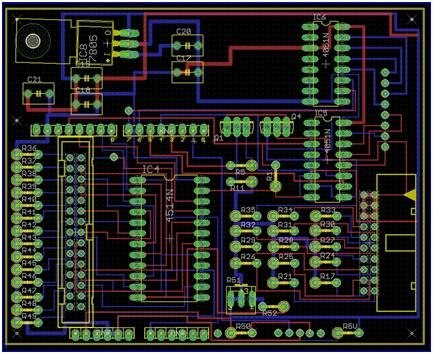

Looking at my PCB in Eagle, the brd file looks like this:

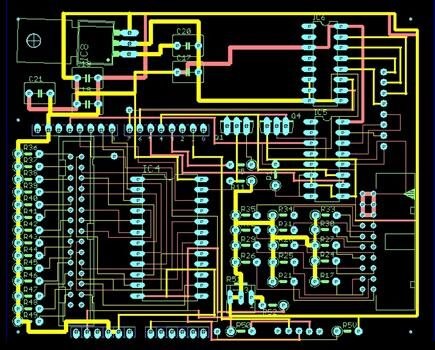

and looking at the gerbers in a viewer, they look like this:
What am I missing?
How do I create a board outline on my PCB so that is shows
up in my Gerber files?
thanks
