Using multiple schematic symbols for one device

Question

Hi all,

Quick question about custom library creation under Eagle 7.4.0:

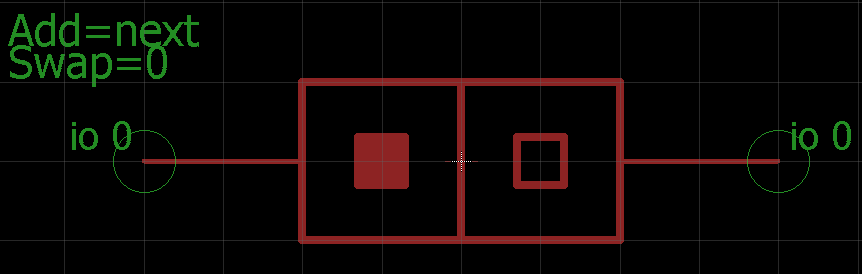

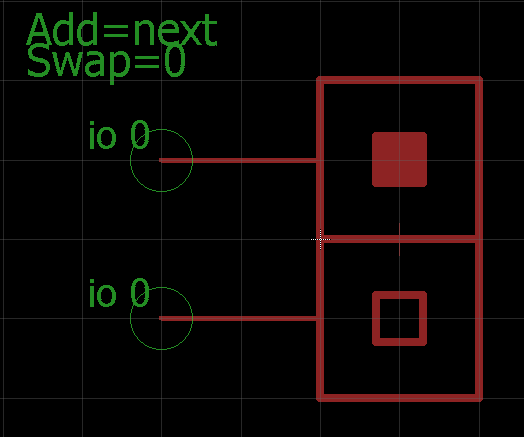

I am trying to create a simple 1x2, .1" spaced male header. When placing this part, I would like to be able to choose between one of two symbols to place on the schematic (either in-line, or perpendicular, see images).

Is it possible to achieve this functionality without creating a separate device?

Thanks.

autodeskguest · Accepted Answer

Sean Kitko wrote on Mon, 26 October 2015 14:21

Hi all,

Quick question about custom library creation under Eagle 7.4.0:

I am trying to create a simple 1x2, .1" spaced male header. When
placing this part, I would like to be able to choose between one of
two
symbols to place on the schematic (either in-line, or perpendicular,
see
images).

Is it possible to achieve this functionality without creating a
separate
device?

Thanks.

--
To view any images and attachments in this post, visit:
http://www.element14.com/community/message/165025

As far as I know, you will need to create 2 devices.

Name examples: 1) hdr1x2_inline 2) hdr1x2_perp

--
