ESP8266 lbr file

Hey Gang,

I was trying to find the lbr file for the ESP8266. It's a wifi communicator for arduino. I need the .lbr to simulate it in EAGLE if it exists. Can someone tell me where to find it? Thanks!

Regular Guy
Semper Paratus

Top Replies

luislabmo over 7 years ago +2

Hello foxeater , Exactly what "flavor" of ESP8266 are you looking for ? the IC or a specific ESP8266 module? If you are in need of the IC only, Sparkfun RF library has it. If you are in need of the ESP8266…
luislabmo over 7 years ago +2

Library available here . Part is not tested yet in a real PCB. BTW, I might need a deadline on that poem!
luislabmo over 7 years ago in reply to foxeater +2

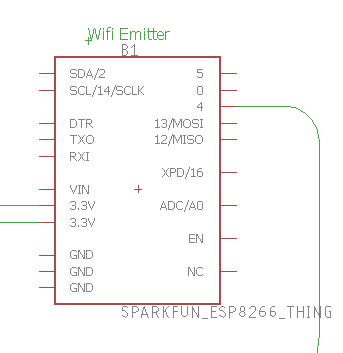

The one I gave you only uses 8-pins (ESP8266 ESP-01), maybe you need a part for a different one? I think the other one that uses 8 pins is the ESP-02. It would be better if you post a picture of the module…

Parents

luislabmo over 7 years ago

Hello Regular Guy,

The one I gave you works exactly for that module. It has 8 pins, and technically the footprint requires a 2x4 0.1" pitch female header.
Cancel
Vote Up +2 Vote Down

Sign in to reply

Cancel
foxeater over 7 years ago in reply to luislabmo

You're correct! I'll have to make sure I looked up the right guy.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel

Reply

foxeater over 7 years ago in reply to luislabmo

You're correct! I'll have to make sure I looked up the right guy.
