The element14 Arduino CadSoft Library (Rev C)

We are pleased to offer our very own CadSoft library for Arduino--for free! Our new library simplifies Arduino shield development by placing the most-popular Arduino pinouts right at your fingertips. The latest version includes these boards: 101, Uno, Nano, Mini, Micro, Mega2560, Lilypad, Leonardo, Ethernet, and Due

Don't yet have CadSoft EAGLE?

Get your copy here!

Let us know what you think by posting comments below, and thanks for being a part of the element14 community!

joeman

Top Comments

cap269 over 11 years ago

Pardon if this is documented somewhere, but I have searched and didn't find the answer for myself. The Mega board that is in this library, is it for the original Mega or the 2560? Or, better yet, does that even make a difference? (I have never had/used the original Mega that is now obsolete and superceded by the 2560) TIA.
- Cancel
- Vote Up +1 Vote Down
- Sign in to reply
- More
- Cancel
cwworth over 11 years ago

Downloaded today and noted that on the NANO board layout the analogue pins are labelled in the wrong order.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
Workshopshed over 11 years ago in reply to mot9112

Hi Tom, just had a play with this. You should be able to use the group selector to select the whole of the board, then move group back into the space.
- Cancel
- Vote Up +1 Vote Down
- Sign in to reply
- More
- Cancel
mot9112 over 11 years ago

I draw my circuit with no issues.
Then switch to the Board Mode,
Arrange the components on the board, can't move the Ardunio component inside what I think are the boundaries of the free version.

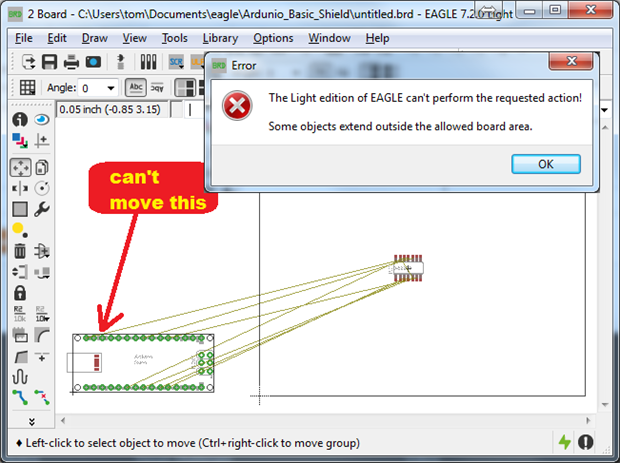

I get the error on the graphic below.
Also also included the screen shot of the board mode with the error.

I have tried 3 different Ardunio components from this library and all act same way. I used version 4-5 of Eagle several years ago - this is my first use of this newer 7.2 version.
Every thing else appears to work. If I build up a simple circuit in schematic editor then auto route it all seems ok.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
Workshopshed over 11 years ago in reply to mot9112

What kind of problems are you getting? The free version is restricted on size and number of layers.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
