The element14 Arduino CadSoft Library (Rev C)

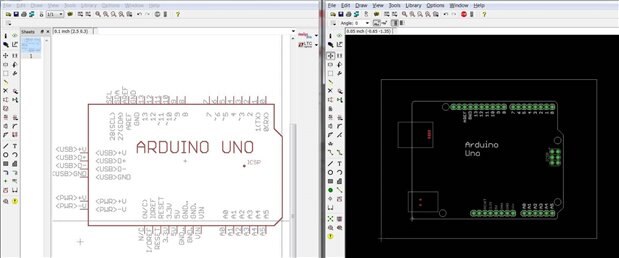

We are pleased to offer our very own CadSoft library for Arduino--for free! Our new library simplifies Arduino shield development by placing the most-popular Arduino pinouts right at your fingertips. The latest version includes these boards: 101, Uno, Nano, Mini, Micro, Mega2560, Lilypad, Leonardo, Ethernet, and Due

Don't yet have CadSoft EAGLE?

Get your copy here!

Let us know what you think by posting comments below, and thanks for being a part of the element14 community!
