Mirroring a schematic component

jimmallabar
jimmallabar over 7 years ago

Hi,



Is it possible to mirror a schematic component?  I've seen references to "X" and "Y" keys to mirror over that axis, but those do not work.  The spacebar rotates the component, but I don't see a mirror.

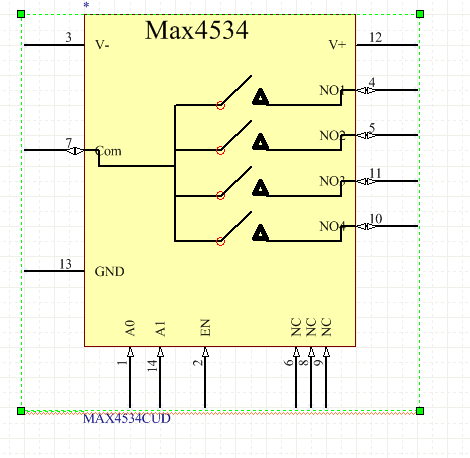

I have a 4:1 mux:


I'd like to keep the control pins on the bottom, but have the common on the right and the 4 channels on the left.

Thanks,

Jim

  • Cancel
Parents
  • e14softwareuk
    0 e14softwareuk over 7 years ago

    The X and Y keys do work but you need to have the symbol 'on the cursor', hold down the mouse on the component and then hit the keys. Alternatively bring up the property dialog and tick 'Mirrored'.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
Reply
  • e14softwareuk
    0 e14softwareuk over 7 years ago

    The X and Y keys do work but you need to have the symbol 'on the cursor', hold down the mouse on the component and then hit the keys. Alternatively bring up the property dialog and tick 'Mirrored'.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
Children
  • jimmallabar
    0 jimmallabar over 7 years ago in reply to e14softwareuk

    Tricky.



    Perfectly logical once you know what you are doing.



    Thank you very much.



    Jim
