Moto Mods Development Basics

payam
payam
8 Aug 2016

Moto Mods are hardware enhancements

  • Snap seamlessly to the rear of the Moto Z
    • Magnets provide a strong attraction
    • Hotplug, no reboot needed
  • Provide a wide variety of interfaces to enable 3rd party creativity
    • Enhance existing functionality, like battery life
    • Introduce entirely new features
  • Tight integration into Android OS
    • Utilize standard behaviors and interfaces
    • SDK to allow for unique experiences


Mechanical

Fixed dimensions for future generations ensure compatibility.



  • X/Y dimensions of Moto Z
  • Size, placement, and layout of the Moto Mods Connector
  • Size, placement, and cone angle for the Moto Z camera
  • Placement of the magnets for connection
  • Antenna keep-out areas to ensure performance.

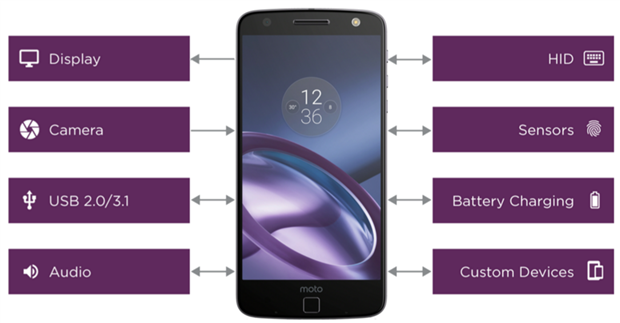

Capabilities




Interface

Capabilities

I2C

1 Mbit/s

SPI

15 Mbit/s

UART

10 Mbit/s

CSI

6MP raw10 @ 60fps, 13MP raw10 @ 24fps

I2S

24-bit stereo @ 192kHz

DSI

1080p @ 60fps

MyDP

Video: 4K @ 30fps, Audio: 8 channels @ 192kHz

USB2.0

480 Mbit/s

USB3.1

5 Gbit/s

GPIO

General Purpose Input and Output


Brains and Brawn

Moto Mods Micro Controller (MuC)

Motorola High Speed Bridge (Moto Bridge)

  • Contained in every Moto Mod
  • Provides command and control
    • Enumeration
    • Greybus Protocols
    • Moto Bridge management
  • Power Management
  • Firmware Upgrades
  • Low Speed Interfaces
    • I2C, SPI, UART, GPIO
  • Analog to Digital Converters
  • ARM7 Cortex-M4F
  • Provides high speed interfaces at low power
  • Simultaneous support of DSI, CSI, I2S, and HSIC
  • Powered on and off as required
  • Firmware is upgraded by MuC
  • MHB protocol allows MuC to control Moto Bridge functionality without modifying firmware
  • UART connection to MuC
  • Not required in all Moto Mods

Greybus Protocols



Display

Configuring and controlling a DSI or MyDP video device

Lights

Display Backlight Control

Battery

Battery Metering

Power Transfer

Charge/Discharge to Moto Z

Audio

Configuring and controlling I2S audio streams (raw or over Moto Bridge)

HID

Human Interface Device input

USB-Ext

USB 2.0 (device) or USB 3.1 (host/device)

Raw

Application specific data pipe



Moto Z Behavior



Display

Integrated as Android Secondary Display.  Mirroring by default, or use Presentation

Lights

No default integration

Battery

Integrated battery metering

Power Transfer

Moto Mod reports current capabilities, Moto Z controls state transitions

Audio

Audio device types mirror Android.  Default routing rules based on current device(s).

HID

Keyboard input provided to the frontmost app, normal mouse integration

USB-Ext

USB devices available through Android USBManager (if they don’t just work)

Raw

No default integration, but Permissions required for ‘Unrestricted Mod Access’



Moto Mods Development Kit (MDK)

  • Contains MuC and Moto Bridge
  • Integrated battery and charging circuit
  • Perforated Boards enable flywired projects
  • Personality Cards provide hardware to go with the examples, including released schematics
  • 80pin interface allows easy swapping
  • USB Ports for Serial Wire Debug/Console, power, data, and MyDP



MDK Users Guide

http://developer.motorola.com/build/mdk-user-guide

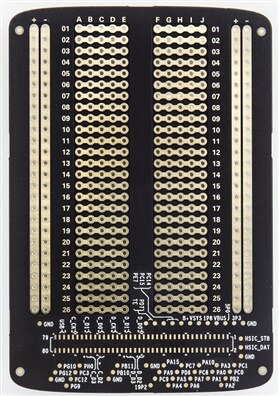

Perforated Board

http://developer.motorola.com/build/mdk-user-guide/perforated-board

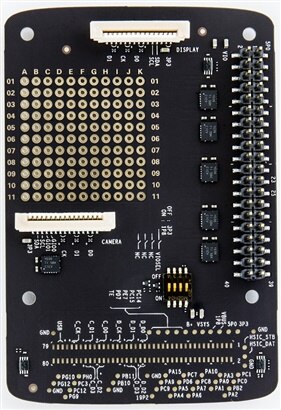

HAT Adapter Board

http://developer.motorola.com/build/mdk-user-guide/hat-adapter-board
