RasPiBox Open - DIN rail enclosure solution for the RasPi

hwhardsoft

Hi,

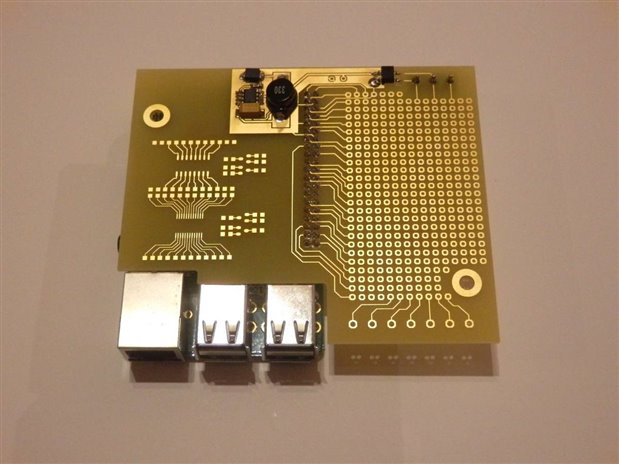

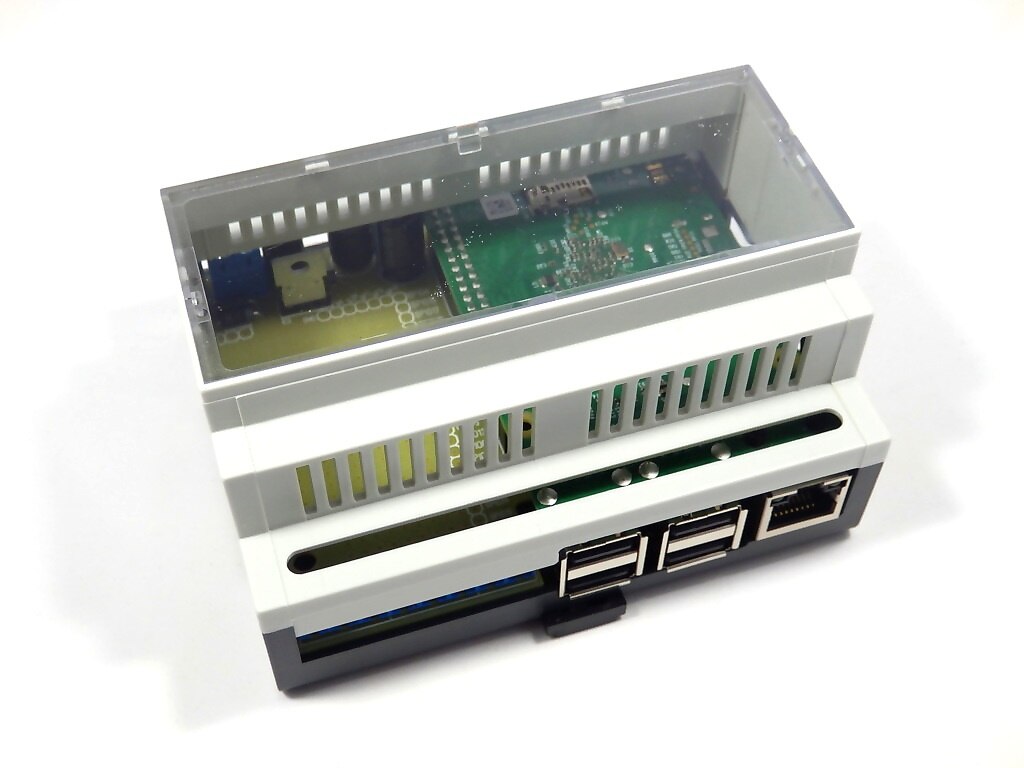

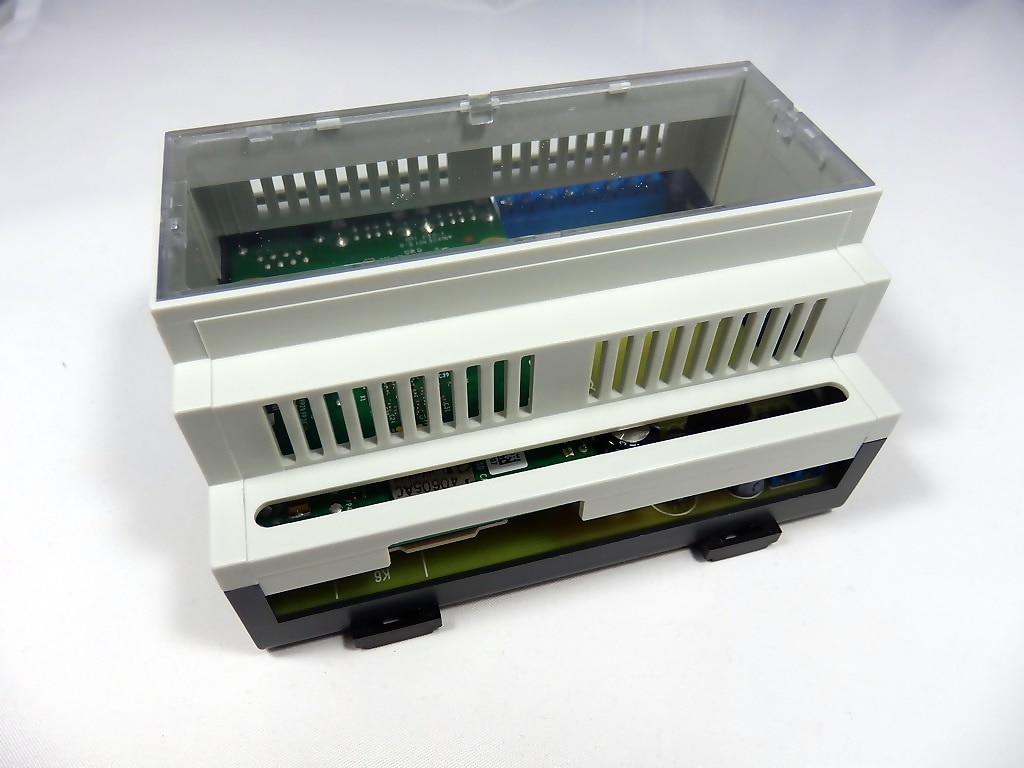

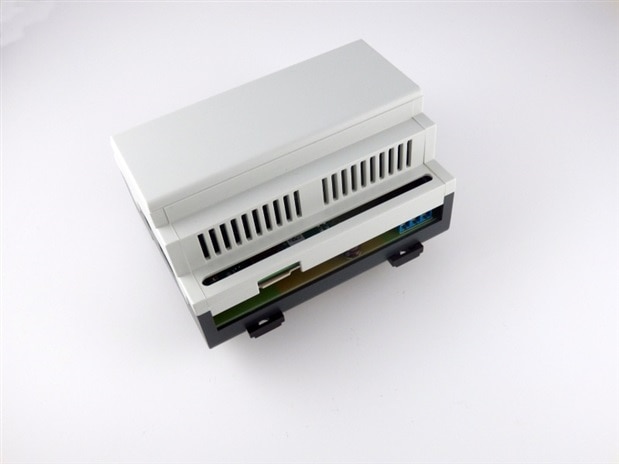

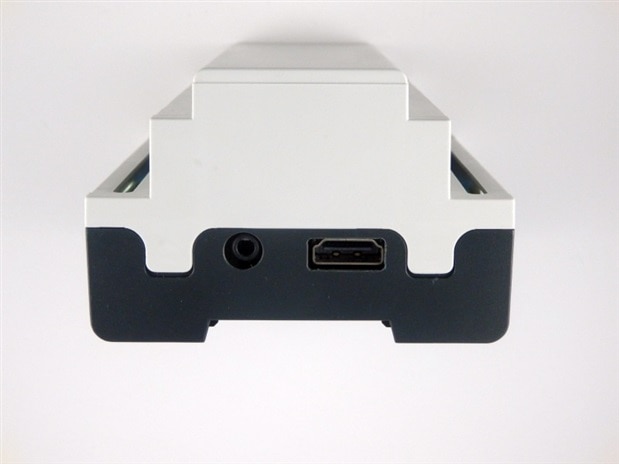

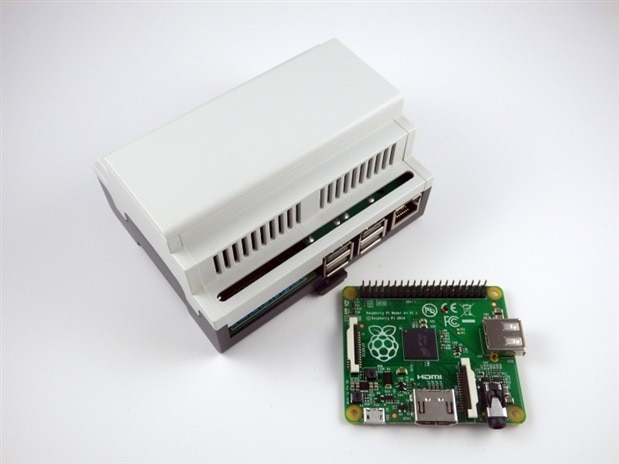

here some pictures of a new project from me. It's a prototyping plate with fitting DIN rail enclosure for the Raspberry Pi. Check this Link for more information







Message was edited by: Hartmut Wendt -new video and pictures of current version...

Parents Reply Children
  • in reply to balearicdynamics

    Dear Enrico,



    we sold hundreds of this enclosure sets for the PI2 before and I never heard about such problems by our customers. Between the pcb and the Pi CPU is enough space for an air flow - and if you want a heat sink also. Please note: Usually the enclosure is mounted vertically in a control cabinet!

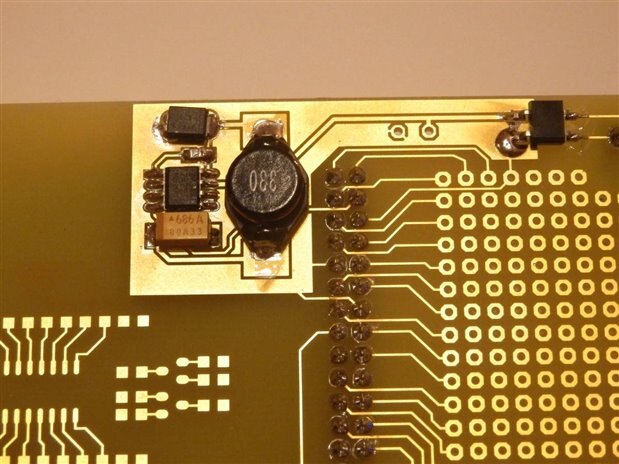

    About the voltage regulator: Same as above. It's a very good tested design in several kits - for example in our mini arcade kits. For 24V input voltage and 2A output voltage it works without any heat sink. It's possible to mount a heat sink, because the regulator is placed to a position in the enclosure with enough height for vertical heat sink...



    Yes the video is very old - from the beginning of this project over 2 years ago (as this thread ;-). We've started with a version for the first PI and changed the design over the years according the requirements of the actiual Pi version.



    Best Regards



    Hartmut
