Raspberry pi 3 Composite video. Total newb Need help professionals wanted

Im trying to connect the NTSC/PAL TFT 3.5" Display to my Pi 3 but I broke off one of the connectors that i was gonna connect it to which i believe is ground. Is there another spot i can connect it to (ground and 5v)?

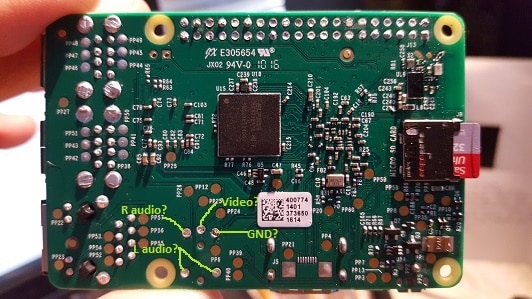

Also are these correct?

Also is there a diagram that shows all the purposes of all the back connectors? because all i find is the gpio pin out diagram but i dont need that.

I would appreciate it so much if someone could help me.

0 4rugby4 over 9 years ago

I just checked on my pi2 and pi 3, and the your audio diagram seems correct.
As for your first picture, I can not tell what is broken on your pi, it looks identical on mine, maybe more pictures/ explination would help.
Good luck
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Former Member over 9 years ago in reply to 4rugby4

The metal circle on the board broke off so i cant connect anything to it anymore
Cancel
Vote Up +1 Vote Down

Sign in to reply

Verify Answer

Cancel
0 plc-tek over 8 years ago in reply to Former Member

It is possible to repair the pad that you broke off. It's not easy but if you take your time and have the soldering iron just hot enough so you don't burn the board you can do it.
Search Google for solder pad repair
