Linear Technology DC1194A Demo Circuit = 200ma DC/DC Micro Module
Demonstration circuit DC1194A features the LTM
8020, a 200mA DC/DC step-down μModule regulator. The board is preset to deliver a 3.3V output at up to 200mA load current from an input voltage of up to 36V. The output voltage may be modified by simply changing one resistor.
This PADS reference design data set has 19 files including:

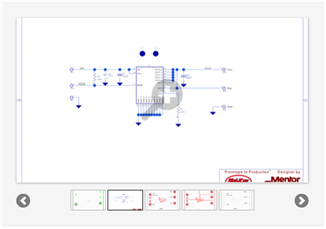

- Schematic design in xDX Designer format (.prj)
- Layout design in PADS 9.5 format (.pcb)
- Bill of Materials for the design ( Bill of Materials.html)
- PDF of the schematic design ( (Schematic).pdf)
- PDF of the layout design ( (Layout).pdf)
- Property definitions file (netlist.prp)
- PCB Configuration file (pads95.cfg)
- Land Patterns
- Schematic symbols
