Overview

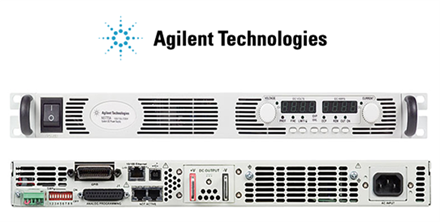

The Agilent Technologies Series N5700 System DC Power Supplies are general-purpose, 1U (rack unit) high, switching power supplies that are available with a wide variety of output voltage and current ratings.

These power supplies are power-factor corrected and operate from a worldwide AC voltage range. Output voltage and current are continuously displayed and LED indicators show the complete operating status of the power supply. The front panel controls allow the user to set the output parameters, over-voltage, under-voltage, and over-current protection levels, and preview the settings.

The rear panel includes the necessary connectors to control and monitor the power supply operation by analog signals or by the builtin remote communication interfaces.

Key Applications: Automated test applications, ATE systems in R&D, design validation, and manufacturing.

More Resources
	More Power Supplies From Agilent		Test & Measurement Room
	Agilent Product Range		element14 Knode

Technical Documents

Learning Center

Type	Description
User Guide	Agilent: User's Guide for Technologies System DC Power Supply - Series N5700
User Guide	Agilent: User’s Guide for System DC Power Supply -Series N5700
Datasheet	Agilent: Datasheet for N5700 Series System DC Power Supplies
Selection Guide	Agilent: Selection Guide for Power Products
Application Note	Agilent: Application Note for Power Sources for Energy - Efficient High Input Voltage Telecommunications Equipment Development
Application Note	Agilent: Application Note for Standardized Core Makes Building and Supporting a Functional Test System Easier and Less Costly
Application Note	Agilent: Application Note for Trends in Programmable Medium Power (~1 kW) System DC Power Supplies
Application Note	Agilent: Application Note for Selecting DC Sources for Telecommunications Equipment Test Systems

Video

Video 1	Video 2	Video 3
This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.

Features

Key Features:

24 models: 750 W and 1500 W output power
Up to 600 V and up to 180 A
Small high density 1 U package
Built-in voltage and current measurement
Full protection from over-voltage and over-current
85-265 Vac universal AC input
Command compatibility for Sorensen DLM and Xantrex XFR DC supplies
LAN, USB, and GPIB interfaces standard
Fully compliant to LXI Class C specification

Output Features

Constant voltage/constant current with automatic crossover.
High-resolution voltage and current front panel controls.
Accurate voltage and current readback.
Independent edge-triggered external shut-off, and leveltriggered external enable/disable.
Parallel master/slave operation with active current sharing.
Remote sensing to compensate for voltage drop in load leads.
Analog output programming and monitoring.

System Features

Built-in GBIB/LAN/USB interface.
A built-in Web server that lets you control the instrument directly from an internet browser on your computer.
Zero-gap stacking - no ventilation holes at the top and bottom surface of the power supply.
Universal input voltage with active power factor correction.
Fan speed control for low noise and extended fan life.

Programmable Functions

Output voltage and current setting.
Output voltage and current measurement.
Output voltage and current trigger setting.
Output On/Off control.
Over-current protection setting.
Over-voltage protection setting and readback.
Under-voltage limit setting and readback.
Start-up mode (either last setting or reset mode)
Status register setting and readback.
Bus trigger
Calibration

Buying Options

Model	Max. Power Output	Max. Voltage Output	Max. Current Output
N5741AN5741A	600 W	6 V	100 A
N5742AN5742A	720 W	8 V	90 A
N5743AN5743A	750 W	12.5 V	60 A
N5744AN5744A	760 W	20 V	38 A
N5745AN5745A	750 W	30 V	25 A
N5746AN5746A	760 W	40 V	19 A
N5747AN5747A	750 W	60 V	12.5 A
N5748AN5748A	760 W	80 V	9.5 A
N5749AN5749A	750 W	100 V	7.5 A
N5750AN5750A	750 W	150 V	5 A
N5751AN5751A	750 W	300 V	2.5 A
N5752AN5752A	780 W	600 V	1.3 A
N5761AN5761A	1080 W	6 V	180 A
N5762AN5762A	1320 W	8 V	165 A
N5763AN5763A	1500 W	12.5 V	120 A
N5764AN5764A	1520 W	20 V	76 A
N5765AN5765A	1500 W	30 V	50 A
N5766AN5766A	1520 W	40 V	38 A
N5767AN5767A	1500 W	60 V	25 A
N5768AN5768A	1520 W	80 V	19 A
N5769AN5769A	1500 W	100 V	15 A
N5770AN5770A	1500 W	150 V	10 A
N5771AN5771A	1500 W	300 V	5 A
N5772AN5772A	1560 W	600 V	2.6 A

Accessories

Accessories Included:

Power Cord
- A power cord appropriate for your location
- 750W units are supplied with terminated power cords
- 1500W units are supplied with unterminated power cords
Strain relief assembly
- A strain relief assembly for unterminated power cords (only used for 1500W units)
- AC input cover A cover for the AC input on which the strain relief assembly is mounted (only used for 1500W units)
Analog connector
- A DB25 subminiature connector plug for analog control connections
- Shield assembly A safety shield for the output terminal connections
Hardware - Nuts, washers, and bolts for connecting load leads to output bus bars (only used for 6V to 60V units)
Documentation Set - Contains User’s Guide with Product Reference CD-ROM
Certificate of Calibration - A certificate of calibration referenced to the serial number
Automation-Ready - E2094N - contains Agilent IO Libraries Suite
CD-ROM

Other Accessories:

Accessories	MPN	Description
Rack-mount slide kit	N5740AN5740A	Rack-mount slide kit for installing in system II cabinets
