Overview

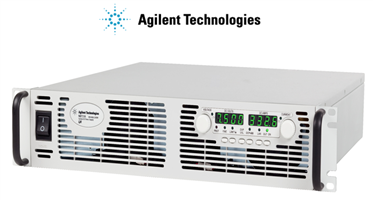

The Agilent Technologies N8700 series system DC power supplies give you just the right performance in a compact (2 U) package. This family of affordable 3300 W and 5000 W single-output programmable DC power supplies consists of 21 models for simple DC power applications.

These power supplies are power-factor corrected and have flexible AC input voltage options. Output voltage and current are continuously displayed and LED indicators show the complete operating status of the power supply. The front panel controls allow the user to set the output parameters, over-voltage, under-voltage, and over-current protection levels, and preview the settings. The rear panel includes the necessary connectors to control and monitor the power supply operation by analog signals or by the built-in remote communication interfaces.

They provide stable output power, built-in voltage and current measurement, and output voltage and current from 8 V to 600 V and 5.5 A to 400 A. These economical supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation, and manufacturing engineers in the aerospace/defense, automotive, component and communications industries.

Key Applications: Automated test applications, ATE systems in R&D, design validation, and manufacturing.

More Resources
	More Power Supplies From Agilent		Test & Measurement Room
	Agilent Product Range		element14 Knode

Technical Documents

Learning Center

Type	Description
User Guide	Agilent: User's Guide for System DC Power Supply - Series N8700
Datasheet	Agilent: Datasheet for N8700 Series System DC Power Supplies
Selection Guide	Agilent: Selection Guide for Power Products
Application Note	Agilent: Application Note for Selecting DC Sources for Telecommunications Equipment Test Systems
Application Note	Agilent: Application Note for Power Sources for Energy-Efficient High Input Voltage Telecommunications Equipment Development
Application Note	Agilent: Application Note for Managing High-Power DC Requirements for Life and Durability Test Systems

Video

Video1	Video2
This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.

Features

Key Features:

21 Models: 3300 W and 5000 W output power
Up to 600 V and up to 400 A
Small, high density 2 U package
Built-in voltage and current measurement
Full protection from over-voltage and over-current
Flexible AC input voltage options
LAN, USB, and GPIB interfaces standard
Fully compliant to LXI Class C specification

Output Features:

Constant voltage/constant current with automatic crossover.
High-resolution voltage and current front panel controls.
Accurate voltage and current readback.
Independent edge-triggered external shut-off, and level-triggered external enable/disable.
Parallel master/slave operation with active current sharing.
Remote sensing to compensate for voltage drop in load leads.
Analog output programming and monitoring.

System Features:

Built-in GBIB/LAN/USB interface.
A built-in Web server that lets you control the instrument directly from an internet browser on your computer.
Zero-gap stacking - no ventilation holes at the top and bottom surface of the power supply.
Active power factor correction.
Fan speed control for low noise and extended fan life.

Programmable Functions:

Output voltage and current setting.
Output voltage and current measurement.
Output voltage and current trigger setting.
Output On/Off control.
Over-current protection setting.
Over-voltage protection setting and readback.
Under-voltage limit setting and readback.
Start-up mode (either last setting or reset mode)
Status register setting and readback.
Bus trigger
Calibration

Buying Options

Model	Max. Power Output	Max. Voltage Output	Max. Current Output
N8731AN8731A	3200 W	8 V	400 A
N8732AN8732A	3300 W	10 V	330 A
N8733AN8733A	3300 W	15 V	220 A
N8734AN8734A	3300 W	20 V	165 A
N8735AN8735A	3300 W	30 V	110 A
N8736AN8736A	3400 W	40 V	85 A
N8737AN8737A	3300 W	60 V	55 A
N8738AN8738A	3360 W	80 V	42 A
N8739AN8739A	3300 W	100 V	33 A
N8740AN8740A	3300 W	150 V	22 A
N8741AN8741A	3300 W	300 V	11 A
N8742AN8742A	3300 W	600 V	5.5 A
N8754AN8754A	5000 W	20 V	250 A
N8755AN8755A	5100 W	30 V	170 A
N8756AN8756A	5000 W	40 V	125 A
N8757AN8757A	5100 W	60 V	85 A
N8758AN8758A	5200 W	80 V	65 A
N8759AN8759A	5000 W	100 V	50 A
N8760AN8760A	5100 W	150 V	34 A
N8761AN8761A	5100 W	300 V	17 A
N8762AN8762A	5100 W	600 V	8.5 A

Accessories

Accessories Included:

Power Cord
- A power cord appropriate for your location.
- Units are supplied with unterminated power cords.
Strain relief assembly
- A strain relief assembly for unterminated power cords.
AC input cover
- A cover for the AC input on which the strain relief assembly is mounted.
Analog connector
- A DB25 subminiature connector plug for analog control connections.
Shield assembly
- A safety shield appropriate for the output terminal connections (either wire clamp or bus bar).
Hardware - Nuts, washers, and bolts for connecting load leads to output bus bars (only used for 8V to 100V units).
Documentation Set - Contains User’s Guide with Product Reference CD-ROM.
Certificate of Calibration - A certificate of calibration referenced to the serial number.
Automation-Ready - E2094N - contains Agilent IO Libraries Suite.
CD-ROM

Other Accessories:

Accessories	MPN	Description
Accessory	N5740AN5740A	Rack-mount slide kit for installing in system II cabinets
