| Overview

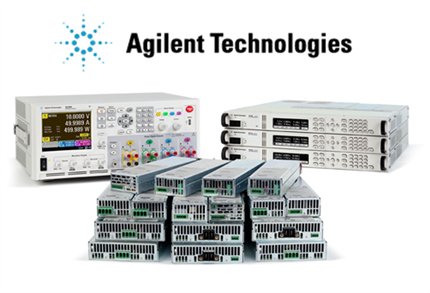

The Agilent N6700 Modular Power System (MPS) mainframes offer solutions for automated test system environments as well as R&D. The N6700 MPS provides three key benefits: small size, fast processing speeds and flexibility. The Low-Profile mainframes of the N6700 simplify test-system assembly, programming, debugging and operation. Its flexibility, small size, and fast command processing time make it ideal for ATE and production test environments.
The Agilent N6700 MPS is the 1U (1.75" or 45 mm) high, multiple-output DC power supply targeted at automated test applications. Within that small rack space, the Agilent MPS modular power system gives test system designers the flexibility to configure a 1- to 4-channel DC power system at up to 300W per channel that is optimized to meet specific test requirements.
The Agilent MPS also enables test engineers to use the PC standard software environment they are comfortable with - whether it is textual, graphical or a spreadsheet - and it provides the choice of PC standard I/O to simplify test system set-up. The new platform architecture offers a system-ready power supply optimized for both price and performance in either stand-alone operation, or for increased throughput in a more complex test system environment. The N6700 also provides universal serial bus (USB 2.0), 10/100 Base-T Ethernet (LAN) and general-purpose interface bus (GPIB) interfaces as standard features. This allows quick and simple connectivity to a PC, other instruments in a test system, or to a network for access across an engineering workgroup. The Agilent N6700 can also be operated remotely from any browser by connecting to its built-in Web-page for control and monitoring of power supply operations.
Whether you are an R&D engineer under time pressure or a manufacturing test engineer trying to cut costs or increase throughput, there is a N6700 mainframe and set of DC power modules that will suit your needs. The family includes 4 mainframes and over 30 DC power modules.
Key Applications: Automated test applications, ATE systems in R&D, design validation, and manufacturing. | ||||||||||
Technical Documents
Learning Center
Video
| Video 1 | Video 2 | Video 3 |
|---|---|---|
Features
- Maximizing Rack Space
- Industry-Leading Speeds Expand Power Supply Capabilities
- Built-in Measurements Broaden Range of Applications
- Autoranging to Test a Wider Range of DUTs
- Flexible Input/Output Options
- Flexibility to Maximize Power, Performance and Price
| Low-Profile Module Power System Mainframes | DC Power Analyzer Mainframe | DC Power Modules |
|---|---|---|
|
|
|
Buying Options
Low-Profile Module Power System & DC Power Analyzer Mainframes
| Model | Description | Connectivity | Max. Power Output |
|---|---|---|---|
| N6700BN6700B | Low-Profile Modular Power System Mainframe, 400W, 4 Slots | GPIB, LAN, USB, LXI Compliant | 400 W |
| N6701AN6701A | Low-Profile Modular Power System Mainframe, 600W, 4 Slots | GPIB, LAN, USB, LXI Compliant | 600 W |
| N6702AN6702A | Low-Profile Modular Power System Mainframe, 1200W, 4 Slots | GPIB, LAN, USB, LXI Compliant | 1200 W |
| N6705BN6705B | DC Power Analyzer Mainframe, 600W | GPIB, LAN, USB, LXI Compliant | 600 W |
DC Power Modules
| Model | Max. Power Output | Max. Voltage Output | Max. Current Output |
|---|---|---|---|
| Basic DC Power Modules | |||
| N6731BN6731B | 50W | 5V | 10A |
| N6732BN6732B | 50W | 8V | 6.25A |
| N6733BN6733B | 50W | 20V | 2.5A |
| N6734BN6734B | 50W | 35V | 1.5A |
| N6735BN6735B | 50W | 60V | 0.8A |
| N6736BN6736B | 50W | 100V | 0.5A |
| N6741BN6741B | 100W | 5V | 20A |
| N6742BN6742B | 100W | 8V | 12.5A |
| N6743BN6743B | 100W | 20V | 5A |
| N6744BN6744B | 100W | 35V | 3A |
| N6745BN6745B | 100W | 60V | 1.6A |
| N6746BN6746B | 100W | 100V | 1A |
| N6773AN6773A | 300W | 20V | 15A |
| N6774AN6774A | 300W | 35V | 8.5A |
| N6775AN6775A | 300W | 60V | 5A |
| N6776AN6776A | 300W | 100V | 3A |
| N6777AN6777A | 300W | 150V | 2A |
| High-Performance, Autoranging DC Power Modules | |||
| N6751AN6751A | 50W | 50V | 5A |
| N6752AN6752A | 100W | 50V | 10A |
| N6753AN6753A | 300W | 20V | 50A |
| N6754AN6754A | 300W | 60V | 20A |
| N6755AN6755A | 500W | 20V | 50A |
| N6756AN6756A | 500W | 60V | 17A |
| Precision DC Power Modules | |||
| N6761AN6761A | 50W | 50V | 1.5A |
| N6762AN6762A | 100W | 50V | 3A |
| N6763AN6763A | 300W | 20V | 50A |
| N6764AN6764A | 300W | 60V | 20A |
| N6765AN6765A | 500W | 20V | 50A |
| N6766AN6766A | 500W | 60V | 17A |
| Application-Specific DC Power Modules | |||
| N6783A-MFGN6783A-MFG | 18W | 6V | +3A/-2A |
| N6783A-BATN6783A-BAT | 24W | 8V | +3A/-2A |
| Source/Measure Unit (SMU) Modules | |||
| N6781AN6781A | 20W | 20V | ±3A |
| N6782AN6782A | 20W | 20V | ±3A |
| N6784AN6784A | 20W | ±20V | ±3A |
Accessories
| Accessories | MPN | Description |
|---|---|---|
| Accessories | N6708AN6708A | Filler panel kit for use with the N6700BN6700B, N6701AN6701A, or N6702AN6702A Low-Profile Modular Power System Mainframe. Required when you have less than 4 modules per mainframe |
| N6709AN6709A | Rack mount kit for use with the N6700 Low-Profile Modular Power System, model numbers N6700BN6700B, N6701AN6701A, N6702AN6702A | |
| Software | 14585A14585A | Control and Analysis Software for the N6705 DC Power Analyzer |
