Agilent Technologies: E3630A Series DC Bench Power Supply

Overview

Agilent basic DC power supplies, namely the E36xx Series comprise a wide range of programmable and non-programmable power supplies that are ideal for R&D, manufacturing and education applications. On your benchtop or on the rack, each power supply outputs clean and stable dc power with low transients to help you work confidently and efficiently. Select wide range of single output, dual output and triple output basic dc power supplies, each in compact, affordable packages.

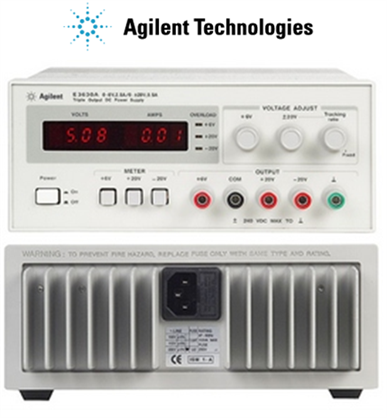

The E3630AE3630A triple output power supply has two 20 V outputs and one 6 V output. The +6V output is an isolated constant-voltage/currentfoldback output, and both the +20 V output and the –20 V output are constant-voltage/current-limit. An autotracking feature lets you use one voltage control to adjust both 20 V outputs. These outputs track each other to within one percent, making it easy to adjust the power supply for circuits requiring balance voltages. The ±20 V outputs are referenced together to a floating common.

The 35-watt E3630AE3630A triple-output power supply provides three DC outputs: 0 to 6 V with a maximum current of 1 to 2.5 A and 0 to 20 V and 0 to %20 V with a maximum current of 0.5 A. An auto-tracking feature lets you use one voltage control to adjust the +20 V and %20 V outputs simultaneously. The outputs track each other to within 1 percent, making it easy to adjust the power supply for circuits requiring balanced voltages.

Key Applications: Automated test applications, ATE systems in R&D, design validation, and manufacturing.

More Resources
	More Power Supplies From Agilent		Test & Measurement Room
	Agilent Product Range		element14 Knode

Technical Documents

Learning Center

Type	Description
User Manual	Agilent: User's Manual for TRIPLE OUTPUT POWER SUPPLY Agilent MODEL E3630A
User Guide	Agilent: Service Guide for E3633A and E3634A DC Power Supplies
User Guide	Agilent: User's Guide for E3633A and E3634A DC Power Supplies
Datasheet	Agilent: Datasheet for E363xA Series - Programmable DC Power Supplies
Selection Guide	Agilent: Selection Guide for DC Power Supply
Selection Guide	Agilent: Selection Guide for Power Products
Product Brief	Agilent: Product Brief for E3631A - E3634A Programmable DC Power Supplies
Application Note	Agilent: Application Note for Understanding Linear Power Supply Operation
Application Note	Agilent: Application Note for Specifying and Buying a Bench Power Supply

Video

Video 1	Video 2
This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.

Features

Features of E3630A Series DC Bench Power Supply:

Features : Tracking, CV, CL (±20 V) CV, CF (+6 V)
Number of output : 3
Number of Output Ranges : 1
DC Output ratings
- Output 1 : 0 to 6 V, 0 to 2.5 A2
- Output 2 : 0 to +20 V, 0 to 0.5 A
- Output 3 : 0 to –20 V, 0 to 0.5 A
- Power (max) : 35 W
Load regulation : < 0.01% + 2mV
Ripple and noise from 20 Hz to 20 MHz
- Normal mode voltage rms : 350 μV
- Peak-to-peak : 1.5 mV
Common mode current : 1 μArms
Control mode : CV/CL (±20 V), CV/CF (6 V)
Meter resolution (minimun change using front-panel controls)
- Voltage : 10 mV
- Current : 10 mA
Transient Response Time : < 50 μsec following a change in output current from full load to half load for output to recover within:
- 15 mV
Input power : 115 Vac, ± 10%, 47 to 63 Hz
Meter Accuracy : ±0.5% + 2 counts at 25 ºC ±5 ºC
Size : 213 mm W x 92 mm H x 320 mm D (8.4 in x 3.6 in x 12.6 in.)
Weight : 3.8 kg (8.4 lbs)
Isolation : 240 Vdc
Warranty: One year

Buying Options

Model	Max. Power Output	Max. Voltage Output	Max. Current Output
E3630AE3630A	35 W	Output 1: 0 to 6 V Output 2: 0 to +20 V Output 3: 0 to -20 V	Output 1: 0 to 2.5 A Output 2: 0 to 0.5 A Output 3: 0 to 0.5 A
E3631AE3631A	80W	Output 1: 30W, 6V Output 2: 25W, 25V Output 3: 25W, -25V	Output 1: 30W, 5A Output 2: 25W, 1A Output 3: 25W, 1A
E3632AE3632A	120W	Range 1: 105W, 15V Range 2: 120W, 30V	Range 1: 105W, 7A Range 2: 120W, 4A
E3633AE3633A	200W	Range 1: 160W, 8V Range 2: 200W, 20V	Range 1: 160W, 20A Range 2: 200W, 10A
E3634AE3634A	200W	Range 1: 175W, 25V, Range 2: 200W, 50V	Range 1: 175W, 7A Range 2: 200W, 4A

Accessories

Accessories	MPN	Description
Accessories	E3630A-0E3	AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
	E3630A-0E9	AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
	E3630A-0EM	AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
	E3630A-0L2	English language operation manual, printed
	E3630A-UK6	Commercial calibration certificate with test data included
	34131A34131A	Transit Case
	E3600A-100E3600A-100	Test lead kit, banana plug to SMT grabber
