Some photos that were taken during the project.
| {gallery:width=600,height=600} Photo Story |
|---|
Enchanted Cottage: Before it was taken apart. |

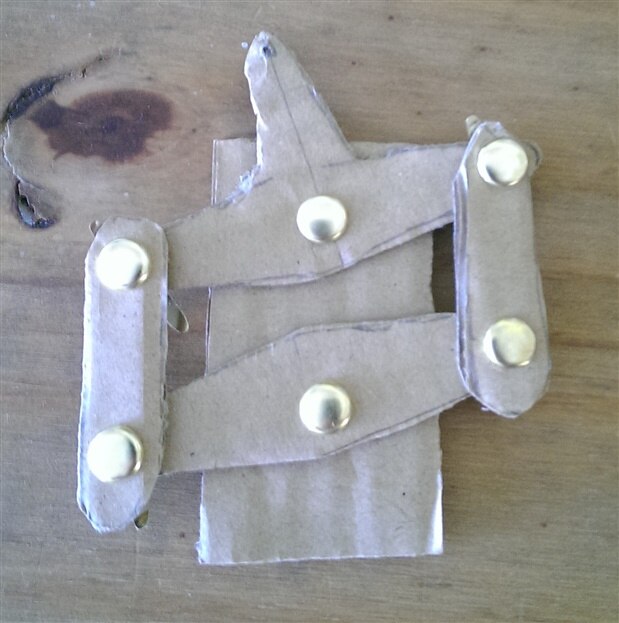

Mechanical Prototype: Cardboard and brass tacks |

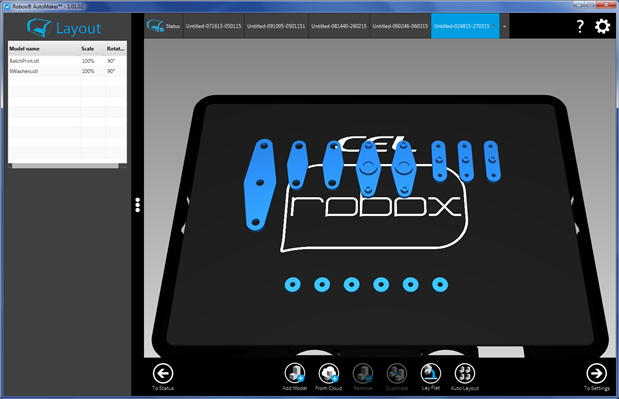

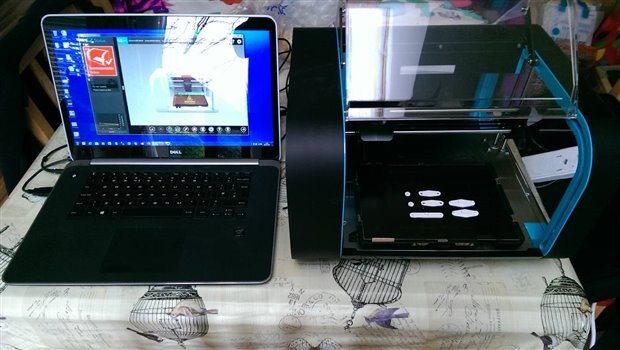

Multiprint: Printing lots of parts for the mechanism |

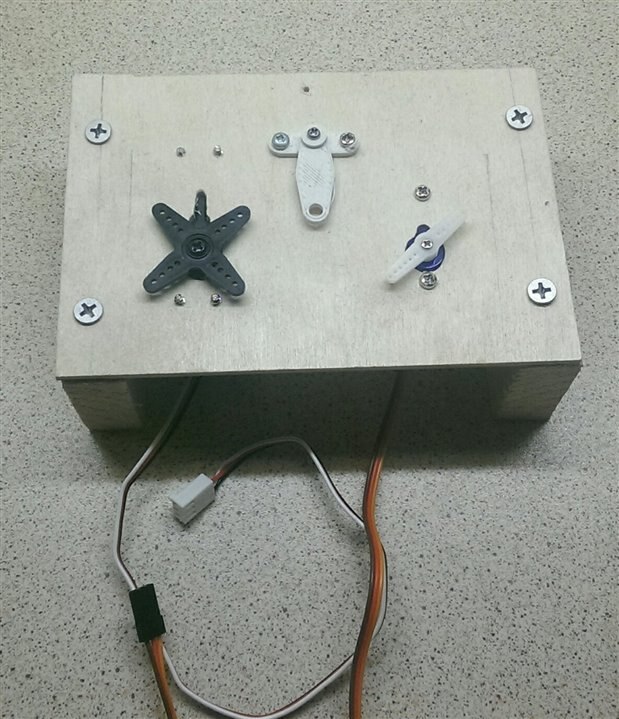

Test Jig: For testing servos |
Cutting: Strips of wood for the substructure |

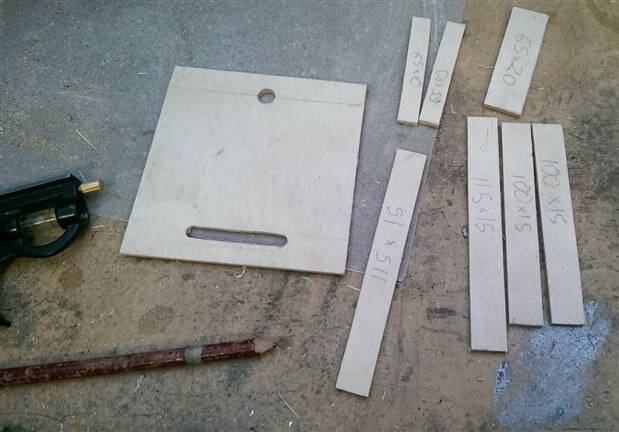

Planks: Initial pass at the frame parts |

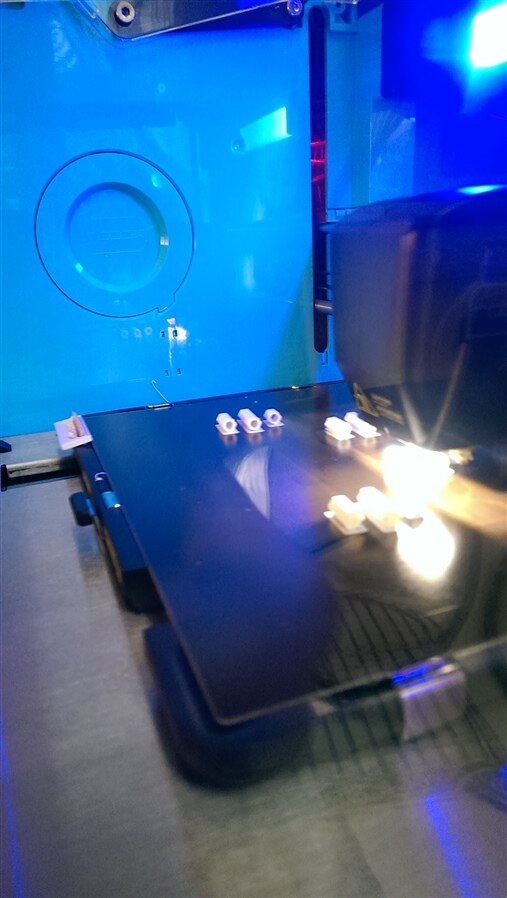

Printing: Printign the mechanism |

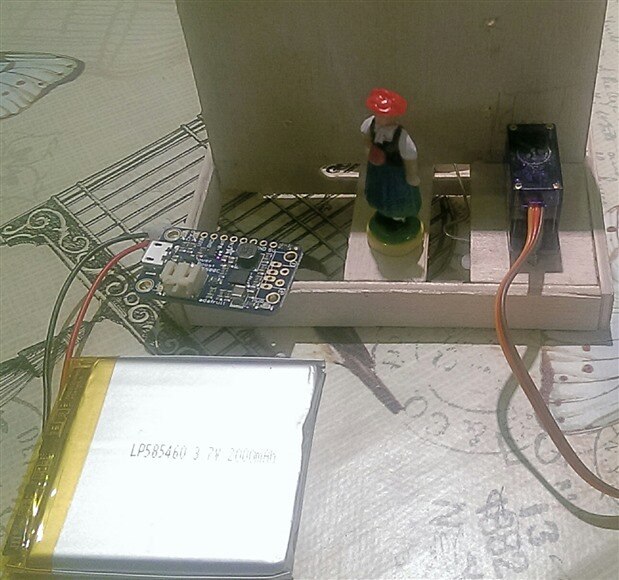

Battery Delivery: Matilda checks out the new battery |

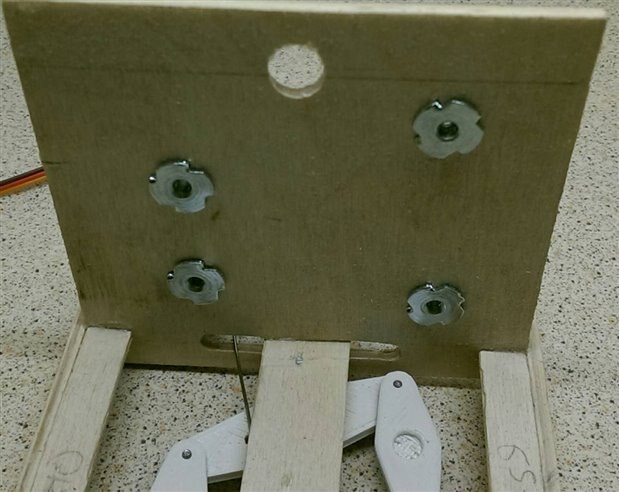

Captive Nuts: Nuts to support rods to support PCBs |

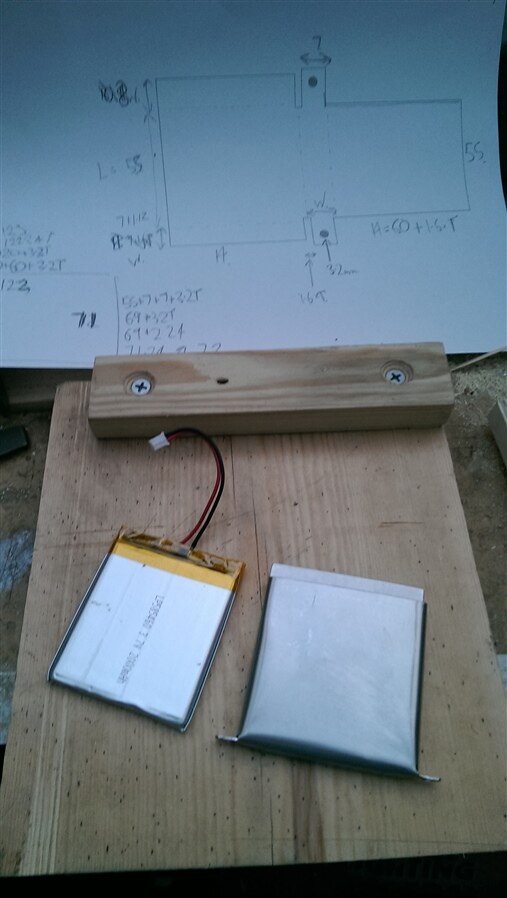

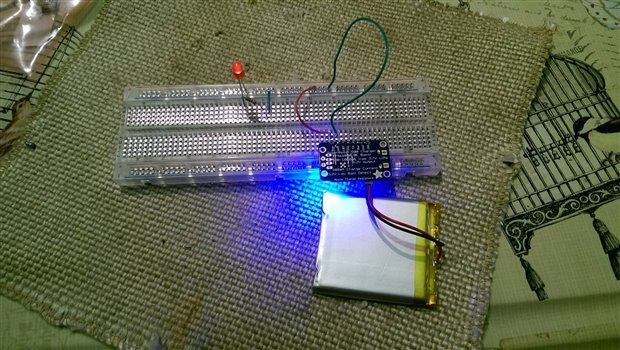

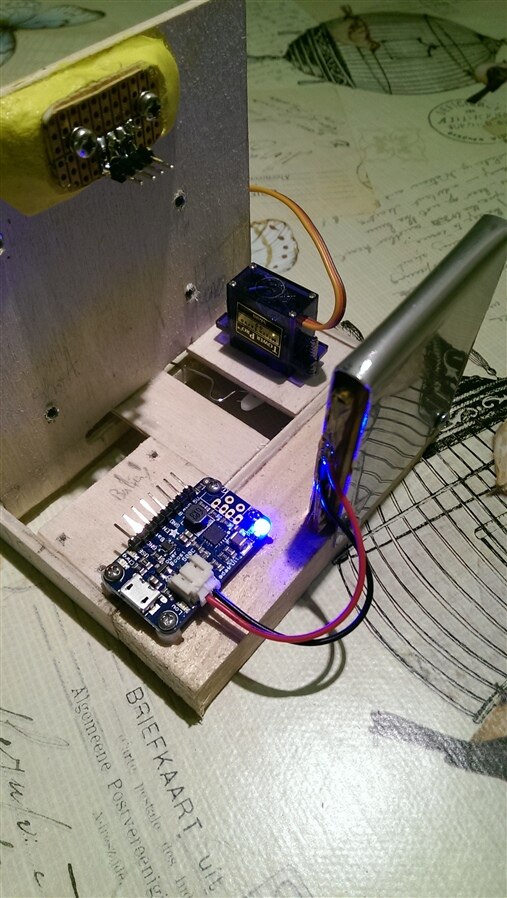

Battery Test: Testing the battery |

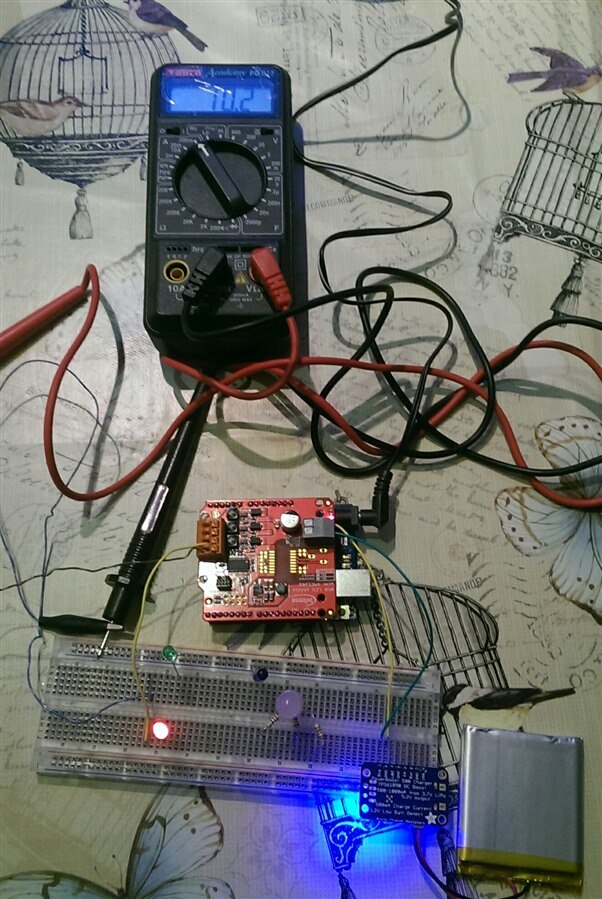

Infineon Low Power: Testing low current options with the Infineon RGB Shield |

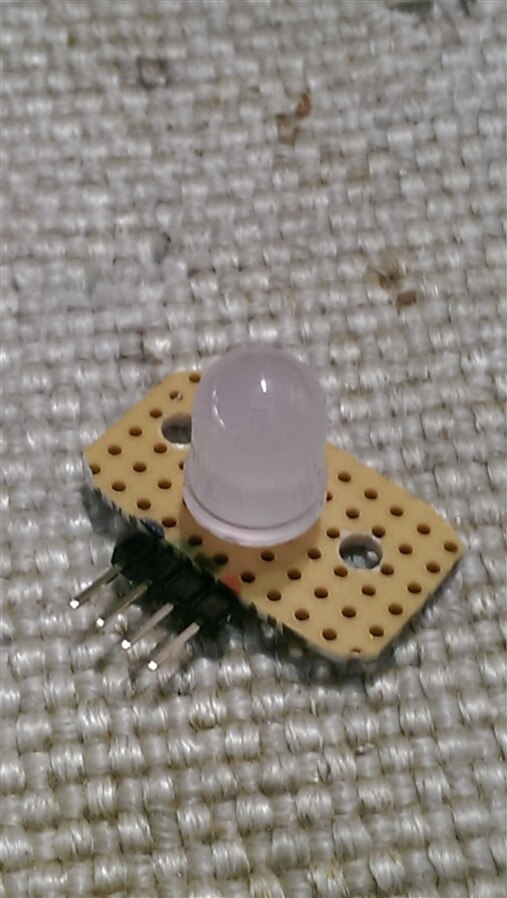

LED: A mini PCB |
Golem: Hans and Matilda's Metalworking Friend |

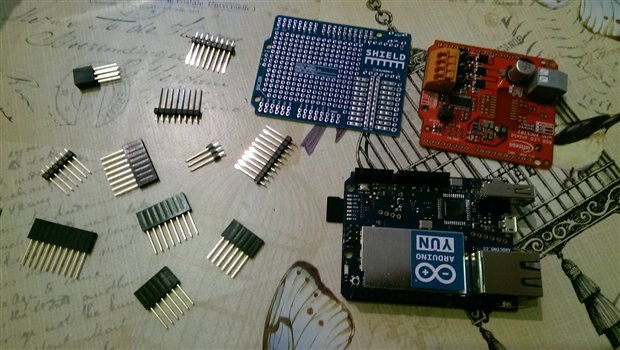

Pins: Pins and Headers |

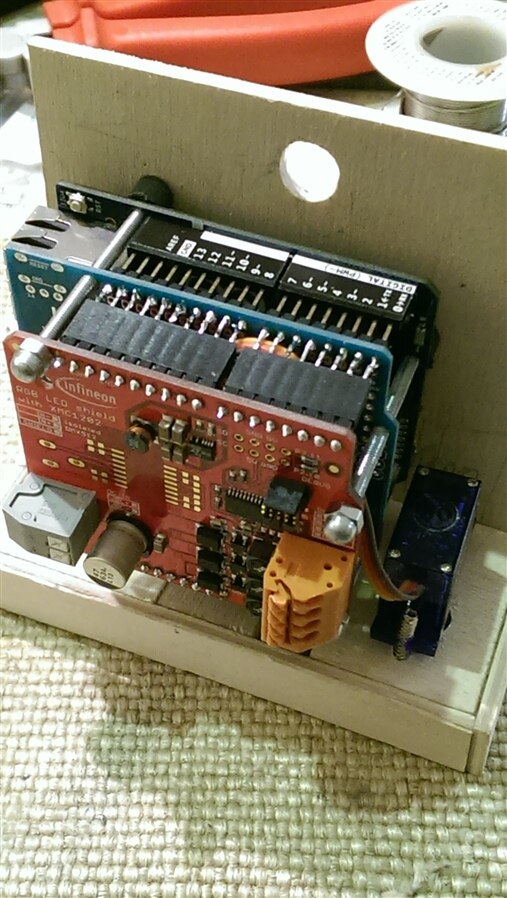

R PCB Stack: Test Fitting |

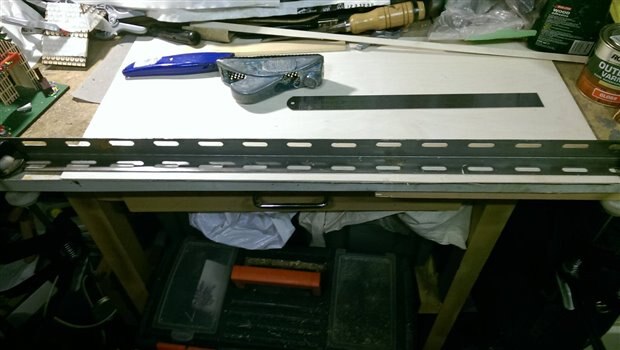

R Battery Box: Folded stainless steel |
Battery Board: Testing the board |

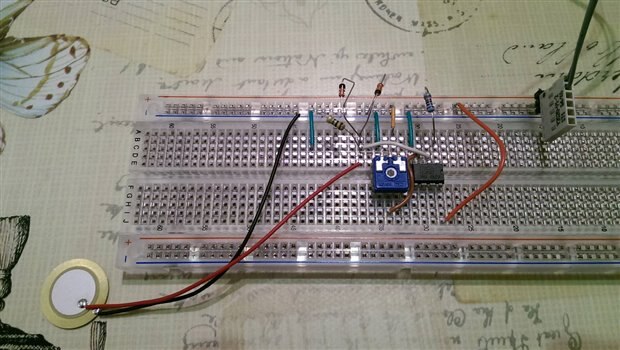

Knock Knock: Testing the sensor circuit |

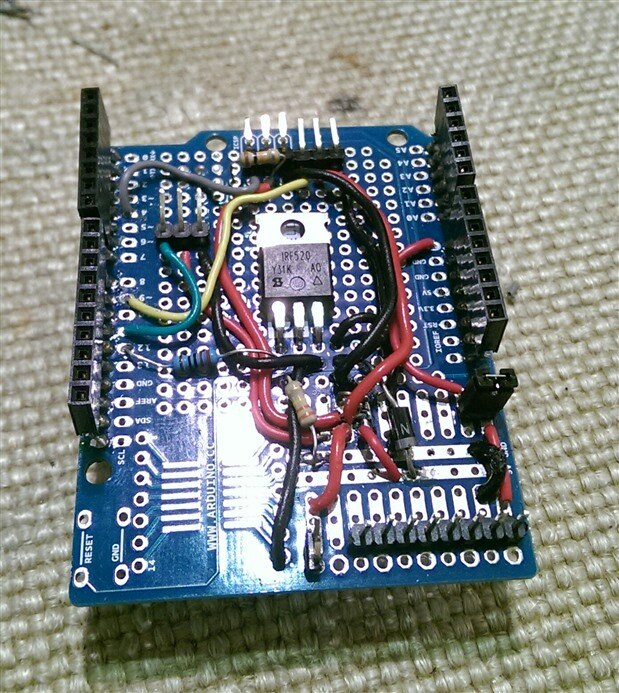

Protoshield: Surely I can fit more on it than this... |

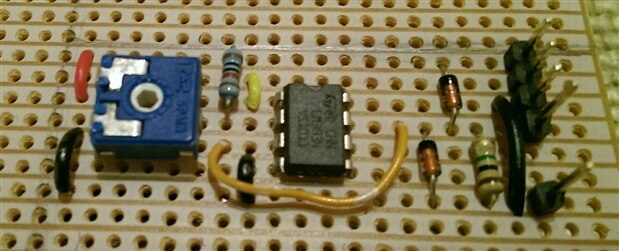

Knock Knock: Now on stripboard |

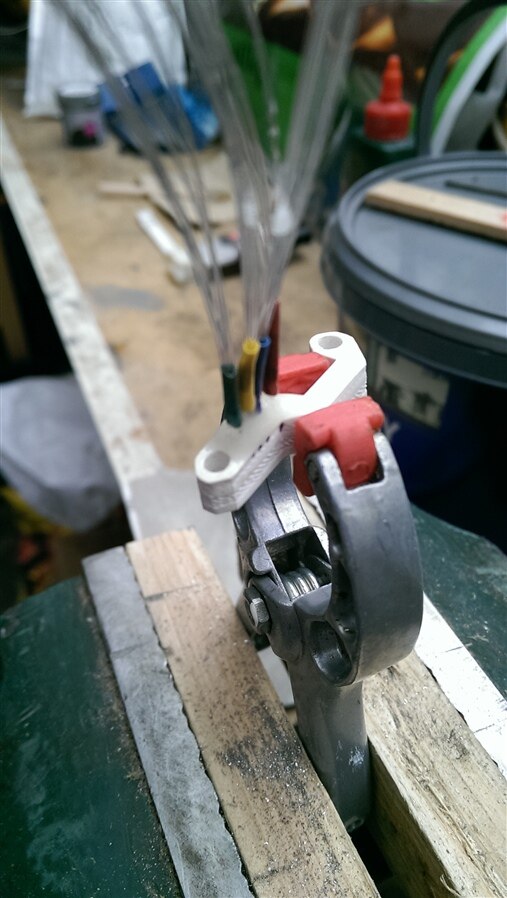

Fibre Housing: With fibres |

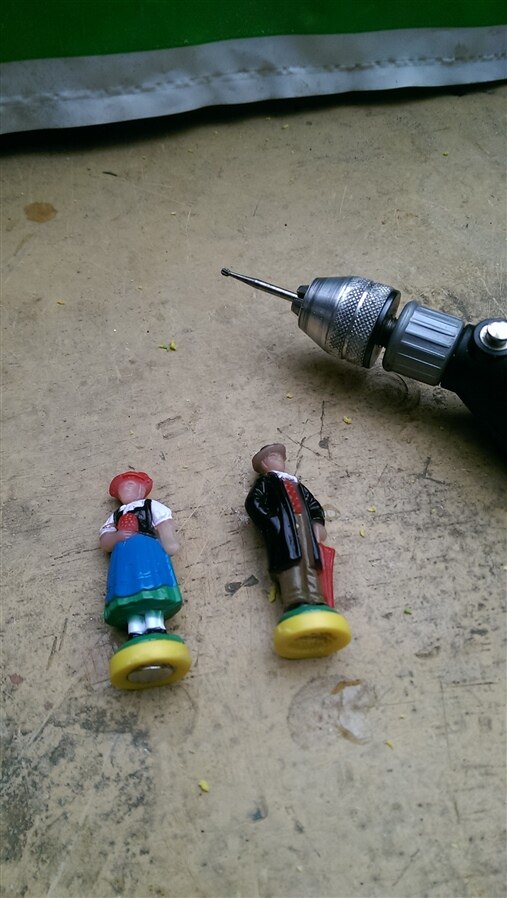

Just add magnets: Hans and Matilda get an upgrade |

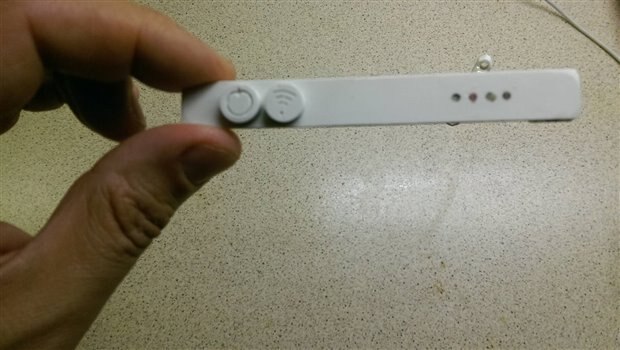

Top Panel: Buttons and lights |
Printing Supports: Attempt 6 |

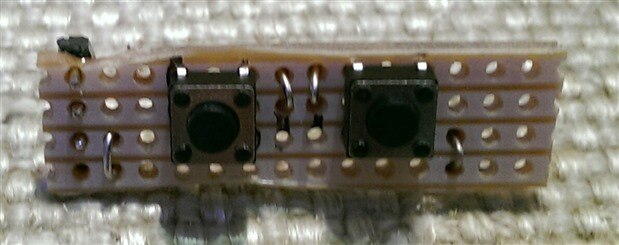

Buttons: Circuit board for the top panel |
Fail: When buttons go bad |
Magnet Holders: Hans and Matilda out up front |

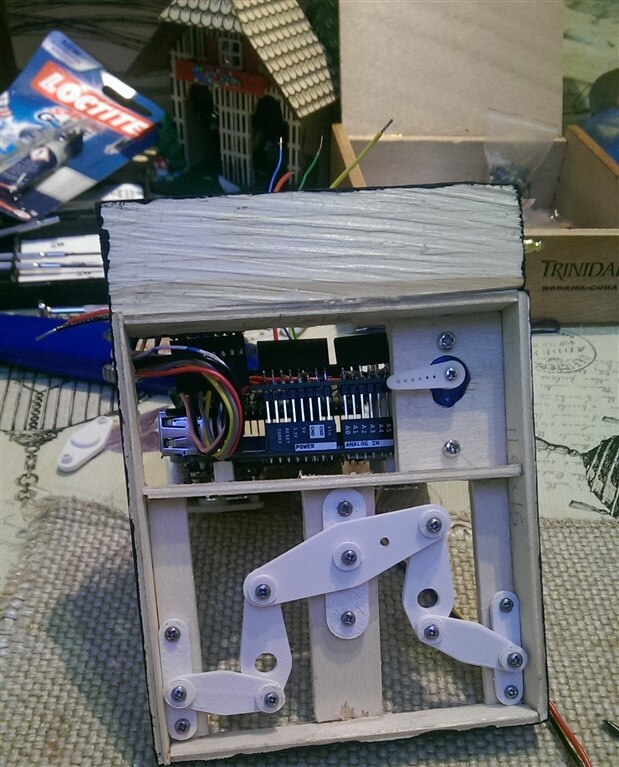

Magnet Carriers: The new mechanism |

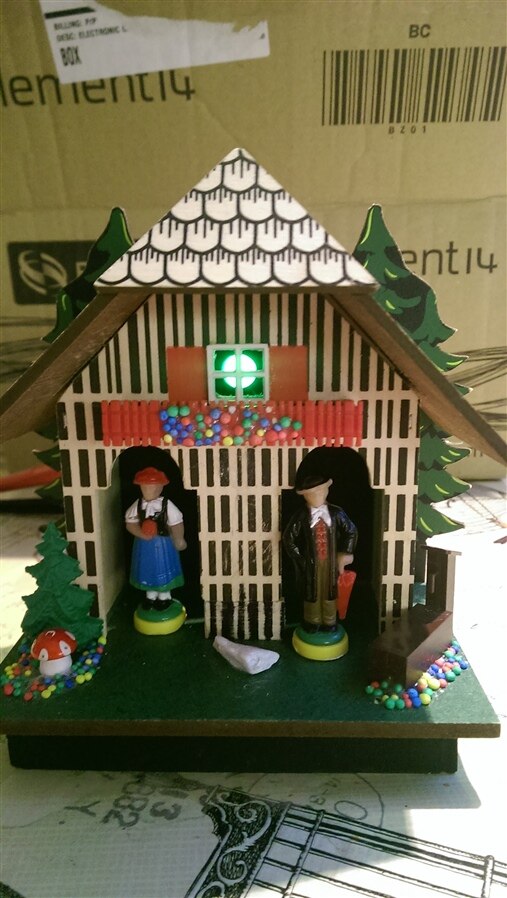

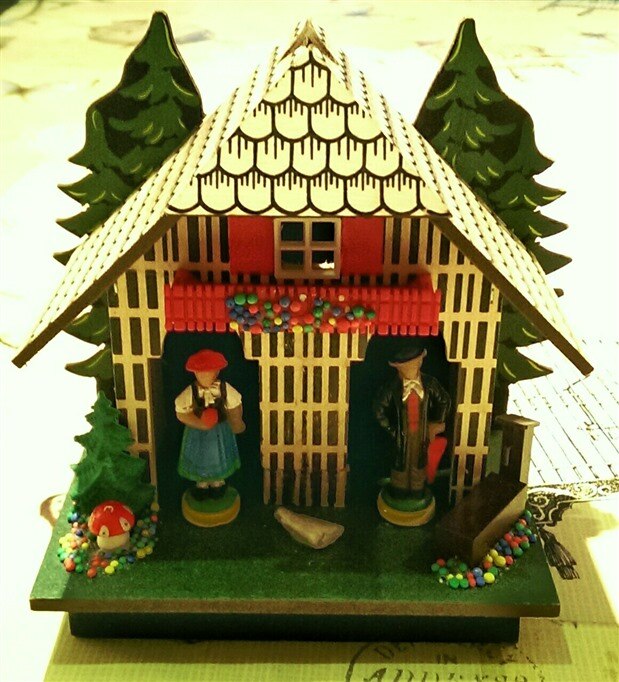

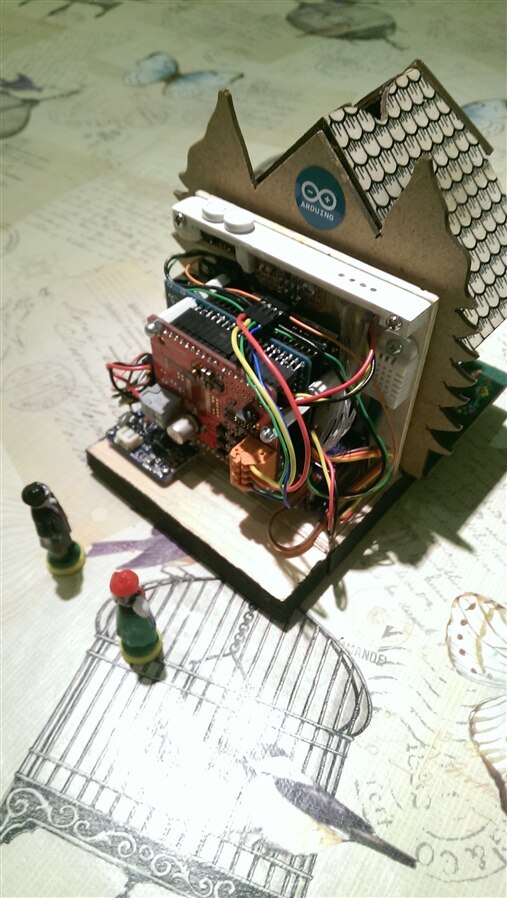

Posing: finished cottage |
Electronics: Hans and Matilda admire the finished electronics |
Weather: Warm, slight chance of rain in Chicago |
