Rotary LED Blinker
1 Introduction

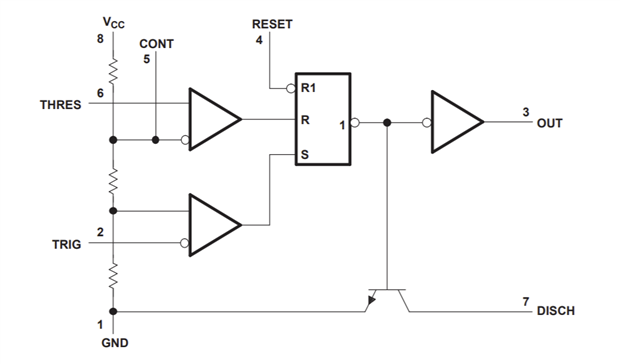

Basic digital circuit can start with 555 time
While CD4017 Decade counter can drive 10 output and it can count from 0 to 10 with internal logic

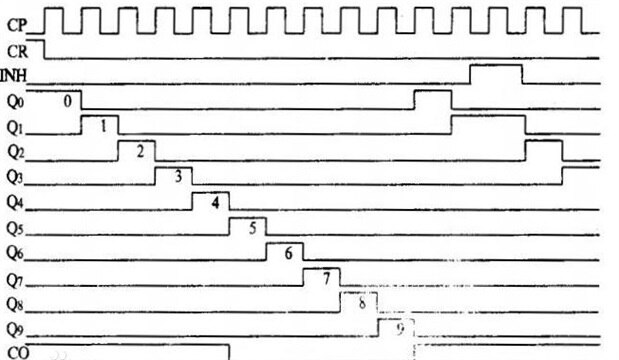

The output waveform shall be,
2 Schematic Drawing

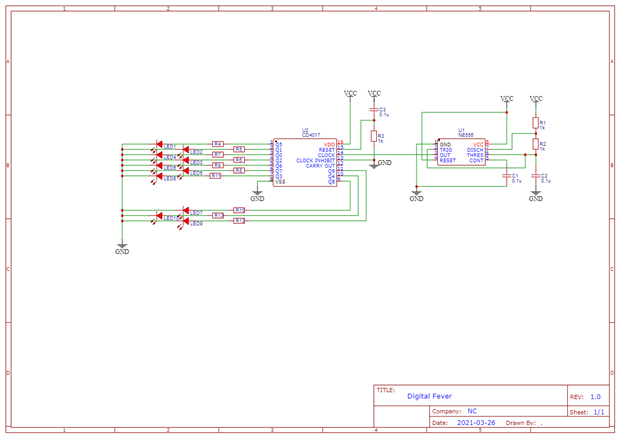

When NE555 time give timer pluse, the CD4017 can drive the LED on the ring one by one. Here is the schematic drawing.
3 PCB and Design

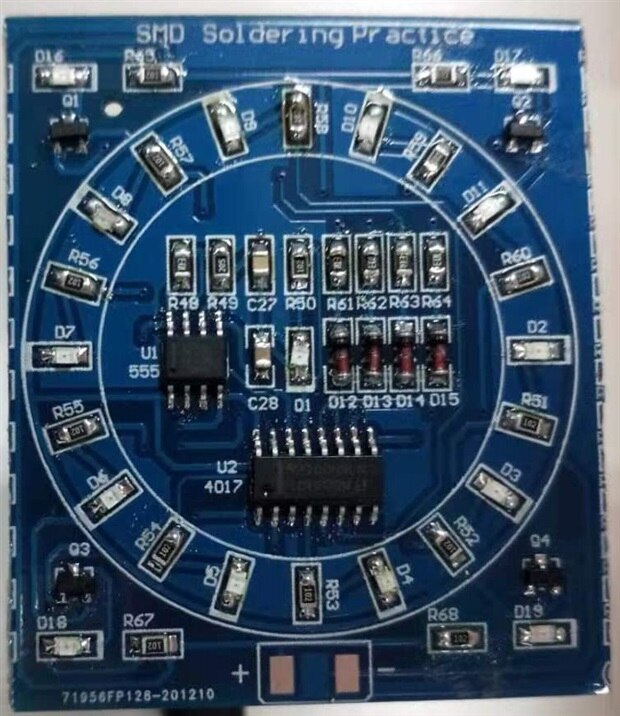

Here is the final result for the PCB and design. NE555 in SOP8 and CD4017 in SOP16
4 Summary
Q1~Q4 are thyristor to allow wider range of input voltage, this part is not show in shematics. D1 is inverted signal for D1~D10 around the ring.
This make the leds blink around the ring one by one.
