This is a Handheld Contactless IR Thermal Camera powered by a Raspberry Pi Zero W.
Images are captured by the Adafruit AMG8833AMG8833 IR Thermal Camera Breakout.
This sensor from Panasonic is an 8x8 array of IR thermal sensors.

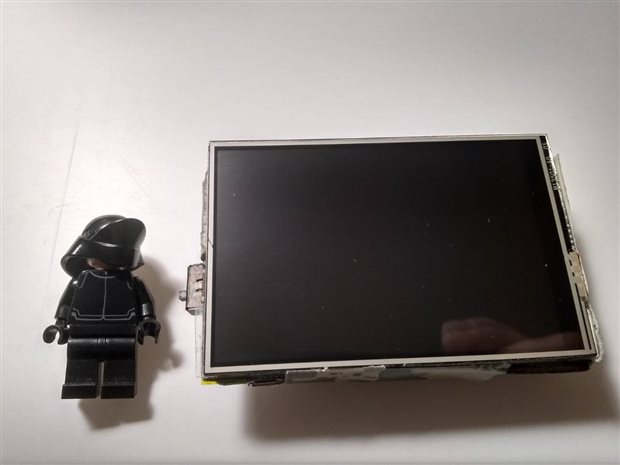

Images are displayed on an Adafruit PiTFT Plus 480x320 3.5" TFT+Touchscreen for Raspberry Pi.
Any Raspberry Pi and Adafruit PiTFT Display can be used for this project.
The Adafruit AMG8833AMG8833 IR Thermal Camera Breakout is also fully compatable with most linux SBC and microcontrollers.
For those who wish to replicate this project, in the event the Adafruit AMG8833AMG8833 breakout is not available,
the MAXREFDES131# from Maxim Integrated Products also utilizes the Panasonic AMG8833AMG8833 chip and can be used as substitute (might require some config).

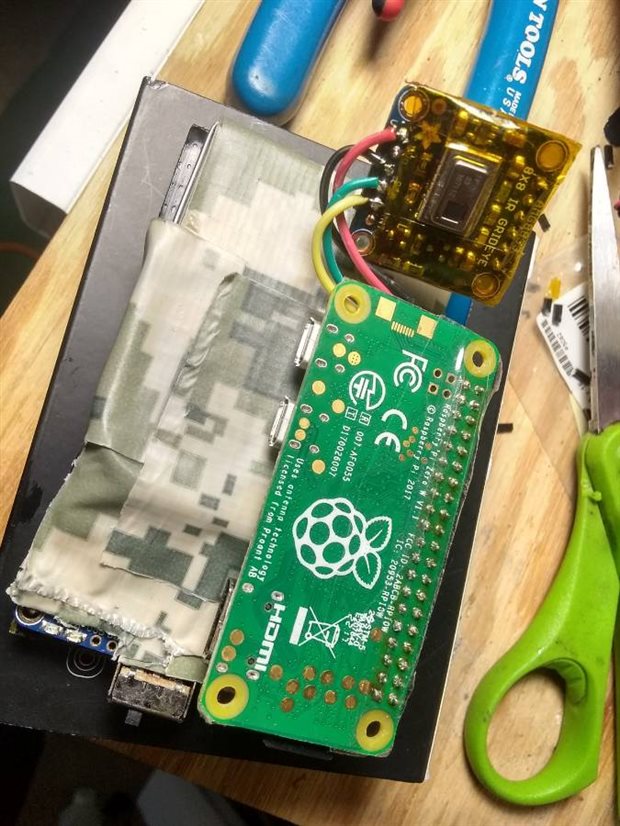

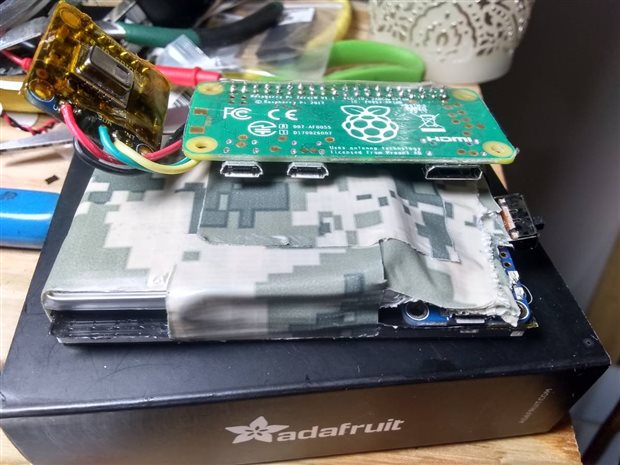

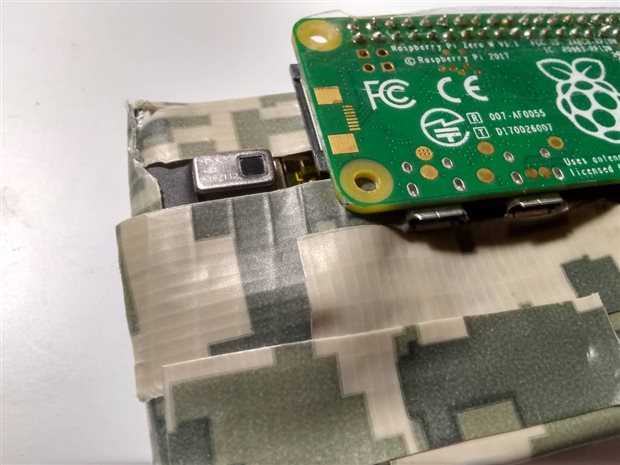

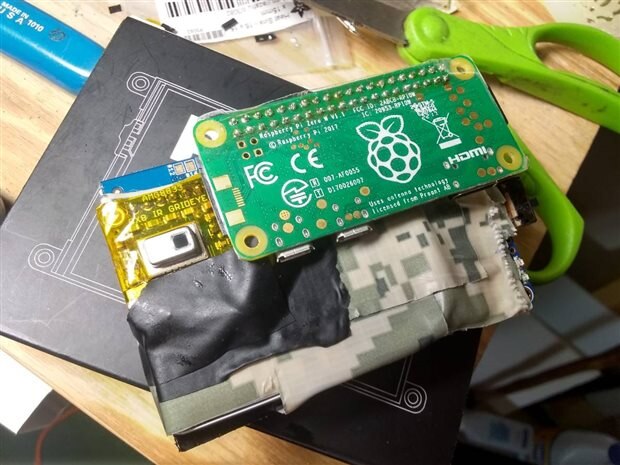

The Adafruit AMG8833AMG8833 IR Thermal Camera has been soldered to the i2c bus on the Pi Zero W
The Adafruit PowerBoost 1000c and 2500 mAh lipo battery supply power to the 5V VIN pinout on the display.

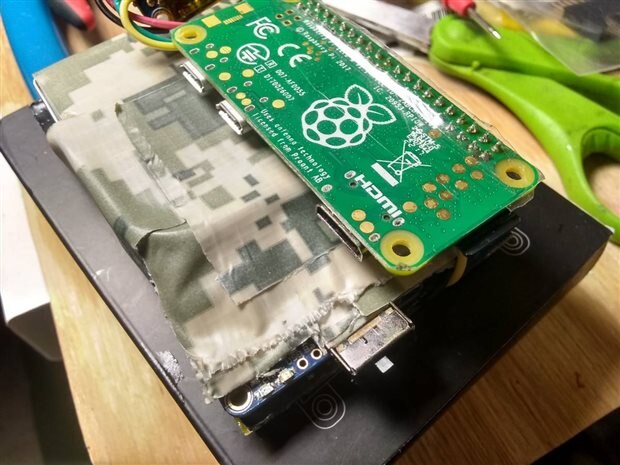

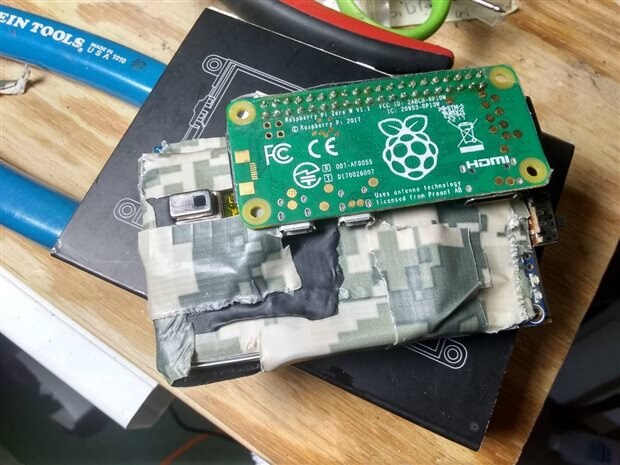

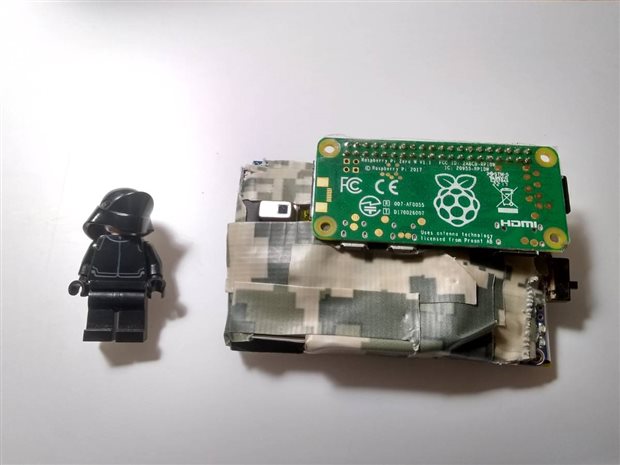

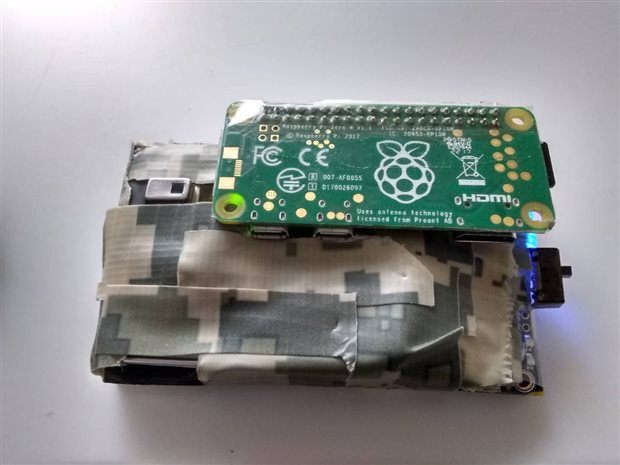

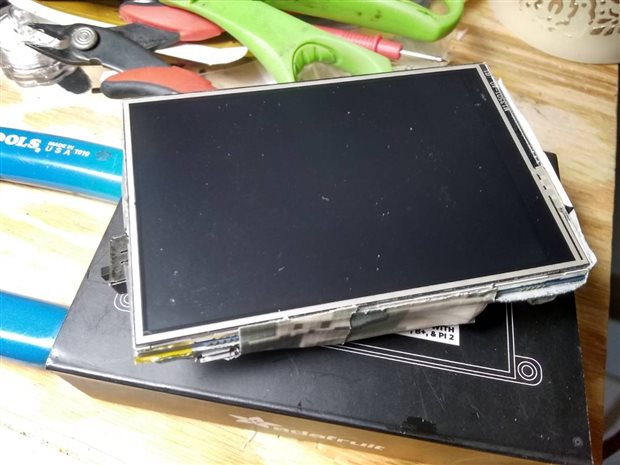

Layers of duct, electrical, and polyimide (kapton) tapes have been used to secure and insulate components.
Unfortunately I ran out of this fancy camo duck tape
DIY Credit-card sized IR Thermal Camera for under $200

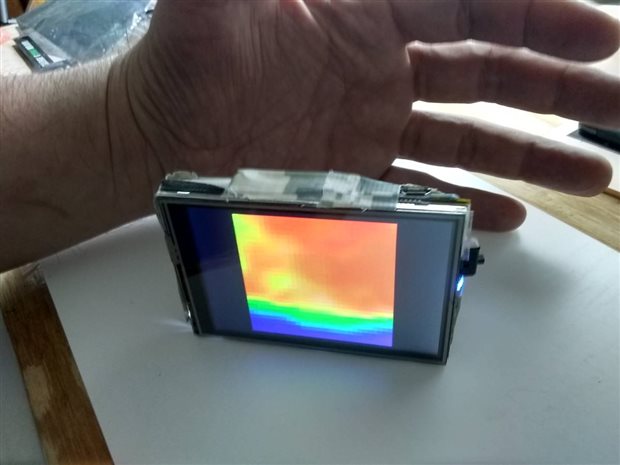

First boot.

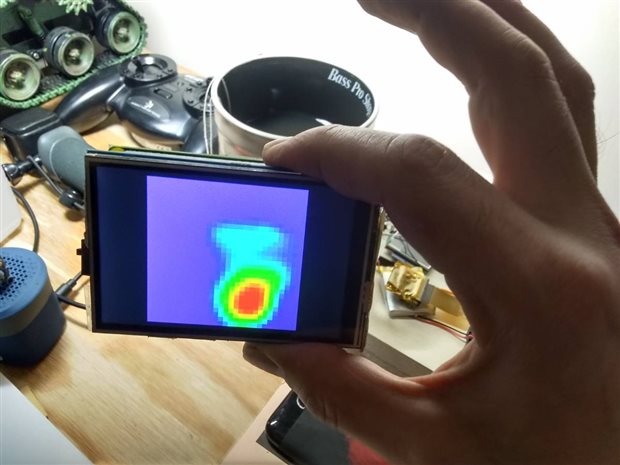

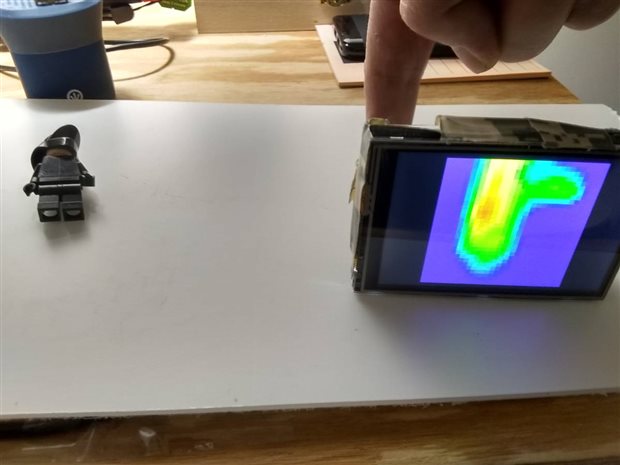

Hot cup of tea test

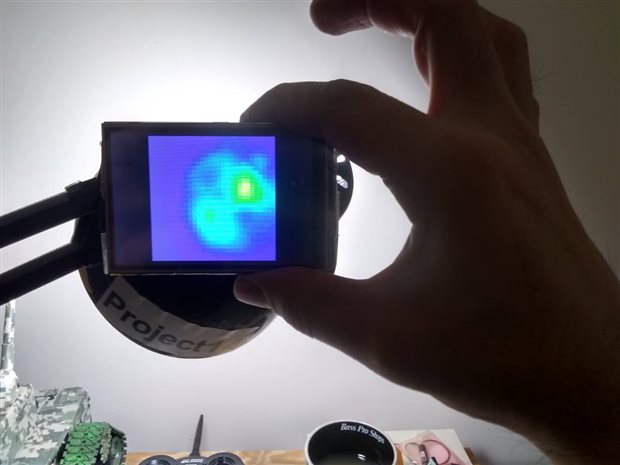

heat signature of led desk lamp
this sensor is accurate enough to detect minute fluctuations of heat. For this demo, the code is set to display any temp over 36°C (96.8°F) in red.
This would normally be set to 38°C (100.4°F) in order to detect above average body temp. Average human body temp is 37°C (98.6°F)
The following images were previously captured
SmartiPi NoIR Grid Eye Thermal Camera

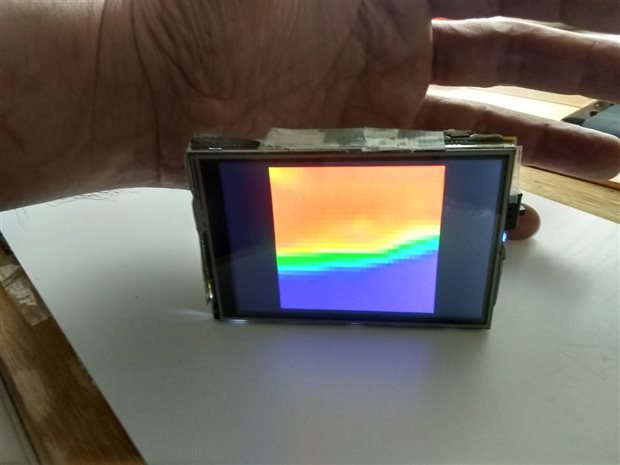

IR Thermal Selfie with shirt on. Temps displayed in red are set to 36°C (96.8°F) to simulate the results of temps of 38°C (100.4°F) or greater.
Image captured without shirt. Notice how the fabric masks some of the heat signature.
Thermal image of the Raspberry Pi 3's Quad-Core 1.2GHz BCM2837 Processor.
Parts List
https://www.newark.com/buy-raspberry-pi
Adafruit AMG8833AMG8833 IR Thermal Camera Breakout
PRODUCT ID: 3538
https://www.adafruit.com/product/3538
Raspberry Pi Zero W
PRODUCT ID: 3400
https://www.adafruit.com/product/3400
PiTFT Plus 480x320 3.5" TFT+Touchscreen for Raspberry Pi
PRODUCT ID: 2441
https://www.adafruit.com/product/2441
https://www.newark.com/adafruit/2441/pitft-plus-3-5in-touchscreen-for/dp/31AC4612
PowerBoost 1000 Charger - Rechargeable 5V Lipo USB Boost @ 1A - 1000C
PRODUCT ID: 2465
https://www.adafruit.com/product/2465
https://www.newark.com/adafruit/2465/powerboost-1000-lipo-charger-5v/dp/98Y0120
Lithium Ion Polymer Battery - 3.7v 2500mAh
PRODUCT ID: 328
https://www.adafruit.com/product/328
Instructions and Code provided by Adafruit
https://learn.adafruit.com/adafruit-pitft-3-dot-5-touch-screen-for-raspberry-pi
https://learn.adafruit.com/circuitpython-on-raspberrypi-linux
https://learn.adafruit.com/adafruit-amg8833-8x8-thermal-camera-sensor
https://learn.adafruit.com/adafruit-amg8833-8x8-thermal-camera-sensor/python-circuitpython
Thank you for viewing this project
Sincerely,
Trent
